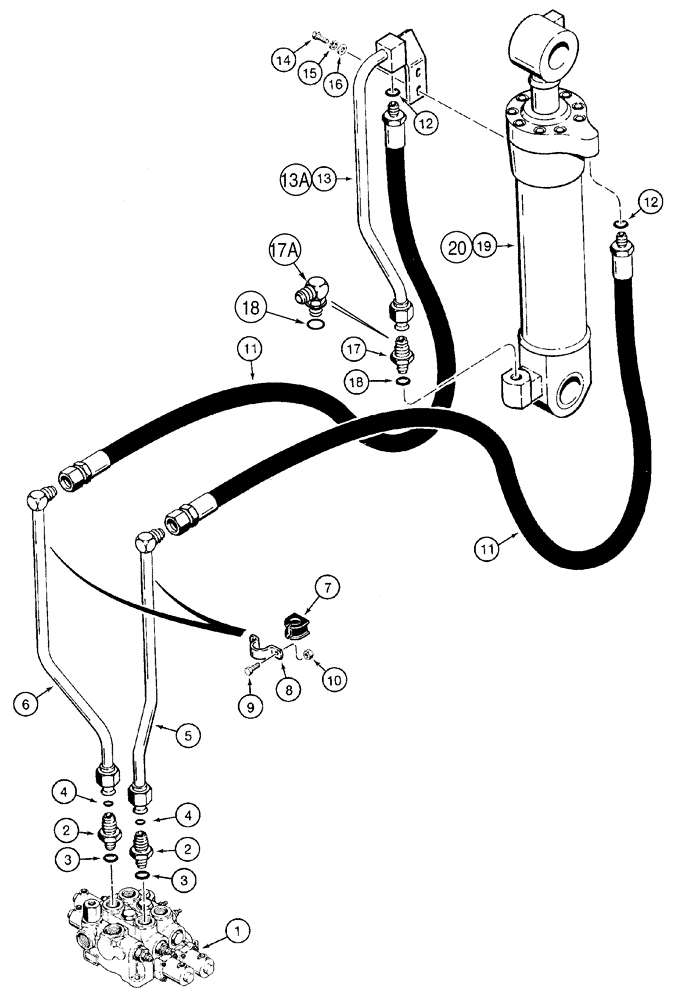

Запчасти Case 621C (08-032) - HYDRAULICS - LOADER BUCKET, LOADER BUCKET, Z-BAR AND XR LOADERS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, loader, See figure 8-13

1шт.

2

L124290

CONNECTOR, ELEC

CONNECTOR ADAPTER, Includes: Refs. 3 and 4

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

4

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

Face Seal End

1шт.

5

L118810

TUBE,31.75 mm OD

rod end

1шт.

6

329453A1

TUBE,31.75 mm OD, 812, 222 mm Length

closed end

1шт.

7

D67298

INSULATOR

2шт.

8

L124293

MOUNTING CLIP

CLAMP

2шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

10

231-1446

NUT,3/8" - 16, Gr 5

4шт.

11

L124255

HOSE ASSY.,25.4mm ID x 1125mm L, SAE 100R12

44-3/8 in, (1125 mm), Includes: Ref. 12

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

L118694

PIPE,31.75 mm OD

TUBE, used with Ref. 19

1шт.

13a

356810A1

TUBE

TUBE, used with Ref. 20

1шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

16

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

2шт.

17

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER, Includes: Ref. 18, Used with Ref. 19

1шт.

17a

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 18, Used with Ref. 20

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

1343552C2

CYLINDER ASSY.

152 ID x 544 mm strk, bucket cylinder, Z-Bar loader, See figure 8-123, no longer available, Order: P/N 339921A1

1шт.

19a

125872A1

CYLINDER ASSY.

152 ID x 544 mm strk, bucket cylinder, XR loader, See figure 8-127, not illustrated

1шт.

20

339921A1

CYLINDER ASSY.

152 ID x 544 mm strk, bucket cylinder, Z-Bar loader, See figure 8-123, Replaces: P/N 1343552C2

1шт.
