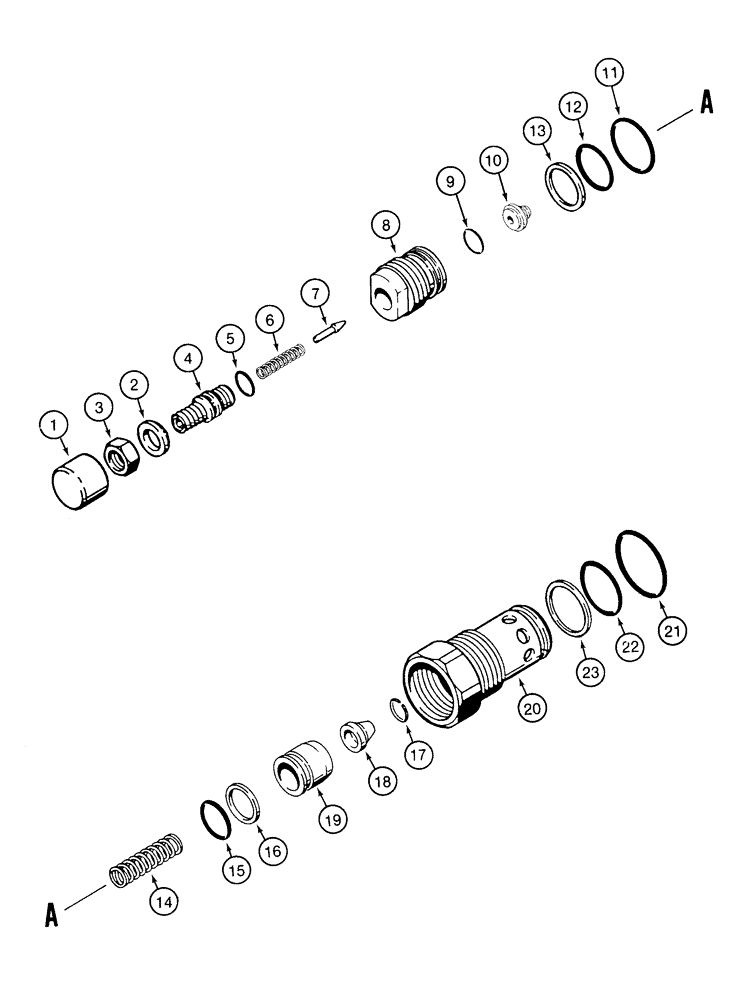

Запчасти Case 621C (08-032[A]) - VALVE ASSY RELIEF, CIRCUIT (08) - HYDRAULICS

1978297C2

VALVE

circuit relief, Consists of: Refs. 1-23, no longer used, Order: P/N 121005A1

1шт.

121005A1

VALVE

circuit relief, Consists of: Refs. 1-23, Replaces: P/N 1978297C2

1шт.

1

NSS

NOT SOLD SEPARAT

COVER

1шт.

2

1978295C1

WASHER

1шт.

3

329-156

JAM NUT,Jam, 3/8"-24, G8

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING

1шт.

7

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

8

NSS

NOT SOLD SEPARAT

BODY, Includes: 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

RING

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

RING

1шт.

17

NSS

NOT SOLD SEPARAT

RING

1шт.

18

NSS

NOT SOLD SEPARAT

SCREEN

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET valve

1шт.

20

NSS

NOT SOLD SEPARAT

BODY

1шт.

21

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

22

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

23

1978265C1

BACK-UP RING

1шт.

1986635C1

SEAL KIT

SEAL, Includes: Refs. 5, 9, 11-13, 15, 16, 21-23

1шт.
