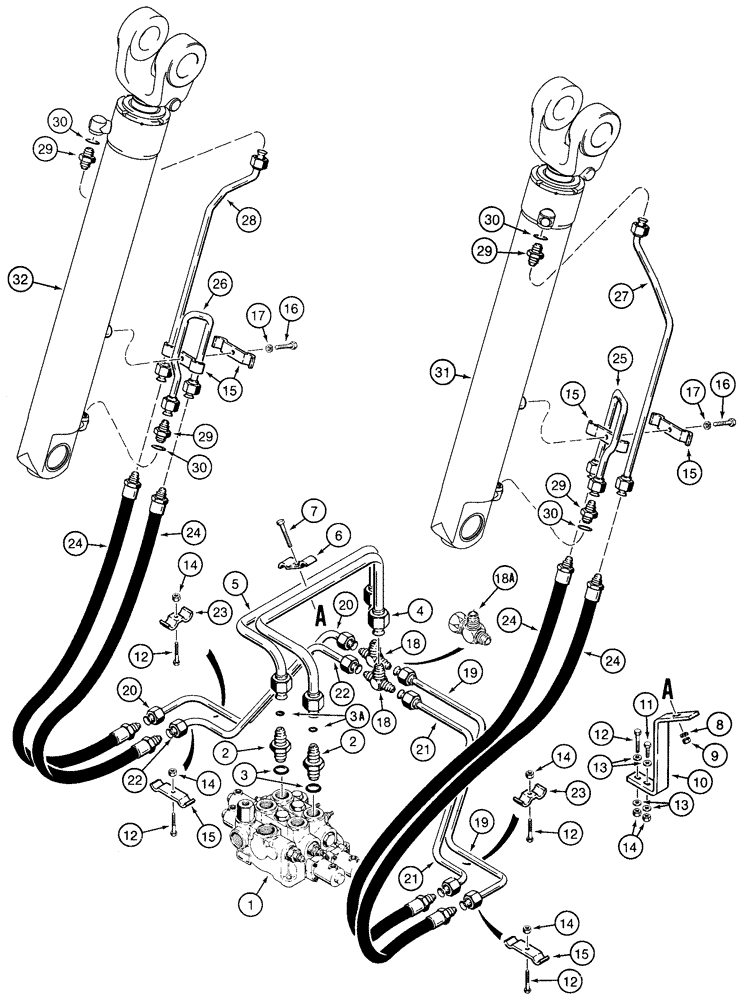

Запчасти Case 621C (08-026) - HYDRAULICS - LOADER LIFT, LOADER LIFT, Z-BAR, XR AND XT LOADERS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, loader, See figures 8-13, 8-17

1шт.

2

L124291

FITTING

ADAPTER valve to lift tubes, Includes: Ref. 3 and 3A

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

3a

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Face Seal End

1шт.

4

L118618

PIPE,25.4 mm OD

TUBE supply, right hand

1шт.

5

L118616

PIPE

TUBE supply, left hand

1шт.

6

L124257

CLAMP

1шт.

7

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

1шт.

8

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

1шт.

10

L119010

SUPPORT

1шт.

11

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

1шт.

12

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

5шт.

13

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

14

231-1446

NUT,3/8" - 16, Gr 5

6шт.

15

L119234

CLAMP

CLAMP

6шт.

16

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

218-606

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Br

2шт.

18a

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adj., Models with ride control

2шт.

19

L118620

PIPE,19.04 mm OD

TUBE lift cylinder, right hand, rod end

1шт.

19a

132798A1

TUBE

Lift cylinder, right hand, rod end, models with ride control, not illustrated

1шт.

20

L118622

PIPE,19.04 mm OD x 431, 407 mm L

TUBE left hand, rod end

1шт.

21

L118624

PIPE,19.04 mm OD

TUBE right hand, closed end

1шт.

21a

132796A1

TUBE

right hand, closed end, models with ride control, not illustrated

1шт.

22

L118626

PIPE,19.04 mm OD

TUBE left hand, closed end

1шт.

23

R15257

CLAMP

2шт.

24

L124240

HOSE,19.1mm ID x 1100mm L, SAE 100R12

43-3/8 in, (1100 mm)

4шт.

25

L118686

PIPE,19.04 mm OD

TUBE right hand, closed end

1шт.

26

L118684

PIPE,19.04 mm OD

TUBE left hand, closed end

1шт.

27

280905A1

TUBE,805, 187 mm Length

TUBE right hand, rod end

1шт.

28

280904A1

TUBE,805, 187 mm Length

TUBE left hand, rod end

1шт.

29

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Incl. Ref 30

4шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

280706A1

CYLINDER ASSY.

127 ID x 834 mm strk, lift cylinder, right hand, See figure 8-119

1шт.

32

280707A1

CYLINDER ASSY.

127 IDx834 mm strk, lift cylinder, left hand, See figure 8-119

1шт.
