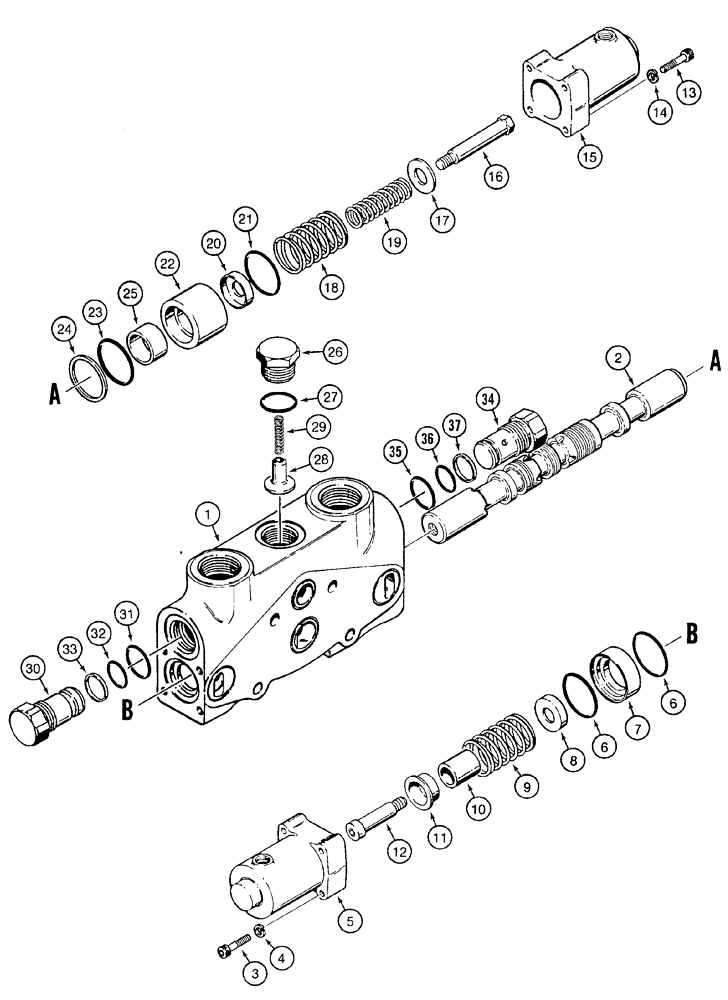

Запчасти Case 621C (08-025) - VALVE SECTION LOADER LIFT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
190298A1
HYD VALVE SECTION
lift, Consists of: 1-37
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
1978303C1
SET
KIT positioner, float, three position, Includes: Ref. 3 - 12
1шт.
3
326-432
BOLT,Hex, 1/4" - 20 x 2", Gr 8
4шт.
4
192-402
LOCK WASHER
1/4
4шт.
5
NSS
NOT SOLD SEPARAT
CAP
1шт.
6
238-5128
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
2шт.
7
NSS
NOT SOLD SEPARAT
SPACER
1шт.
8
NSS
NOT SOLD SEPARAT
RETAINER
1шт.
9
NSS
NOT SOLD SEPARAT
SPRING
1шт.
10
NSS
NOT SOLD SEPARAT
SLIDE
1шт.
11
NSS
NOT SOLD SEPARAT
SEAT
1шт.
12
NSS
NOT SOLD SEPARAT
BOLT
1шт.
1978310C1
SET
KIT positioner, float, regeneration, Includes: Refs. 13 - 25
1шт.
13
NSS
NOT SOLD SEPARAT
SCREW
4шт.
14
192-402
LOCK WASHER
1/4
4шт.
15
NSS
NOT SOLD SEPARAT
CAP
1шт.
16
NSS
NOT SOLD SEPARAT
BOLT
1шт.
17
NSS
NOT SOLD SEPARAT
SPACER
1шт.
18
NSS
NOT SOLD SEPARAT
SPRING
1шт.
19
NSS
NOT SOLD SEPARAT
SPRING
1шт.
20
NSS
NOT SOLD SEPARAT
SPACER
1шт.
21
238-5128
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
1шт.
22
NSS
NOT SOLD SEPARAT
SPACER
1шт.
23
238-5128
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
1шт.
24
NSS
NOT SOLD SEPARAT
SPACER
1шт.
25
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
102204A1
SET
KIT plug, load check, Includes: Refs. 26 - 29
1шт.
26
NSS
NOT SOLD SEPARAT
PLUG
1шт.
27
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
1шт.
28
NSS
NOT SOLD SEPARAT
POPPET valve
1шт.
29
NSS
NOT SOLD SEPARAT
SPRING
1шт.
1978318C1
PLUG
ASSY., no relief, Includes: Ref. 30 - 33
1шт.
30
NSS
NOT SOLD SEPARAT
PLUG
1шт.
31
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
1шт.
32
238-5021
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
1шт.
33
1978299C1
BACK-UP RING
RING backup
1шт.
125846A1
VALVE
anticavitation, Includes: Refs. 34 - 37
1шт.
34
NSS
NOT SOLD SEPARAT
VALVE check, component parts not serviced separately
1шт.
35
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
1шт.
36
238-5021
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
1шт.
37
1978299C1
BACK-UP RING
RING backup
1шт.
Выбрано товаров: 43
