Запчасти Case 621C (08-023) - VALVE SECTION INLET AND OUTLET (08) - HYDRAULICS

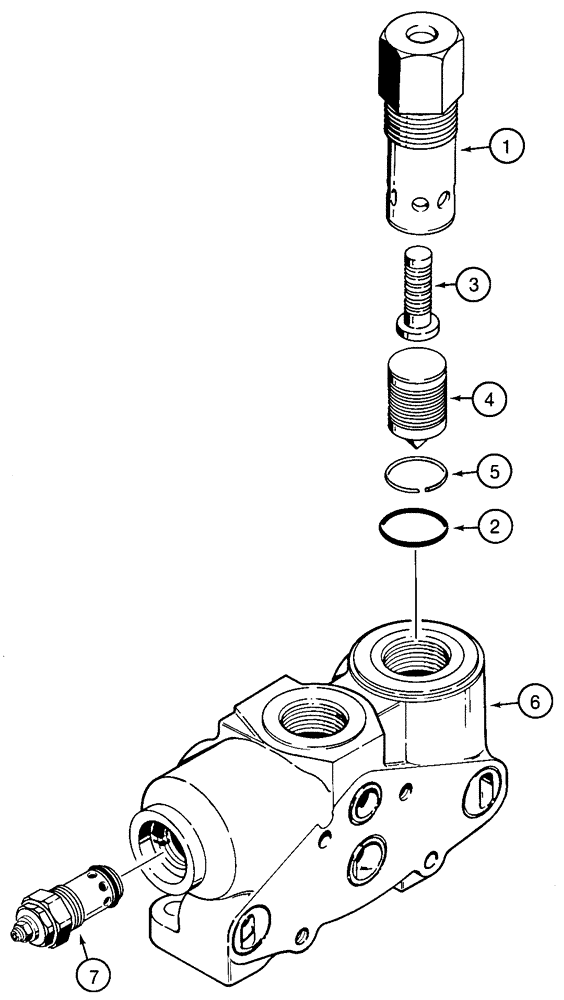

Схема запчастей Case 621C - (08-023) - VALVE SECTION INLET AND OUTLET (08) - HYDRAULICS
3
2
7
5
6
1
4

Артикул

Название

Примечание

Количество

1978263C1

VALVE

SECTION inlet and outlet, Consists of: Refs. 1 - 7

1шт.

1978274C1

GOVERNOR

low pressure regeneration, Includes: Refs. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE pressure

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

7

102210A1

VALVE

relief, with flat screen on poppet, See figure 8-113, see your service manual for proper pressure setting

1шт.

Выбрано товаров: 9
