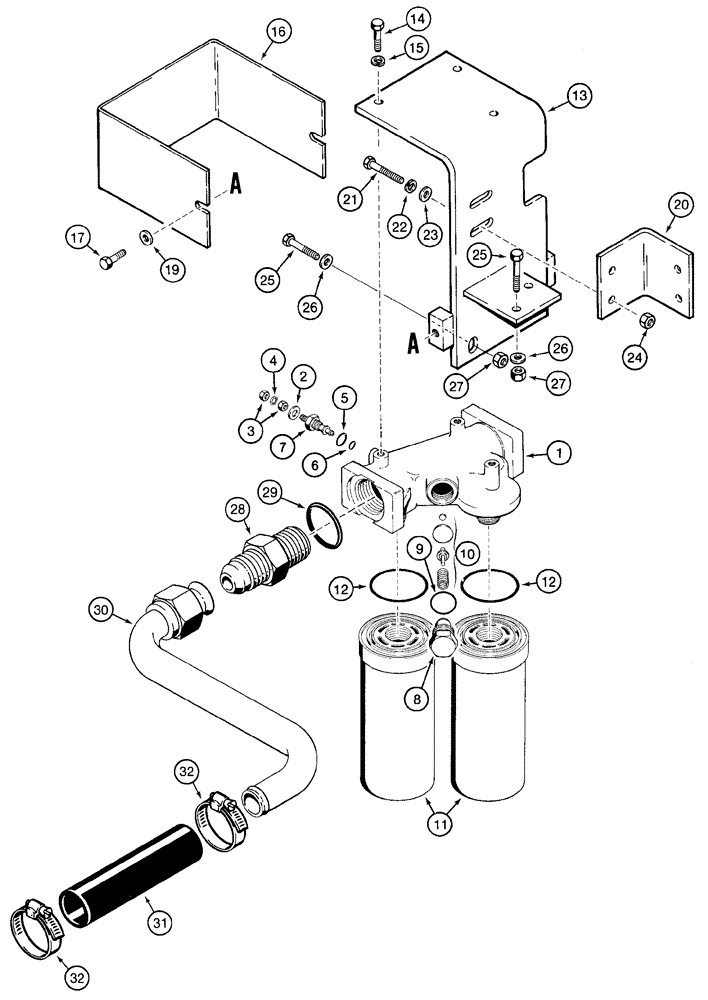

Запчасти Case 621C (08-022) - HYDRAULICS - FILTER TO RESERVOIR, OIL FILTER TO HYDRAULIC RESERVOIR (08) - HYDRAULICS

L126373

FILTER ASSY

Consists of: 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD

1шт.

N13268

PRESSURE SWITCH

ASSY., restriction, Includes: Refs. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER, red, white

1шт.

3

129-667

NUT,#10-32, LH

2шт.

4

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Indicator, Order: P/N N13268

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG, bypass valve

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE by pass, Order: P/N L126373

1шт.

N9025

HYDRAULIC OIL FILTER

Includes: Ref. 11, 12

2шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT, Order: P/N N9025

1шт.

12

N9026

O-RING

1шт.

13

L126230

BRACKET

1шт.

14

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

3шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

16

L126231

PROTECTOR

GUARD

1шт.

17

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

2шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

20

L126213

SUPPORT

BRACKET, return tube, See Refs. 26, 29, 30, 31, See figures 8-15, 8-21

1шт.

21

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

22

892-11010

LOCK WASHER,M10

2шт.

23

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

25

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

No longer used, Order P/N 827-12045

3шт.

25

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

Replaces: P/N 827-12050

3шт.

26

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, hardened

3шт.

27

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

28

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER filter to return tube, 1-7/8 fl x or, Includes: Ref. 29

1шт.

29

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

30

L126401

PIPE,38.09 mm OD x 373, 262 mm L

TUBE filter to hydraulic reservoir

1шт.

31

L127301

HOSE,38.1 mm ID x 230.00 mm

1шт.

32

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

4шт.
