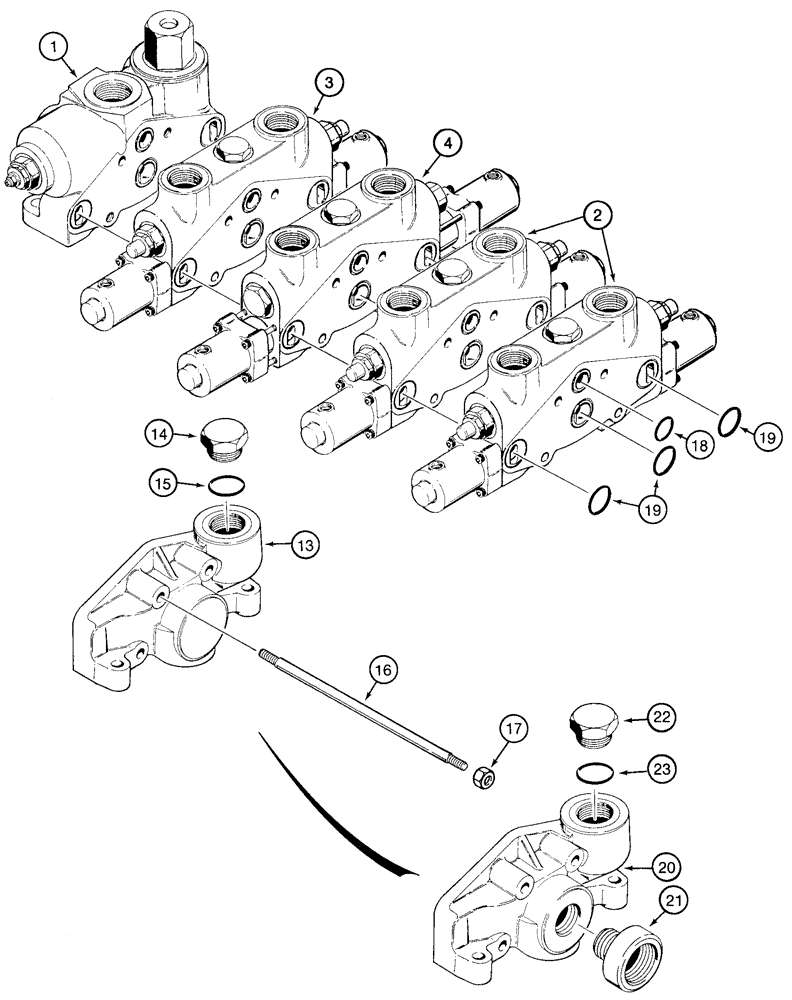

Запчасти Case 621C (08-016[C]) - VALVE ASSY, LOADER CONTRL,4 SPOOL, XT LOADER,N A ONLY, VALVE ASSY:138755A1, POWER BEYOND KIT (08) - HYDRAULICS

138755A1

VALVE

control, four spool, Consists of: 1-19

1шт.

1

1978263C1

VALVE

SECTION inlet and outlet, See figure 8-91

1шт.

2

1978280C1

SECTOR

SECTIONauxiliary, See figure 8-109

2шт.

3

120984A1

SECTOR

SECTION bucket, See figure 8-105

1шт.

4

190298A1

HYD VALVE SECTION

SECTION lift, See figure 8-97

1шт.

13

1978278C1

SECTOR

PLATE end cover, Includes: Refs. 14 and 15

1шт.

14

86512512

PLUG,7/8" - 14 ORB

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

189911A1

TRUSS ROD

STUD

4шт.

17

425-107

NUT,7/16"-14, G5

4шт.

120989A1

SEAL KIT

SEAL, Includes: Refs.18 and 19, between sections

1шт.

18

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

5шт.

19

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

15шт.

L36348

KIT

power beyond, Includes: Refs. 20 - 23

1шт.

20

S301432

COVER

outlet

1шт.

21

S301433

SLEEVE

1шт.

22

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
