Запчасти Case 621C (08-016[A]) - VALVE ASSY, LOADER CONTROL, 2 SPOOL, ,XT LOADER, N. A. ONLY,VALVE ASSY:138753A1, POWER BEYOND KIT (08) - HYDRAULICS

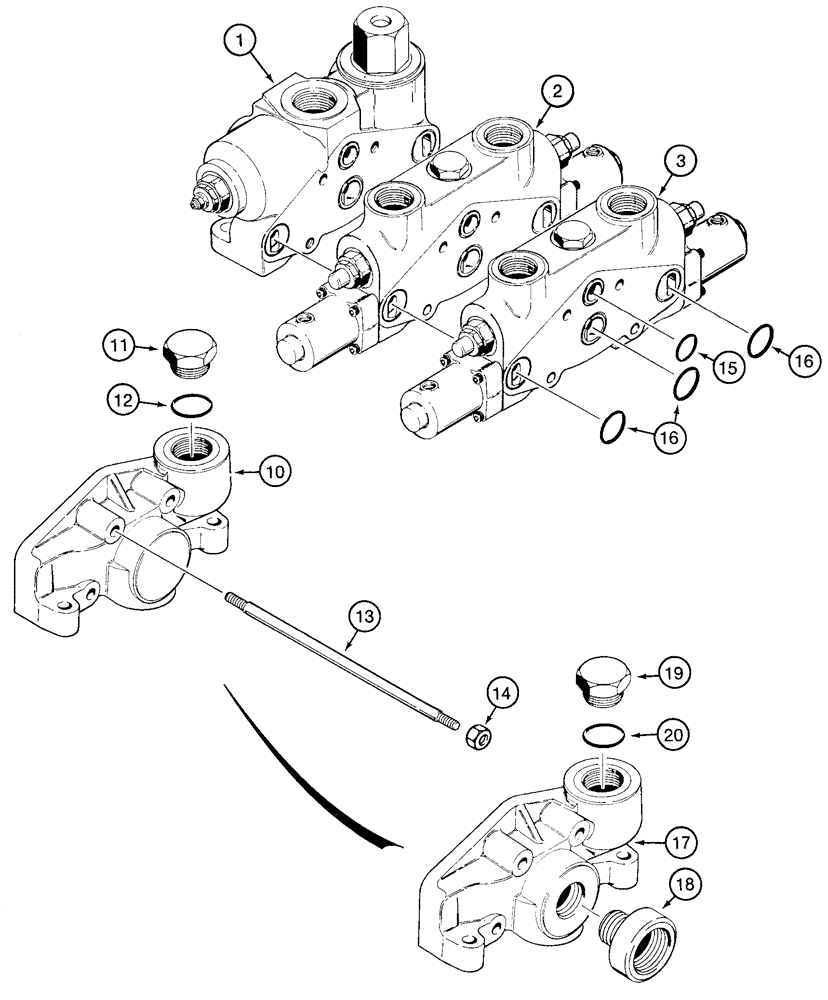

Схема запчастей Case 621C - (08-016[A]) - VALVE ASSY, LOADER CONTROL, 2 SPOOL, ,XT LOADER, N. A. ONLY,VALVE ASSY:138753A1, POWER BEYOND KIT (08) - HYDRAULICS
20
2
16
1
14
13
10
15
18
3
16
17
19
12
11

Артикул

Название

Примечание

Количество

138753A1

VALVE

control, two spool, Consists of: Refs. 1-16

1шт.

1

1978263C1

VALVE

SECTION inlet and outlet, See figure 8-91

1шт.

2

120984A1

SECTOR

SECTION bucket, See figure 8-105

1шт.

3

190298A1

HYD VALVE SECTION

lift, See figure 8-97

1шт.

10

1978278C1

SECTOR

PLATE end cover, Includes: Refs. 11, 12

1шт.

11

86512512

PLUG,7/8" - 14 ORB

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

189895A1

STUD

4шт.

14

425-107

NUT,7/16"-14, G5

4шт.

120987A1

SEAL KIT

SEAL, Includes: Refs. 15 and 16, between sections

1шт.

15

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

3шт.

16

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

9шт.

L36348

KIT

power beyond, Includes: Refs. 17 - 20

1шт.

17

S301432

COVER

outlet

1шт.

18

S301433

SLEEVE

1шт.

19

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Выбрано товаров: 17
