Запчасти Case 621C (08-012) - HYDRAULICS - LOADER VALVE TO FILTER, LOADER CONTROL VALVE TO FILTER, Z-BAR AND XR LOADERS (08) - HYDRAULICS

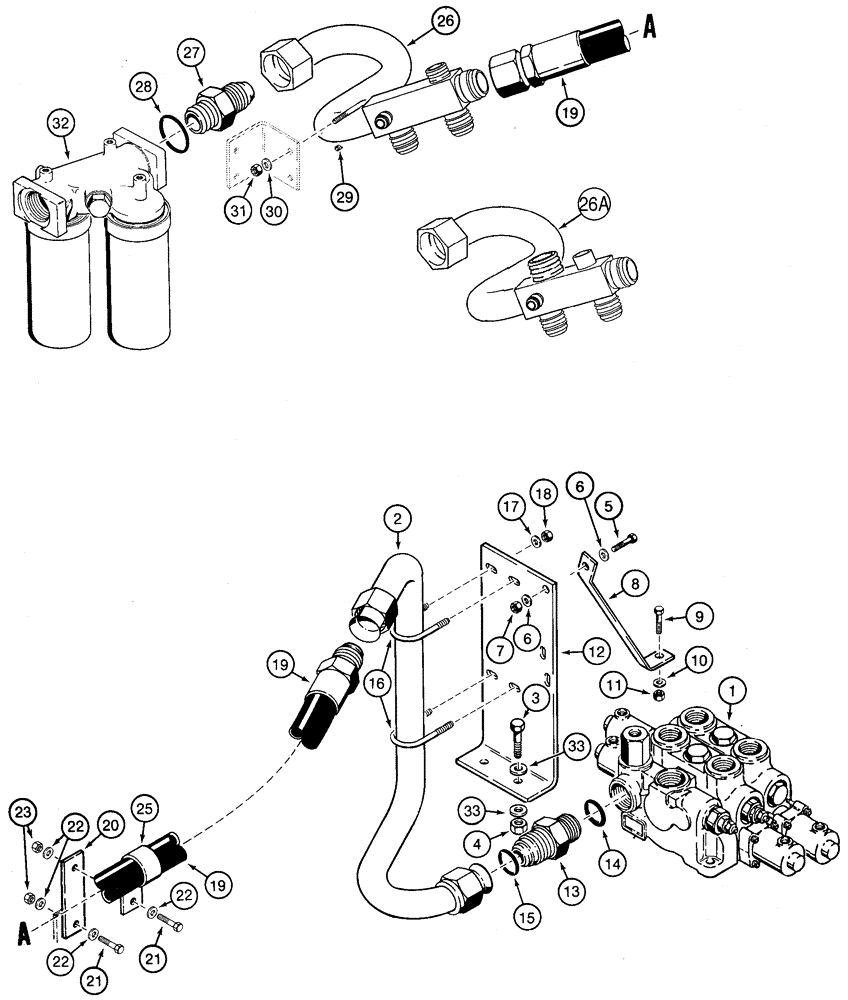

Схема запчастей Case 621C - (08-012) - HYDRAULICS - LOADER VALVE TO FILTER, LOADER CONTROL VALVE TO FILTER, Z-BAR AND XR LOADERS (08) - HYDRAULICS
32
7
27
22
22
6
25
33
19
2
5
11
17
26
19
12
28
19
9
18
4
23
13
21
10
22
3
15
14
3
33
29
20
1
26a
30
6
21
8
16

Артикул

Название

Примечание

Количество

1

L123735

VALVE

loader control, two spool, North America only, See figure 8-67

1шт.

1

L123678

VALVE

loader control, three spool, North America and Europe, See figure 8-75

1шт.

1

L123736

VALVE

loader control, four spool, North America only, See figure 8-83

1шт.

2

L127085

PIPE,38.09 mm OD

return from loader valve

1шт.

3

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

8

L119251

SUPPORT

BRACKET

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

10

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

1шт.

11

231-1406

LOCK NUT,3/8"-16, GB

1шт.

12

L119013

SUPPORT

BRACKET

1шт.

13

L124288

FITTING

ADAPTER, Includes: Refs. 14 and 15, no longer used, Order: P/N 218-5049

1шт.

13

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER, Includes Ref. 14, Replaces: P/N L124288

1шт.

14

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss End

1шт.

15

S98648

O-RING

1-3/8 ID x 1/16, face seal end, no longer used

1шт.

16

L105791

U-BOLT

2шт.

17

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

18

231-1445

NUT,5/16"-18, GB

4шт.

19

292163A2

HYDRAULIC HOSE,31.75 mm ID x 900.00 mm, SAE 100R3

Return, No Longer Available, Order: P/N 292163A3

1шт.

19

292163A3

HOSE ASSY.,31.75mm ID x 924mm L, SAE 100R3

924 mm, 36-3/8 in, return, Replaces: P/N 292163A2

1шт.

20

L50641

CONNECTING STRIP

BRACKET

1шт.

21

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

22

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Replaces P/N 895-18010

4шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

25

515-25508

CLAMP,2", Insul, 1/2" Bolt

1шт.

26

277937A2

TUBE,38.09 mm OD, 349, 130 mm Length

orifice valve block tube, no longer available, Order: P/N 356696A1

1шт.

26a

356696A1

TUBE

orifice valve block tube, Replaces: P/N 277937A2

1шт.

27

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER, 1-7/8 fl x or, Includes: Ref. 28

1шт.

28

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

29

L105791

U-BOLT

1шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

31

231-1445

NUT,5/16"-18, GB

2шт.

32

L126373

FILTER ASSY

hydraulic oil, See figure 8-23

1шт.

33

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

4шт.

Выбрано товаров: 37
