Запчасти Case 621C (08-012[C]) - VALVE ASSY, LOADER CONTROL, 4 SPOOL, Z-BAR/XR LOADERS, N A ONLY,VALVE ASSY :L123736,POWER BEYOND KIT (08) - HYDRAULICS

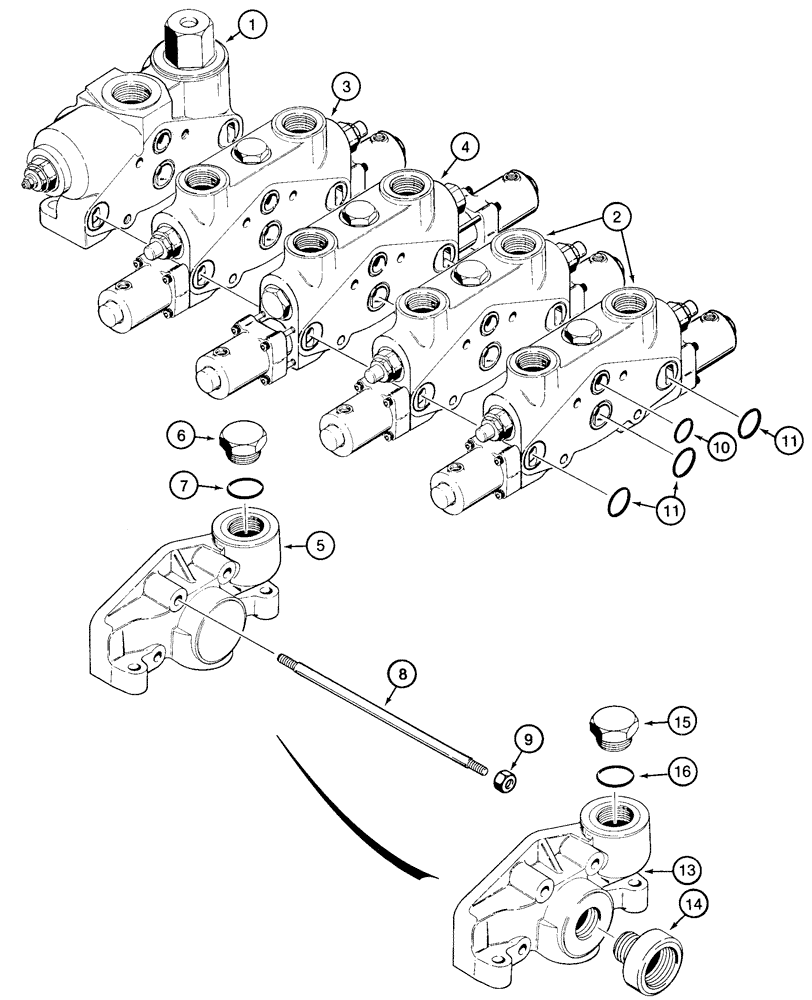

Схема запчастей Case 621C - (08-012[C]) - VALVE ASSY, LOADER CONTROL, 4 SPOOL, Z-BAR/XR LOADERS, N A ONLY,VALVE ASSY :L123736,POWER BEYOND KIT (08) - HYDRAULICS
6
8
13
16
11
10
7
9
3
5
1
14
4
2
11
15

Артикул

Название

Примечание

Количество

L123736

VALVE

control, four spool, Consists of: 1-11

1шт.

1

1978263C1

VALVE

inlet and outlet, See figure 08-023

1шт.

2

1978280C1

SECTOR

auxiliary, See figure 08-029

2шт.

3

1978296C1

VALVE

bucket, See figure 08-027

1шт.

4

1978302C1

VALVE

lift, See figure 08-024

1шт.

5

1978278C1

SECTOR

PLATE end cover, Includes: Refs. 6 and 7

1шт.

6

86512512

PLUG,7/8" - 14 ORB

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

189911A1

TRUSS ROD

4шт.

9

425-107

NUT,7/16"-14, G5

4шт.

120989A1

SEAL KIT

SEAL, Includes: Ref. 10 and 11, between sections

1шт.

10

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

5шт.

11

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

15шт.

L36348

KIT

power beyond, Includes: Refs. 13 - 16

1шт.

13

S301432

COVER

outlet

1шт.

14

S301433

SLEEVE

1шт.

15

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 16

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Выбрано товаров: 18
