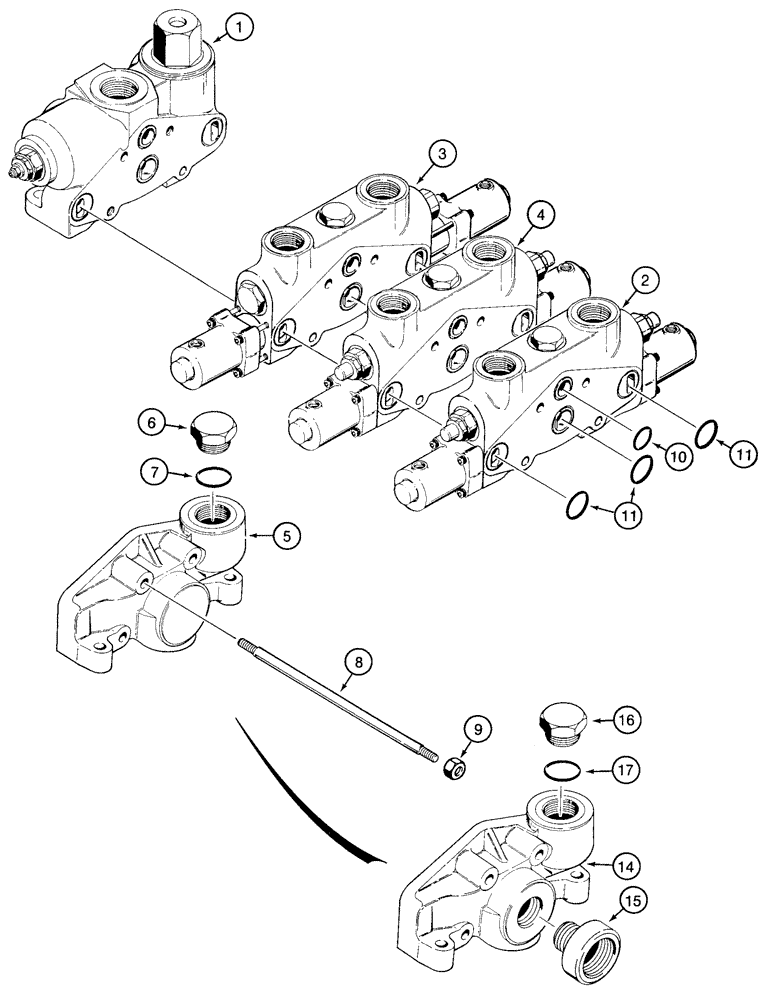

Запчасти Case 621C (08-012[B]) - VALVE ASSY,LOADER CONTROL,3 SPOOL, Z-BAR/XR LOADER,N. A./EUROPE,VALVE ASSY:L123678, POWER BEYOND KIT (08) - HYDRAULICS

L123678

VALVE

control, three spool, Consists of: Refs. 1-11

1шт.

1

1978263C1

VALVE

SECTION inlet and outlet, See figure 08-023

1шт.

2

1978280C1

SECTOR

SECTION auxiliary, See figure 08-029

1шт.

3

1978296C1

VALVE

SECTION bucket, See figure 08-027

1шт.

4

1978302C1

VALVE

SECTION lift, See figure 08-024

1шт.

5

1978278C1

SECTOR

PLATE end cover, Includes: Refs. 6 and 7

1шт.

6

86512512

PLUG,7/8" - 14 ORB

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

189909A1

STUD

4шт.

9

425-107

NUT,7/16"-14, G5

4шт.

120988A1

SEAL KIT

SEAL, Includes: Refs. 10 and 11, between sections

1шт.

10

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

4шт.

11

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

12шт.

L36348

KIT

power beyond, Includes: Refs. 14 - 17

1шт.

14

S301432

COVER

outlet

1шт.

15

S301433

SLEEVE

1шт.

16

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 17

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
