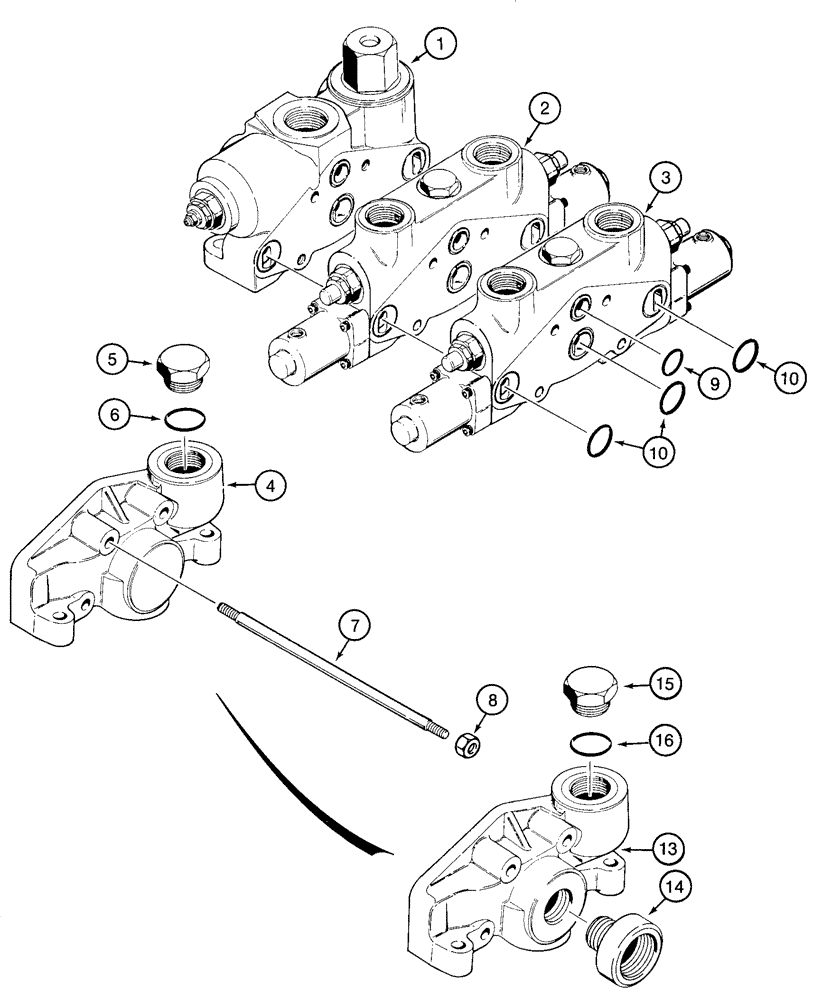

Запчасти Case 621C (08-012[A]) - VALVE ASSY-LOADER CONTRL, 2 SPOOL, Z-BAR/XR LOADERS, N. A. ONLY,VALVE ASSY:L123735, POWER BEYOND KIT (08) - HYDRAULICS

L123735

VALVE

control, two spool, Consists of: Refs. 1-10

1шт.

1

1978263C1

VALVE

SECTION inlet and outlet, See figure 08-023

1шт.

2

1978296C1

VALVE

SECTION bucket, See figure 08-027

1шт.

3

1978302C1

VALVE

SECTION lift, See figure 08-024

1шт.

4

1978278C1

SECTOR

PLATE end cover, Includes: Refs. 5, 6

1шт.

5

86512512

PLUG,7/8" - 14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

189895A1

STUD

4шт.

8

425-107

NUT,7/16"-14, G5

4шт.

120987A1

SEAL KIT

SEAL, Includes: Refs. 9 and 10, between sections

1шт.

9

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

3шт.

10

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

9шт.

L36348

KIT

power beyond, Includes: Refs. 13 - 16

1шт.

13

S301432

COVER

outlet

1шт.

14

S301433

SLEEVE

1шт.

15

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 16

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
