Запчасти Case 621C (08-010) - HYDRAULICS - PUMP, SUPPLY AND RETURN, FLOW CONTROL VALVE TO PUMP (08) - HYDRAULICS

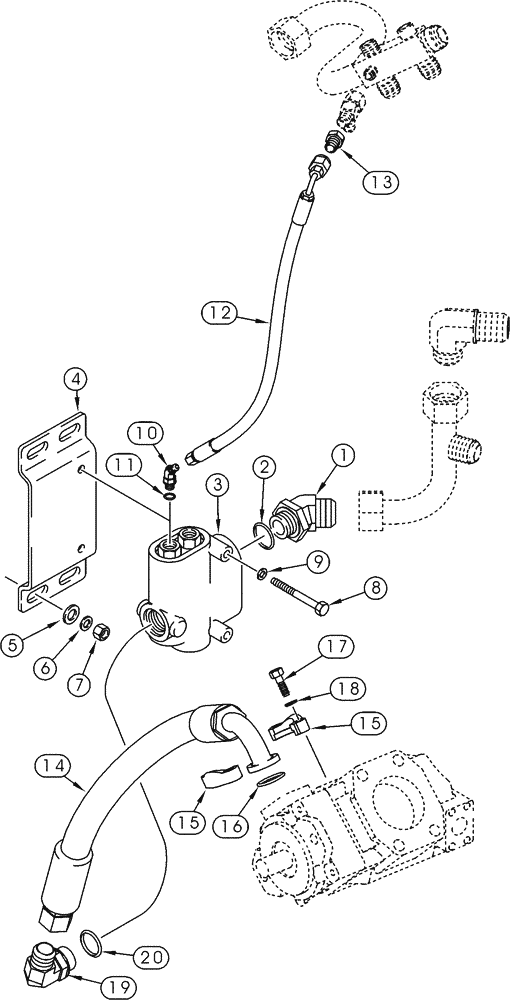

Схема запчастей Case 621C - (08-010) - HYDRAULICS - PUMP, SUPPLY AND RETURN, FLOW CONTROL VALVE TO PUMP (08) - HYDRAULICS
11
3
20
6
5
4
10
15
12
15
17
19
8
14
9
13
2
16
18
7
1

Артикул

Название

Примечание

Количество

1

280052A1

ELBOW

45 Deg., 1-5/8 fl x 1-5/16 or, Includes: Ref. 2

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

3

L126106

VALVE

See figure 8-65

1шт.

4

279951A1

SUPPORT

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

4шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

8

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

No longer used, Order P/N 896-15008

2шт.

9

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm, Replaces: P/N 895-11008

2шт.

10

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ELBOW 90 Deg., 7/16 fl x adj., Includes: Ref. 11

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

278065A2

HOSE ASSY.

21-3/16 in, (538 mm)

1шт.

13

218-764

REDUCER,37 Degree, 3/4"-16, Fem x 7/16"-20 Male

1шт.

14

277312A1

HOSE ASSY.

25-9/16 in, (648 mm)

1шт.

15

A12306

FLANGE

2шт.

16

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

17

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

18

892-11010

LOCK WASHER,M10

4шт.

19

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
