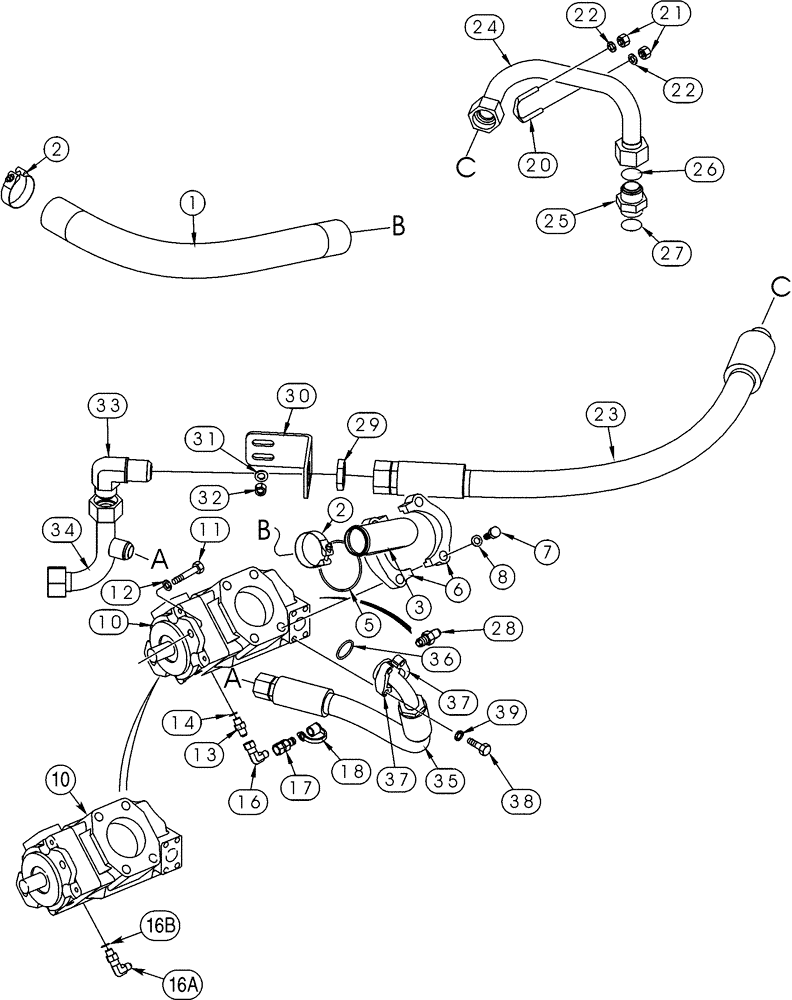

Запчасти Case 621C (08-006) - HYDRAULICS - RESERVOIR TO HYDRAULIC PUMP BSN JEE0122500, RESERVOIR TO PUMP AND LOADER CONTROL VALVE (08) - HYDRAULICS

1

282351A1

HOSE,50.80 mm ID x 650.00 mm, SAE 100R4 Class 4

Suction, Reservoir to pump inlet

1шт.

2

L126871

CLAMP

HOSE

2шт.

3

236232A1

PIPE ASSY.

1шт.

5

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

6

L13135

CLAMP

FLANGE tube

2шт.

7

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

8

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

10

296290A1

PUMP, HYDRAULIC

see figure 8-61

1шт.

296290A1R

REMAN-HYD PUMP

621C JEE0122500 (1/99)

1шт.

296290A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

No longer used, Order: P/N 627-14035

2шт.

11

627-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9, Full Thd

Replaces: P/N 627-14040

2шт.

12

895-11014

WASHER,M14 x 28 x 2.5

15.5 x 28 x 2.5 mm

2шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 14, No longer used

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

No longer used, Order P/N 218-5105

1шт.

16a

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 16B, Replaces: P/N 218-980

1шт.

16b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

101792A1

COUPLING

check port

1шт.

18

H434163

DUST CAP

Coupler

1шт.

20

294901A1

U-BOLT,M8 x 1.25, Coined

BOLT "U" M8 x 1.25

1шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

23

277840A1

HOSE ASSY.,31.75mm ID x 961mm L, SAE 100R12

supply, priority valve to loader valve, 37-7/8 in, (961 mm)

1шт.

24

L118737

PIPE,31.75 mm OD

TUBE

1шт.

25

L124289

CONNECTOR, ELEC

CONNECTOR Includes: Refs. 26 and 27

1шт.

26

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

Face Seal End

1шт.

27

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss End

1шт.

28

S243647

COUPLING

ASSY.

1шт.

29

218-1257

BHD LOCK NUT,Blkhd, 1 5/8"-12

1шт.

30

280056A1

SUPPORT

BRACKET

1шт.

31

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

33

218-699

ELBOW,90 Degree Blkhd, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree

1шт.

34

277216A2

TUBE,31.75 mm OD, 165, 88 mm Length

priority valve to loader valve, no longer available, Order: P/N 356562A1

1шт.

34

356562A1

TUBE,31.75 mm OD, 165, 88 mm Length

priority valve to loader valve, Replaces: P/N 277216A2

1шт.

35

277312A1

HOSE ASSY.

pump to loader valve, 25-9/16 in, (648 mm)

1шт.

35

295549A1

HOSE ASSY.,25.4mm ID x 708mm L, SAE 100R12

pumop loader valve, Use with 356562A1

1шт.

36

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

37

A12306

FLANGE

2шт.

38

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

39

892-11010

LOCK WASHER,M10

4шт.
