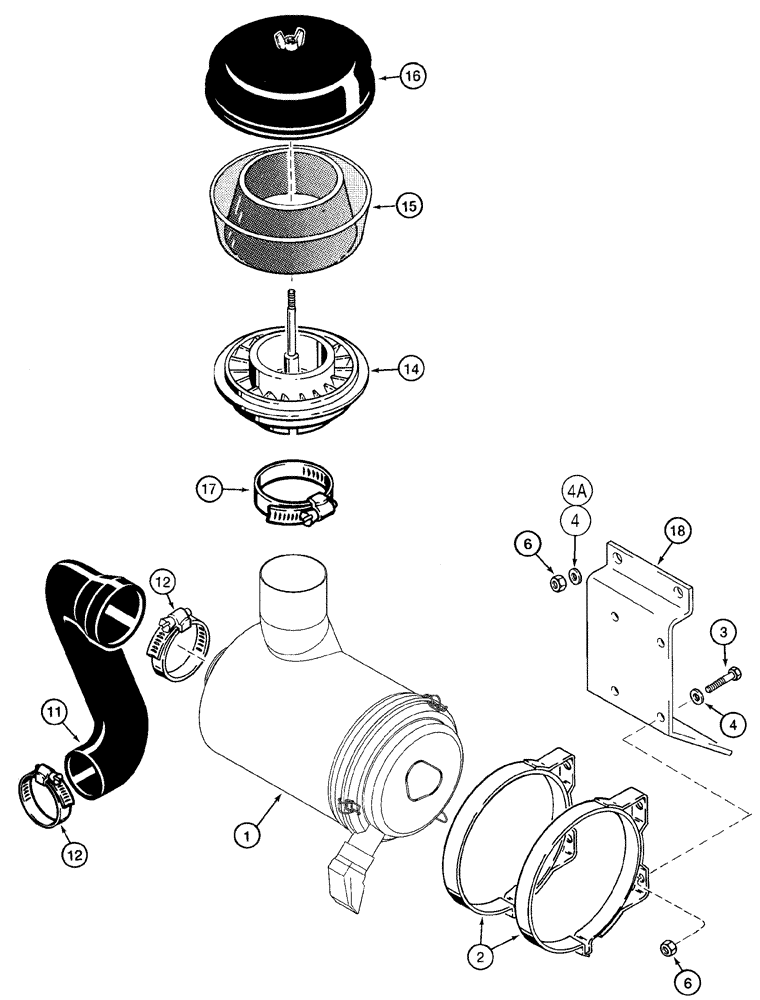

Запчасти Case 621C (02-006) - AIR CLEANER AIR INTAKE PARTS (02) - ENGINE

1

259116A1

FILTER ASSY

See Figure 2-19, no longer used, Order: P/N 259116A2

1шт.

1

259116A2

CLEANER

See Figure 2-19, Replaces: P/N 259116A1

1шт.

2

A16574

BAND

CLAMP

2шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4-8шт.

4a

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm, if used

4шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

11

251771A1

INTAKE AIR HOSE,101.60 mm ID x 358.00 mm, SAE J200

1шт.

12

L127771

CLAMP,107.95mm - 130.18mm

2шт.

258538A1

AIR INTAKE

Consists of : Refs. 14-17

1шт.

14

NSS

NOT SOLD SEPARAT

BODY

1шт.

15

277377R1

FILTER BOWL

1шт.

16

A42465

COVER

1шт.

17

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

18

283016A1

SUPPORT

BRACKET

1шт.
