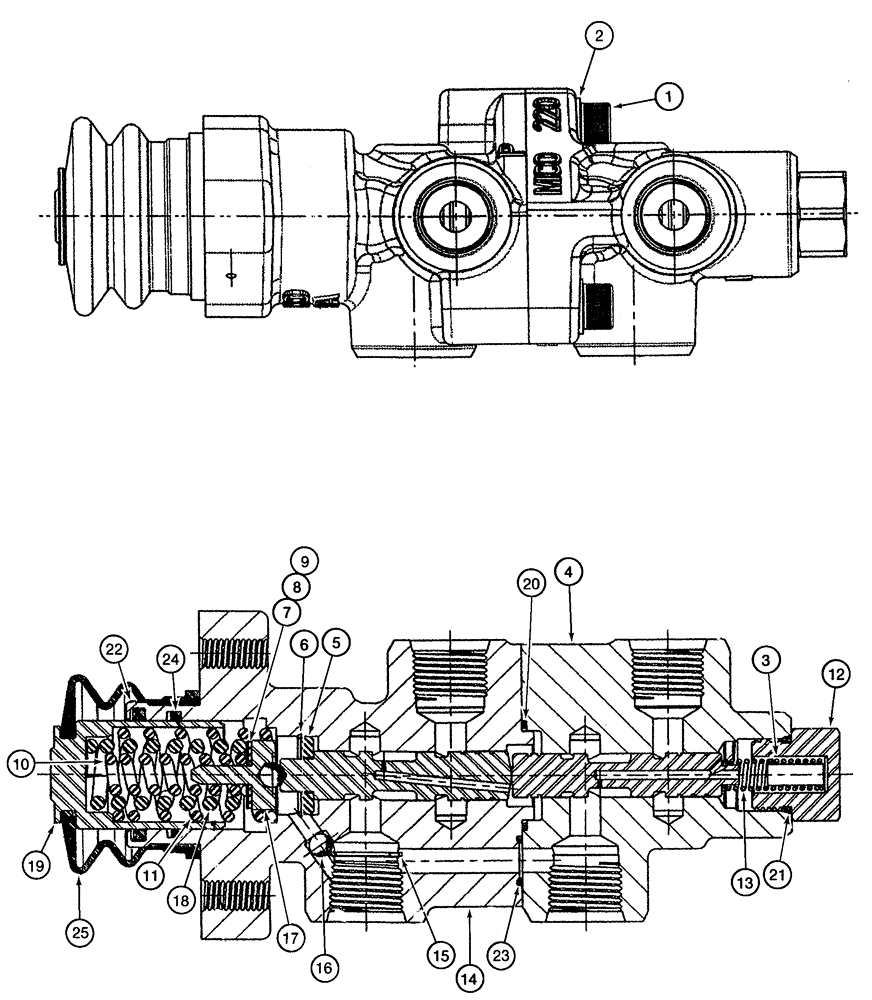

Запчасти Case 621C (07-036) - VALVE ASSEMBLY BRAKE (07) - BRAKES

331967A1

VALVE

main brake, Consists of: Refs. 1-25, component parts no longer serviced separately, boot and external seals replaced with kit 331971A1

1шт.

1

100672A1

HEX SOC SCREW,5/16" - 18 x 1"

2шт.

2

100673A1

WASHER

2шт.

3

NSS

NOT SOLD SEPARAT

RETAINER, Replaces: P/N 333314A1

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING, Replaces: P/N 333315A1

1шт.

5

NSS

NOT SOLD SEPARAT

SPACER, Replaces: P/N 333317A1

1шт.

6

NSS

NOT SOLD SEPARAT

RING, Retaining, Replaces: P/N 333318A1

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM, Replaces: P/N 333319A1

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM, Replaces: P/N 333320A1

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM, Replaces: P/N 333321A1

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING, Replaces: P/N 333322A1

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING, Replaces: P/N 333323A1

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG, Replaces: P/N 333325A1

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING, Replaces: P/N 333326A1

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING, Replaces: P/N 333328A1

1шт.

15

NSS

NOT SOLD SEPARAT

RING, Retaining, Replaces: P/N 333329A1

1шт.

16

NSS

NOT SOLD SEPARAT

BALL, Replaces: P/N 333330A1

1шт.

17

NSS

NOT SOLD SEPARAT

RETAINER, Replaces: P/N 333331A1

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING, Replaces: P/N 333332A1

1шт.

19

NSS

NOT SOLD SEPARAT

PISTON, Replaces: P/N 333335A1

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING, Replaces: P/N 333316A1

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING, 41/64 ID x 3/32, Replaces: P/N 237-6008

1шт.

22

NSS

NOT SOLD SEPARAT

CUP, Replaces: P/N 333324A1

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING, Replaces: P/N 333327A1

1шт.

24

NSS

NOT SOLD SEPARAT

RING, Replaces: P/N 333333A1

1шт.

25

NSS

NOT SOLD SEPARAT

BOOT, Replaces: P/N 333334A1

1шт.

331971A1

SEAL KIT

repair, Consists of: Refs. 20 - 25, component parts no longer serviced separately

1шт.
