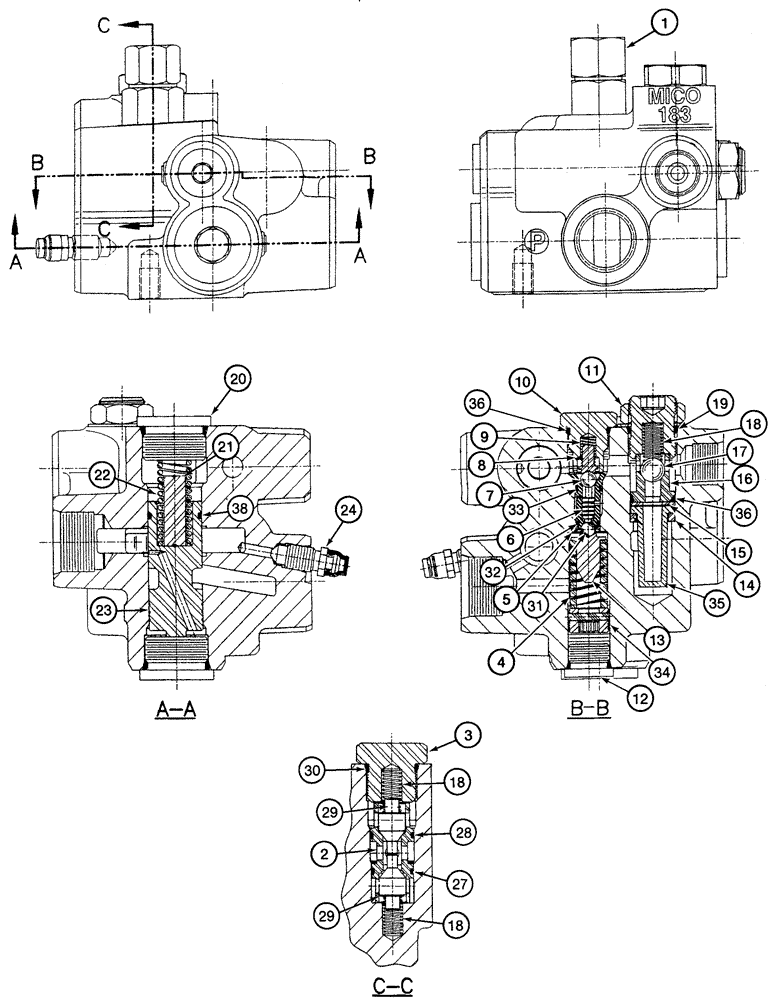

Запчасти Case 621C (07-030) - VALVE ASSEMBLY ACCUMULATOR, BRAKE (07) - BRAKES

313362A1

VALVE

brake accumulator, component parts no longer serviced separately, Consists of: Refs. 1-38

1шт.

1

333365A1

VALVE PRESSURE RELIE

Component parts not serviced separately

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE, Replaces: P/N 333367A1

1шт.

3

NSS

NOT SOLD SEPARAT

CAP, Replaces: P/N 333371A1

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING, Replaces: P/N S302034

1шт.

5

NSS

NOT SOLD SEPARAT

INSERT, Replaces: P/N 333373A1

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL, Replaces: P/N 333375A1

1шт.

7

NSS

NOT SOLD SEPARAT

BALL, Replaces: P/N 333377A1

1шт.

8

NSS

NOT SOLD SEPARAT

STOP, Replaces: P/N 333378A1

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING, Replaces: P/N 333379A1

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG, Replaces: P/N 333380A1

1шт.

11

NSS

NOT SOLD SEPARAT

NUT, Replaces: P/N 333381A1

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG, Replaces: P/N 333382A1

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER, Replaces: P/N 333384A1

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER, Replaces: P/N 333386A1

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER, Replaces: P/N 333387A1

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT, Replaces: P/N 333388A1

1шт.

17

NSS

NOT SOLD SEPARAT

BALL, Replaces: P/N 333389A1

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING, Replaces: P/N 333390A1

3шт.

19

NSS

NOT SOLD SEPARAT

SCREW, Replaces: P/N 333392A1

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG, Replaces: P/N 333393A1

2шт.

21

NSS

NOT SOLD SEPARAT

ROD, Replaces: P/N 333394A1

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING, Replaces: P/N S302035

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL, Replaces: P/N 333396A1

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW, Replaces: P/N S107710

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING, Replaces: P/N 333398A1

1шт.

331976A1

GASKET KIT

Includes Refs. 27-38, component parts no longer serviced separately

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING, Replaces: P/N 333366A1

1шт.

28

NSS

NOT SOLD SEPARAT

O-Ring, Replaces: P/N 333368A1

1шт.

29

NSS

NOT SOLD SEPARAT

VALVE poppet, Replaces: P/N 333369A1

2шт.

331976A1

GASKET KIT

Includes: Refs. 27-38, component parts no longer serviced separately

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING, Replaces: P/N 333370A1

1шт.

31

NSS

NOT SOLD SEPARAT

BALL, Replaces: P/N 333372A1

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING, Replaces: P/N 333374A1

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING, Replaces: P/N 333376A1

1шт.

34

NSS

NOT SOLD SEPARAT

SCREW, Replaces: P/N 333383A1

1шт.

35

NSS

NOT SOLD SEPARAT

FILTER, Replaces: P/N 333385A1

1шт.

36

NSS

NOT SOLD SEPARAT

41/64 ID x 3/32, O-RING, Replaces: P/N 237-6008

2шт.

37

NSS

NOT SOLD SEPARAT

O-RING, Replaces: P/N 333391A1

1шт.

38

NSS

NOT SOLD SEPARAT

RING, Replaces: P/N 333395A1

1шт.
