Запчасти Case 621C (07-029A) - HYDRAULICS - BRAKE, MAIN, MAIN BRAKE VALVE TO REAR AXLE, AXLE : 293099A1 (07) - BRAKES

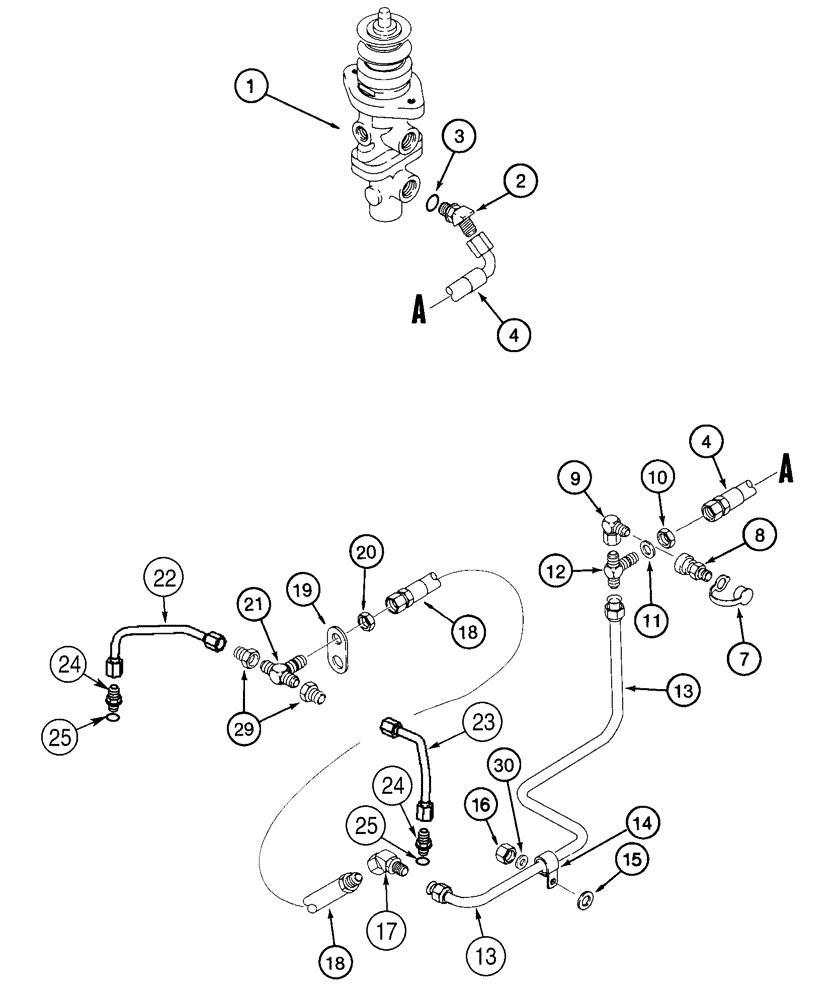

Схема запчастей Case 621C - (07-029A) - HYDRAULICS - BRAKE, MAIN, MAIN BRAKE VALVE TO REAR AXLE, AXLE : 293099A1 (07) - BRAKES
1
10
20
23
14
17
25
21
29
24
2
16
13
18
19
24
11
12
7
9
30
18
22
4
8
4
25
13
15
3

Артикул

Название

Примечание

Количество

1

331968A1

VALVE

main brake valve, See figure 7-37

1шт.

2

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Includes: Ref.3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

338654A1

HOSE ASSY.

rear brakes, 51-5/16 in, (1303 mm)

1шт.

7

H434163

DUST CAP

1шт.

8

192834A1

COUPLING

check port

1шт.

9

218-5381

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

10

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

11

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

2шт.

12

218-806

TEE,7/8"-14, 37 Degree, Blkhd

1шт.

13

338252A1

TUBE

1шт.

14

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

17

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

1шт.

18

338251A1

HOSE ASSY.

30-1/8 in, (765 mm)

1шт.

19

339484A2

BRACKET

use bolt from rear axle to mount, Replaces: P/N 339484A1

1шт.

20

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

21

218-806

TEE,7/8"-14, 37 Degree, Blkhd

1шт.

22

341120A2

TUBE

rear axle, left hand, Replaces: P/N 341120A1

1шт.

23

341118A2

TUBE

rear axle, right hand, Replaces: P/N 341118A1

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 25

2шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

218-765

REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male

2шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

Выбрано товаров: 25
