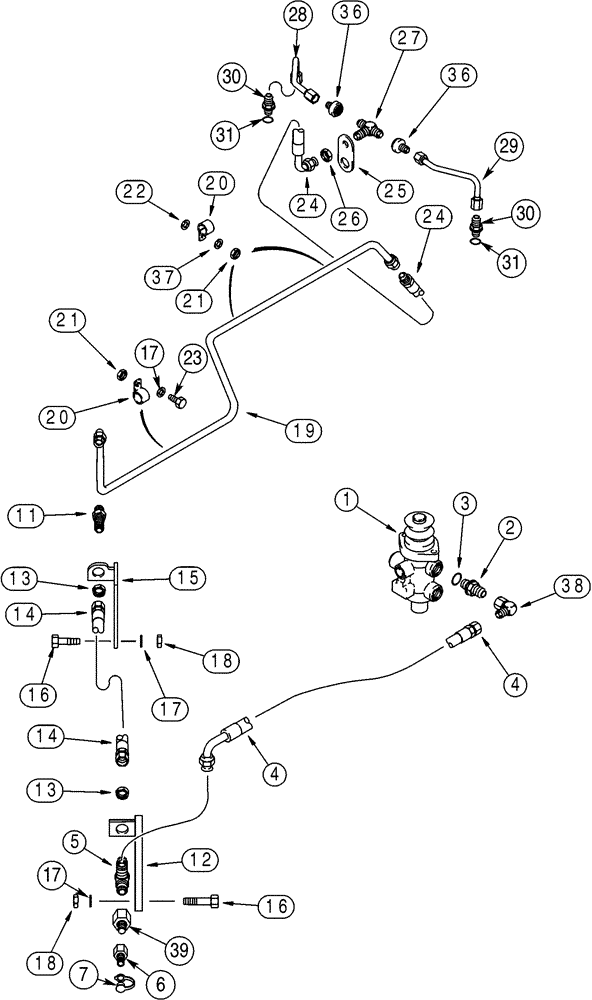

Запчасти Case 621C (07-025A) - HYDRAULICS - BRAKE, MAIN, MAIN BRAKE VALVE TO FRONT AXLE, AXLE : 293098A1 (07) - BRAKES

1

331967A1

VALVE

main brake, See figure 7-37

1шт.

2

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

ADAPTER, 1/2 fl x or, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

338655A1

HOSE ASSY.

BRAKES front, 27-15/16 in, (710 mm)

1шт.

5

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

test port

1шт.

6

192834A1

COUPLING

1шт.

7

H434163

DUST CAP

1шт.

11

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER

1шт.

12

341866A1

BRACKET

rear

1шт.

13

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

14

338656A1

HOSE ASSY.

15-13/16 in, (401 mm)

1шт.

15

341864A1

BRACKET

front

1шт.

16

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

6шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

19

338652A1

TUBE

BRAKES front

1шт.

20

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

3шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

23

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

24

338657A1

HOSE ASSY.

21-13/16 in, (554 mm)

1шт.

25

339484A2

BRACKET

use bolt from front axle to mount, Replaces: P/N 339484A1

1шт.

26

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

27

218-806

TEE,7/8"-14, 37 Degree, Blkhd

1шт.

28

341118A2

TUBE

left hand, Replaces: P/N 341118A1

1шт.

29

341120A2

TUBE

right hand, Replaces: P/N 341120A1

1шт.

30

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 31

2шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

36

218-765

REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male

2шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

38

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

39

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

1шт.
