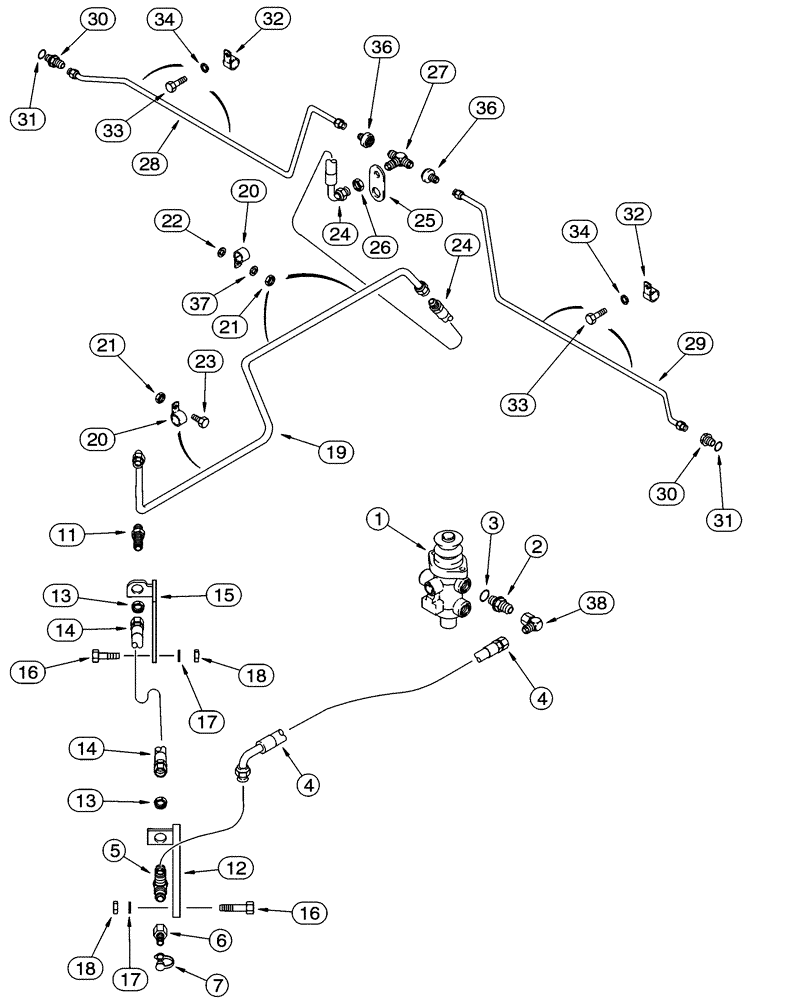

Запчасти Case 621C (07-022) - HYDRAULICS - BRAKE, MAIN, MAIN BRAKE VALVE TO FRONT AXLE, AXLE : 308661A1 (07) - BRAKES

1

331967A1

VALVE

main brake, See figure 7-37

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter, Incl. Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

246742A3

HOSE ASSY.

28 in, (710 mm), front brakes, Replaces: P/N 246742A2

1шт.

5

218-1236

TEE,3/4"-16, 37 Degree, Blkhd

Test port

1шт.

6

192834A1

COUPLING

1шт.

7

H434163

DUST CAP

1шт.

11

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

12

246343A1

SUPPORT

BRACKET rear

1шт.

13

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

14

192828A1

HOSE

16 in, (405 mm)

1шт.

15

278338A1

SUPPORT

BRACKET front

1шт.

16

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

19

278438A1

TUBE,12.7 mm OD, 1005, 250 mm Length

front brakes

1шт.

20

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

23

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

24

192831A1

HOSE

22-5/8 in, (575 mm)

1шт.

25

189274A1

SPACER

BRACKET, use bolt from front, Serial Range: axle-mount

1шт.

26

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

27

218-805

TEE,3/4"-16, 37 Degree, Blkhd

1шт.

28

192827A1

TUBE,9.5 mm OD

TUBE left hand

1шт.

29

192826A1

TUBE,9.5 mm OD

TUBE right hand

1шт.

30

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 31

2шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

4шт.

33

426-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

4шт.

34

492-11038

LOCK WASHER,3/8"

4шт.

36

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

38

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.
