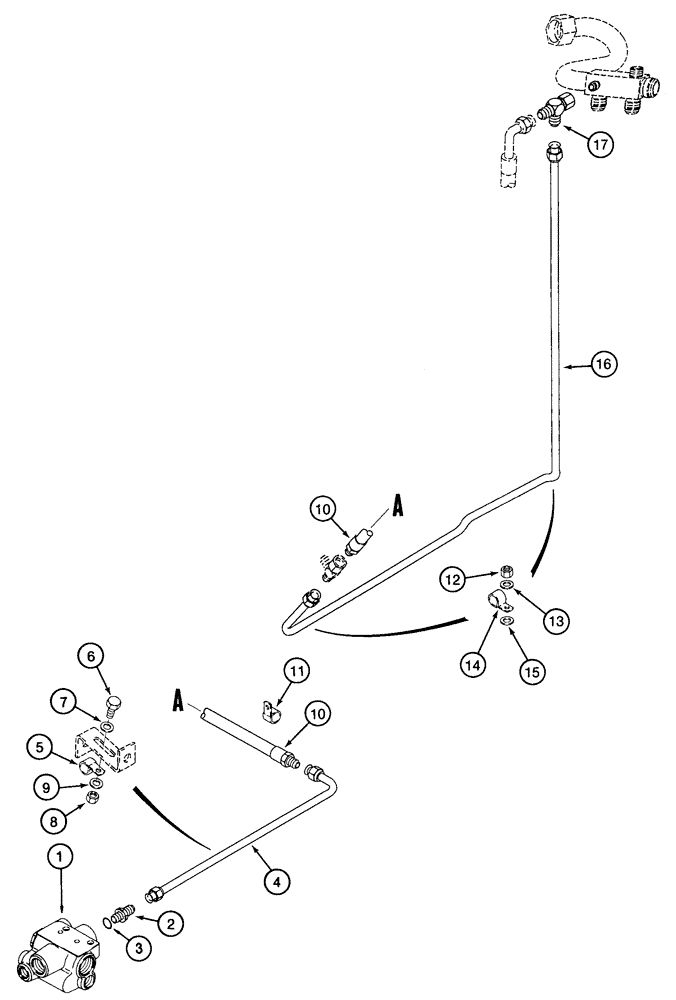

Запчасти Case 621C (07-014) - HYDRAULICS - BRAKE, MAIN, ACCUMULATOR VALVE TO RETURN PORT ON ORIFICE VALVE BLOCK TUBE (07) - BRAKES

1

313362A1

VALVE

brake accumulator, accumulator charging, See figure 7-31

1шт.

2

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Includes Adapter, P/N 218-5070

1шт.

4

314852A1

TUBE,12.7 mm OD, 475, 78 mm Length

brake accumulator charging valve

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Bracket, attaches to P/N 314931A1

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

9

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

10

314884A1

HOSE ASSY.

32-5/8 in, (828 mm), attaches to P/N 218-845 tee on models with auxiliary steering, See note

1шт.

11

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

Attaches to Converter with Existing Hardware

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Attaches to stud on rear chassis

2шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

16

314854A1

TUBE

1шт.

17

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Attaches to P/N 278065A2 return hose to flow control valve and P/N 277937A2

1шт.
