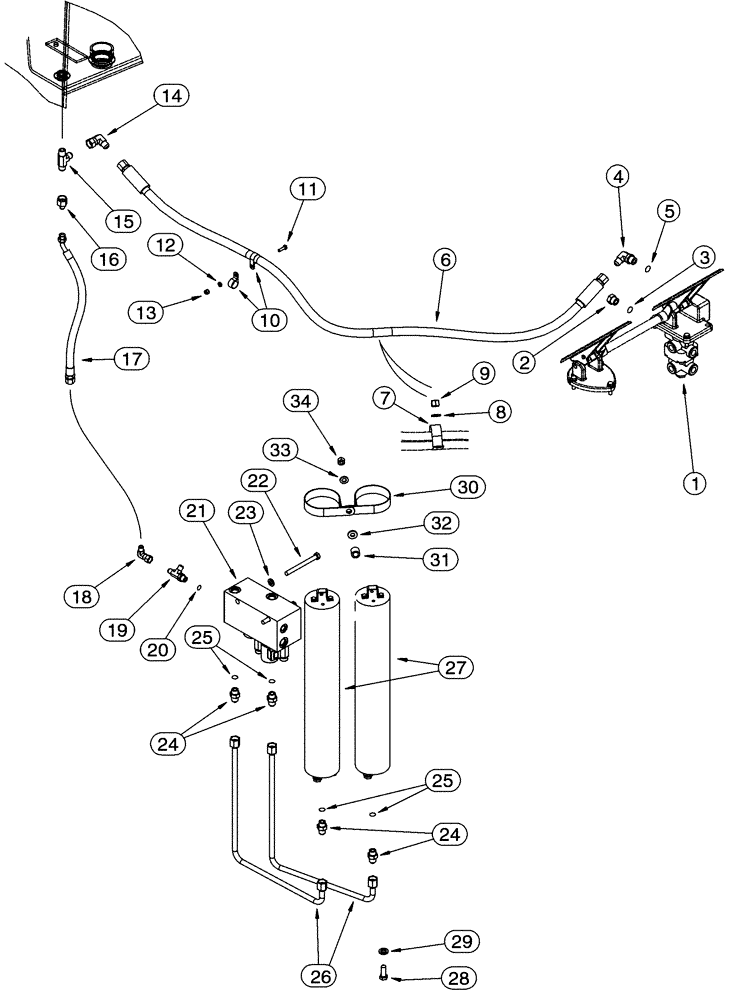

Запчасти Case 621C (07-010) - HYDRAULICS - BRAKE, MAIN, VALVE DRAIN TO HYD. TANK, BRAKE VALVE, COMB. VALVE & ACCUMULATOR (07) - BRAKES

1

331967A1

VALVE

brake, See figure 7-37, for mounting, See figure 7-5

1шт.

2

214389

PLUG,3/4" - 16 ORB

Includes Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

311911A1

HOSE ASSY.

brake valve to tee at hydraulic tank, 65-1/4 in, (1656 mm)

1шт.

7

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

10

515-21222

CLAMP,7/8", Insul, 1/4" Bolt

No longer used, Order: P/N 515-23238

2шт.

10

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

Replaces 515-21222

2шт.

11

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

No longer used, Order P/N 426-616

1шт.

11

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

Replaces P/N 627-602

1шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

No Longer Used, Order P/N 895-11010

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm, Replaces P/N 895-11006

1шт.

13

832-10406

NUT,M6 x 1, Cl 8

No longer used, Order P/N 231-1446

1шт.

13

231-1446

NUT,3/8" - 16, Gr 5

Replaces P/N 832-10406

1шт.

14

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

Attaches to tee at hydraulic tank

1шт.

15

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

At hydraulic tank

1шт.

16

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

17

238089A1

HOSE ASSY.

drain, 24 in, (607 mm)

1шт.

18

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

19

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 20, Port 'T', See note

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

198998A3

VALVE

pressure, combination, See figures 8-221, 8-223, if used

1шт.

21a

198998A4

VALVE

pressure, combination, See figures 8-223B, 8-223D, if used, not illustrated

1шт.

22

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 25

4шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

283793A1

TUBE,12.7 mm OD, 375, 313 mm Length

accumulator

2шт.

27

284444A1

ACCUMULATOR

See figure 7-39

2шт.

28

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

29

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

30

283777A2

CLAMP

Replaces: P/N 283777A1

2шт.

31

283846A1

SPACER

14 x 16 x 19 mm

1шт.

32

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

33

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

No longer used, Order P/N 896-15010

1шт.

33

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm, Replaces: P/N 896-11010

1шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
