Запчасти Case 621C (07-006) - HYDRAULICS - BRAKE, MAIN, RESERVOIR TO PUMP TO ACCUMULATOR VALVE (07) - BRAKES

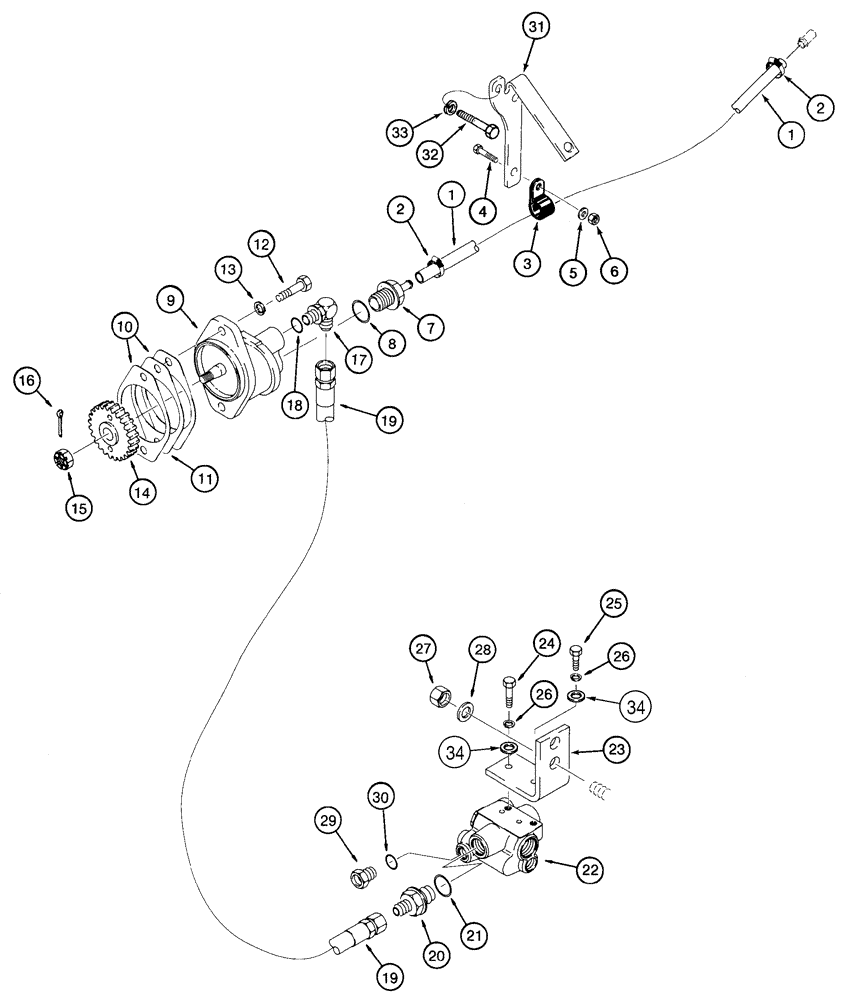

Схема запчастей Case 621C - (07-006) - HYDRAULICS - BRAKE, MAIN, RESERVOIR TO PUMP TO ACCUMULATOR VALVE (07) - BRAKES
34
9
24
1
18
30
31
29
19
16
19
15
28
7
4
17
26
1
34
33
5
23
3
21
2
10
20
1
22
13
32
8
6
12
14
11
27
2
26

Артикул

Название

Примечание

Количество

1

315440A1

HOSE

Brake motor supply at reservoir, 36-7/16 in, (925 mm)

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

3

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

7

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

ADAPTER, 3/4 x 1-1/16 or, Includes: Ref. 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

317020A1

PUMP, HYDRAULIC

brake, See figure 7-35

1шт.

87453067R

REMAN-HYD PUMP

621C (1/99-), Reman for New P/N 317020A1

1шт.

87453067C

CORE-HYDRAULIC PUMP

Return Number

1шт.

10

J931608

GASKET

cover, no longer used, Order: P/N 144169C2

2шт.

10

144169C2

GASKET,0.79mm Thk

mounting, Replaces: P/N J931608

2шт.

11

J902603

SHIM,103.5mm ID x 120mm OD x 1.52mm Thk

SHIM

1шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

12

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

13

892-11012

LOCK WASHER,M12

2шт.

14

J924186

GEAR

brake pump

1шт.

15

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

16

432-616

COTTER PIN,3/32" x 1"

1шт.

17

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

107323A1

HOSE ASSY.

pump to accumulator valve, 16-1/4 in, (410 mm)

1шт.

20

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER, 3/4 fl x 1-1/16 or, Includes: Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

313362A1

VALVE

brake accumulator, See figure 7-31

1шт.

23

L129987

BRACKET

1шт.

24

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

25

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

29

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

Includes: Ref. 30

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

293373A1

SUPPORT

BRACKET, attaches to cylinder head, no longer available, Order: P/N 293373A2

1шт.

31

293373A2

SUPPORT

BRACKET, attaches to cylinder head, Replaces: P/N 293373A1

1шт.

32

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

No longer used, Order P/N 514-864

1шт.

32

514-864

BOLT,Hex, M12 x 1.5 x 25mm, Cl 8.8, Full Thd

Replaces P/N 627-12030

1шт.

33

892-11012

LOCK WASHER,M12

1шт.

34

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8

2шт.

Выбрано товаров: 40
