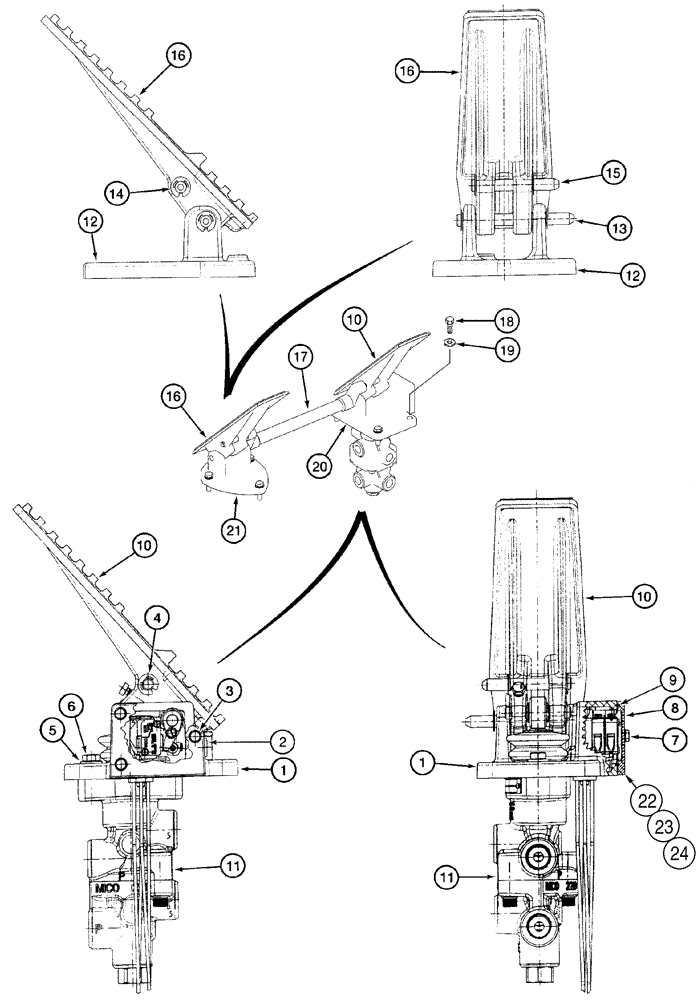

Запчасти Case 621C (07-004) - BRAKE PEDALS (07) - BRAKES

226914A1

PEDAL

ASSY., left hand, Includes Main Brake Valve, Consists of Refs. 1-11, if used

1шт.

370946A1

VALVE

PEDAL ASSY., left hand, includes main brake valve, Consists of Refs. 1-11, if used

1шт.

1

NSS

NOT SOLD SEPARAT

BASE, Replaces: P/N 333118A1

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG, Replaces: P/N 333119A1

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT, Replaces: P/N 333120A1

1шт.

4

NSS

NOT SOLD SEPARAT

RING, E, Replaces: P/N 333130A1

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER, Replaces: P/N 333121A1

2шт.

6

NSS

NOT SOLD SEPARAT

SCREW, Replaces: P/N 333122A1

2шт.

7

NSS

NOT SOLD SEPARAT

SCREW, Replaces: P/N 333123A1

3шт.

8

NSS

NOT SOLD SEPARAT

COVER, Replaces: P/N 333124A1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL, Replaces: P/N 333125A1

1шт.

10

333126A1

PEDAL ASSY.

left hand

1шт.

11

331967A1

VALVE

Main brake, brake pedal, See figure 7-36

1шт.

315289A1

PEDAL

ASSY., right hand, tag along pedal, Consists of: Refs. 12-16

1шт.

12

NSS

NOT SOLD SEPARAT

BASE, Replaces: P/N 333345A1

1шт.

13

NSS

NOT SOLD SEPARAT

PIN, Replaces: P/N 333346A1

1шт.

14

NSS

NOT SOLD SEPARAT

RING E, Replaces: P/N 333130A1

4шт.

15

NSS

NOT SOLD SEPARAT

PIN, Replaces: P/N 333347A1

1шт.

16

333348A1

PEDAL

right hand

1шт.

17

315290A1

SHAFT

1шт.

18

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

7шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

20

278824A1

GASKET,3mm Thk

SEAL, left hand pedal

1шт.

21

277973A1

GASKET

right hand pedal

1шт.

360047A1

BASE

ASSY., Consists of: Refs. 22 - 24

1шт.

22

360048A1

HARNESS

1шт.

23

360049A1

SWITCH

1шт.

24

360050A1

SWITCH

BRAKE LIGHT

1шт.
