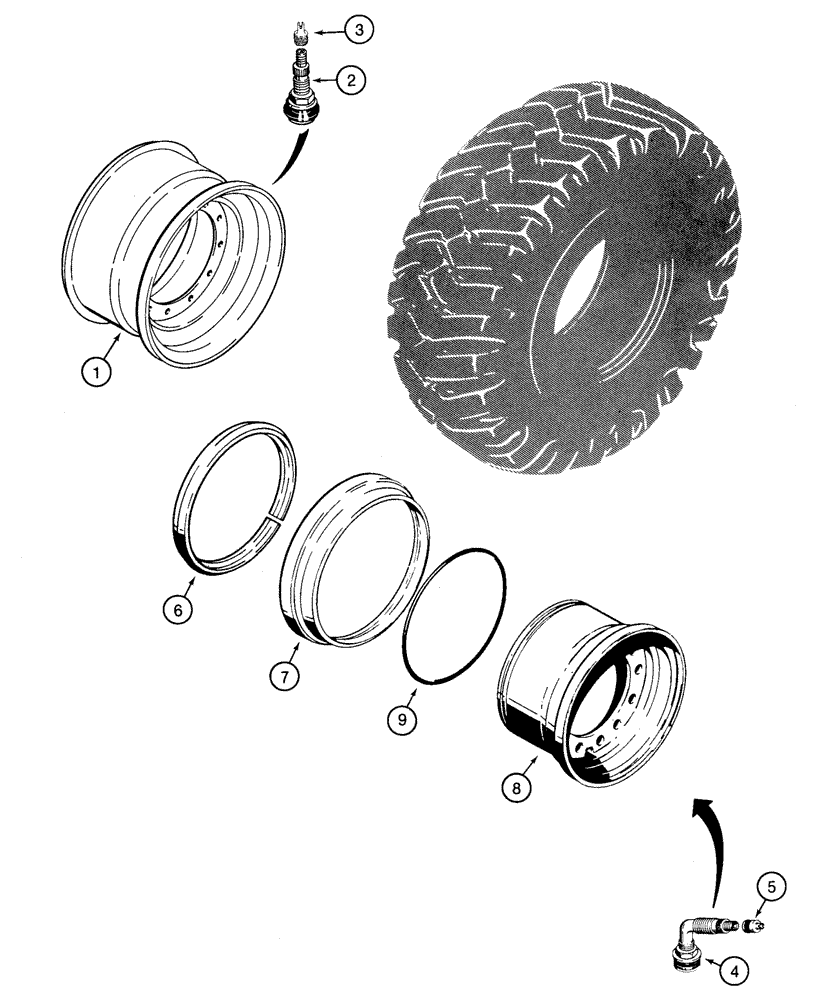

Запчасти Case 621C (06-100) - WHEELS, FOR 17.5 X 25 TIRES - ONE PIECE WHEEL, NORTH AMERICA AND EUROPE (06) - POWER TRAIN

1

L127076

RIM

WHEEL WHEEL ASSY., for 17.5 x 25 tires, one piece wheel, North America and Europe

4шт.

2

A20058

VALVE STEM

Includes: Ref. 3, for 17.5 x 25 tires, one piece wheel, North America and Europe

4шт.

3

L19664

VALVE STEM

CAP, for 17.5 x 25 tires, one piece wheel, North America and Europe

4шт.

4

L48133

VALVE STEM

Includes: Ref.5, for 17.5 x 25 tires, three piece wheel, North America only

4шт.

5

L19664

VALVE STEM

for 17.5 x 25 tires, three piece wheel, North America only

1шт.

L118704

RIM

WHEEL WHEEL ASSY., Includes: Refs. 6-8, if used, for 17.5 x 25 tires, three piece wheel, North America only

4шт.

370416A1

WHEEL ASSY.

Includes: Refs. 6-8, if used, for 17.5 x 25 tires, three piece wheel, North America only

4шт.

6

N8338

RING

locking, for wheels stamped with No. 0111545400, for 17.5 x 25 tires, three piece wheel, North America only

1шт.

6

A19100

LOCKING RING

locking, for wheels stamped with No. 51470950395, for 17.5 x 25 tires, three piece wheel, North America only

1шт.

7

S300012

RING

side, for wheels stamped with No. 0111545400, for 17.5 x 25 tires, three piece wheel, North America only

1шт.

7

A19099

RING

side, for wheels stamped with No. 51470950395, for 17.5 x 25 tires, three piece wheel, North America only

1шт.

8

NSS

NOT SOLD SEPARAT

RIM, wheel, for 17.5 x 25 tires, three piece wheel, North America only

1шт.

9

A19101

O-RING,6.6mm Thk x 590.55mm ID

for 17.5 x 25 tires, three piece wheel, North America only

4шт.

4

L48133

VALVE STEM

Includes: Ref. 5, for 17.5 x 25 tires, three piece wheel, North America and Europe

4шт.

5

L19664

VALVE STEM

for 17.5 x 25 tires, three piece wheel, North America and Europe

4шт.

L119199

RIM

WHEEL WHEEL ASSY., 20.5 x 25, Includes: Refs. 6-8, if used, for 17.5 x 25 tires, three piece wheel, North America and Europe

4шт.

370418A1

WHEEL ASSY.

20.5 x 25, Includes: Refs. 6-8, if used, for 17.5 x 25 tires, three piece wheel, North America and Europe

4шт.

6

N8338

RING

locking, for wheels stamped with No. 0111551200, for 17.5 x 25 tires, three piece wheel, North America and Europe

1шт.

6

A19100

LOCKING RING

locking, for wheel side ring stamped with No. 514747199 or 514826403, for 17.5 x 25 tires, three piece wheel, North America and Europe

1шт.

7

N8337

RING

side, for wheels stamped with No. 0111551200, for 17.5 x 25 tires, three piece wheel, North America and Europe

1шт.

7

103185A1

RING

side, offset dish with block under side, for wheels stamped with No. 514826403, for 17.5 x 25 tires, three piece wheel, North America and Europe

1шт.

8

NSS

NOT SOLD SEPARAT

RIM wheel, for 17.5 x 25 tires, three piece wheel, North America and Europe

1шт.

9

A19101

O-RING,6.6mm Thk x 590.55mm ID

for 17.5 x 25 tires, three piece wheel, North America and Europe

4шт.
