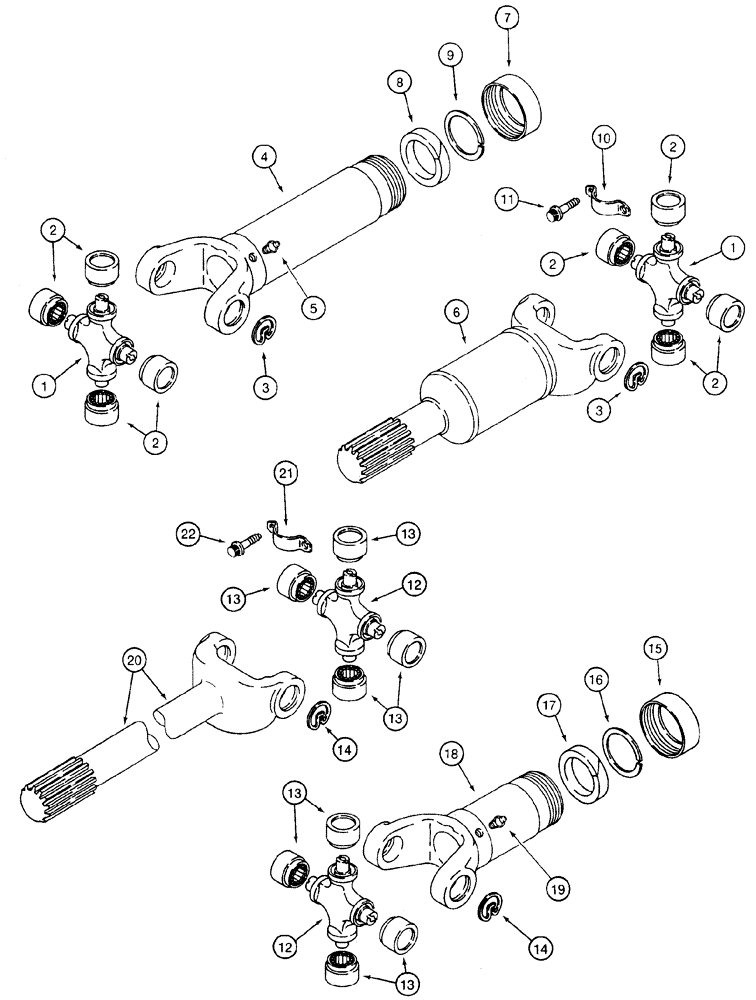

Запчасти Case 621C (06-096) - DRIVE SHAFT - CENTER AND REAR, CENTER DRIVE SHAFT (06) - POWER TRAIN

257775A1

COUPLING

SHAFT drive, Includes: Refs. 1-9

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

Includes 1-3

2шт.

1

NSS

NOT SOLD SEPARAT

JOINT universal

1шт.

2

NSS

NOT SOLD SEPARAT

RACE

4шт.

3

S92378

RING, SNAP

RING SNAP JOINT universal

4шт.

4

877128R91

YOKE

UNIVERSAL JOINT YOKE transmission end

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

6

337572A1

SHAFT

YOKE axle end

1шт.

7

S85992

CAP COVER

1шт.

8

337119A1

WASHER

1шт.

9

S88377

WASHER

1шт.

10

L116943

SECURING STRAP

bearing

4шт.

11

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

Bearing strap

8шт.

257776A1

JOINT

SHAFT drive, Includes: Refs.12-20, rear

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

Includes: Refs.12-14, rear drive shaft

2шт.

12

NSS

NOT SOLD SEPARAT

JOINT universal, rear drive shaft

1шт.

13

NSS

NOT SOLD SEPARAT

RACE, rear drive shaft

4шт.

14

S92378

RING, SNAP

RING SNAP JOINT universal, rear drive shaft

4шт.

15

S300645

CAP

rear drive shaft

1шт.

16

S300646

WASHER

rear drive shaft

1шт.

17

S300647

WASHER

rear drive shaft

1шт.

18

S300651

HALF SHAFT

END axle, rear drive shaft

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Rear drive shaft

1шт.

20

337116A1

YOKE

UNIVERSAL JOINT YOKE END transmission, rear drive shaft

1шт.

21

L116943

SECURING STRAP

STRAP, rear drive shaft

4шт.

22

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

Bearing strap, Rear drive shaft

8шт.
