Запчасти Case 621C (06-092) - DRIVE SHAFT, FRONT - BEARING, SUPPORT AND LUBE LINE, FRONT DRIVE SHAFT (06) - POWER TRAIN

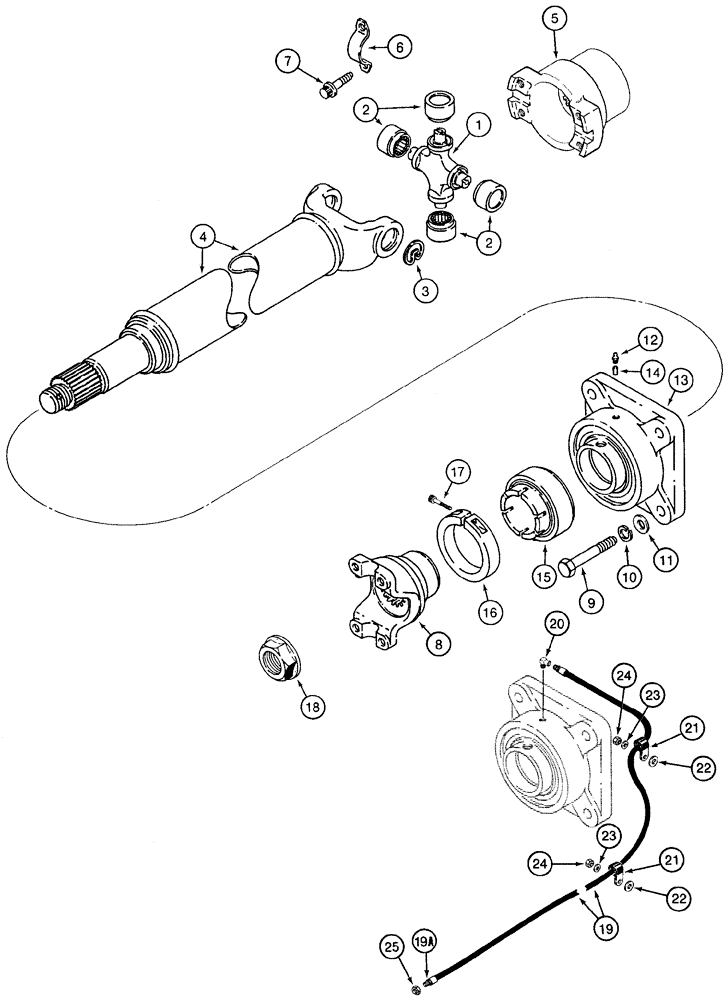

Схема запчастей Case 621C - (06-092) - DRIVE SHAFT, FRONT - BEARING, SUPPORT AND LUBE LINE, FRONT DRIVE SHAFT (06) - POWER TRAIN
14
5
23
19
16
9
22
17
10
11
2
20
8
22
15
21
6
3
1
24
24
12
19a
23
7
13
25
21
4
2
18

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SHAFT drive, front

1шт.

257774A1

COUPLING

SHAFT ASSY., front axle, Includes: P/N S300313, 1-4

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

Includes: Refs. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

JOINT universal

1шт.

2

NSS

NOT SOLD SEPARAT

RACE

4шт.

3

S92378

RING, SNAP

RING SNAP JOINT universal

4шт.

4

NSS

NOT SOLD SEPARAT

TUBE

1шт.

5

REF

INSTRUCTION

FLANGE, drive shaft to front axle, See Figure 6-75, For Ref. 14

1шт.

6

L116943

SECURING STRAP

STRAP, Serial Range: bearing-flange

2шт.

7

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

Bearing strap

4шт.

8

L116944

YOKE

drive shaft to center bearing, for bearing straps and bolts, See Figure 6-97

1шт.

9

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

10

892-11012

LOCK WASHER,M12

4шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

L106070

FLANGED BEARING

front drive shaft support; Includes: Refs.12 - 17

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

L33788

AXLE PIN

lock, 1/4 in Dia.

1шт.

L33787

KIT

bearing and collar; Includes: Refs.15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING support

1шт.

16

L33789

COLLAR

1шт.

17

61-32516

HEX SOC SCREW,1/4"-20 x 1"

1шт.

18

L35091

NUT

special, Replaces: P/N L117413

1шт.

REF

INSTRUCTION

lubrication line

1шт.

19

L54694

HOSE,4.8mm ID x 1041mm L

41 in, (1041 mm), Includes: Ref. 19A, lubrication line

1шт.

19a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

20

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Lubrication line

1шт.

21

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

lubrication line

2шт.

22

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, lubrication line

2шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Lubrication line

2шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

Lubrication line

2шт.

25

F53473

LOCK NUT,1/8-27 NPSM

special, 1/8 PT, lubrication line

1шт.

Выбрано товаров: 32
