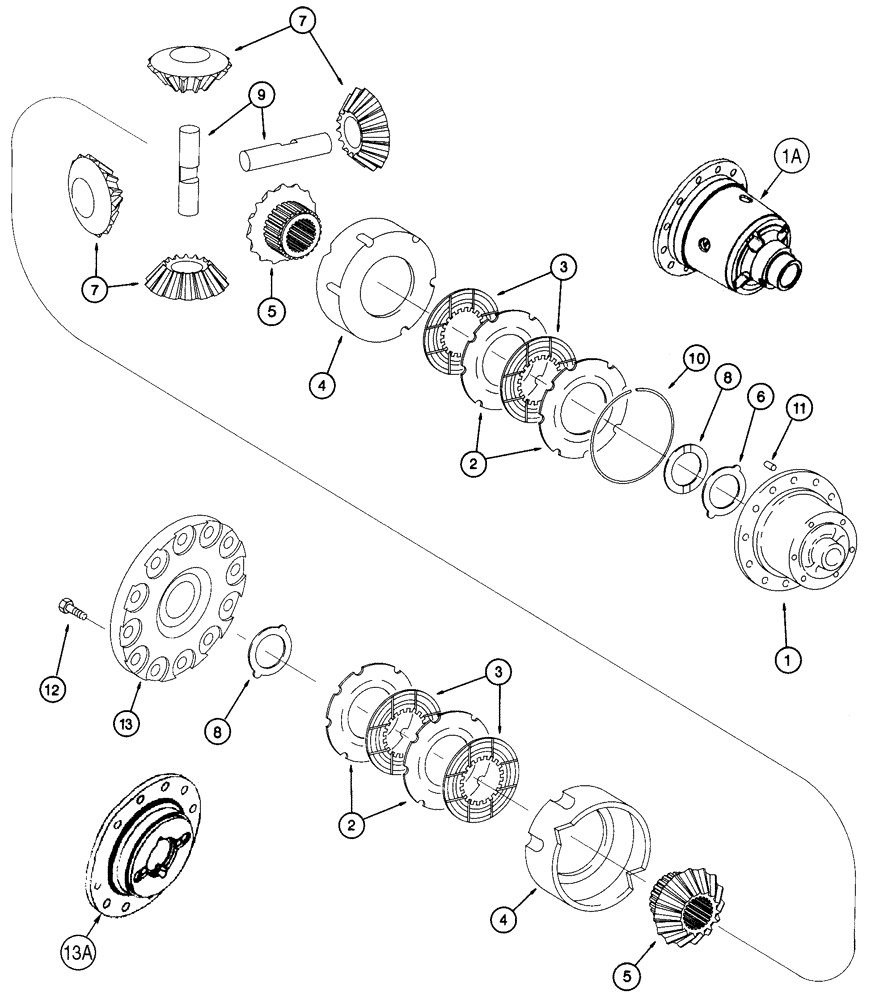

Запчасти Case 621C (06-090) - AXLE, REAR DIFFERENTIAL (06) - POWER TRAIN

308662A1

REAR AXLE

Consists of: Fig. 6-79 - 6-91D, if used to SN JEE0123545

1шт.

293099A1

AXLE

rear, Consists of: Fig. 6-79 - 6-91D, if used SN, Start Serial: JEE0123546

1шт.

336578A1

DIFFERENTIAL

ASSY., Consists of: Fig. 6-87 - 6-91D, used with P/N 308662A1

1шт.

384373A1

AXLE DIFFERENTIAL

ASSY., Consists of: Fig. 6-87 - 6-91D, used with P/N 293099A1

1шт.

384373A1R

REMAN-AXLE DIFFERENT

REMANUFACTURED AXLE DIFFERENTIAL - NA Only

1шт.

384373A1C

CORE-AXLE DIFF w/LTD

CORE-AXLE DIFF, w/LTD SLIP Return Number, AXLE DIFFERENTIAL - NA Only

1шт.

177713A1

BODY

DIFFERENTIAL ASSY., Includes: Refs. 1-15, limited slip, used with P/N 308662A1

1шт.

384275A1

AXLE DIFFERENTIAL

ASSY., Includes: Refs. 1-13A, limited slip, used with P/N 293099A1

1шт.

1

177714A1

HOUSING

used with P/N 308662A1

1шт.

1a

384274A1

HOUSING

used with P/N 293099A1

1шт.

2

230548A1

THRUST WASHER

WASHER thrust, outer

1шт.

2

230549A1

DISC

PLATE clutch, 2.3 mm, outer

1шт.

2

230550A1

DISC

PLATE clutch, 2.4 mm, outer

1шт.

2

230551A1

DISC

PLATE clutch, 2.5 mm, outer

1шт.

2

384276A1

CLUTCH DISC

CLUTCH DISK PLATE, outer, if used

1шт.

3

177732A1

DISC

PLATE clutch, inner

4шт.

4

119337A1

RING, SNAP

RING SNAP

2шт.

5

121395A1

PINION

GEAR, 16T, side

2шт.

6

177717A1

THRUST WASHER

thrust, outer, used with P/N 308662A1

1шт.

6

242180A1

THRUST WASHER

special, outer, used with P/N 293099A1

1шт.

7

119340A1

PINION

GEAR, 11T

4шт.

8

119330A1

THRUST WASHER

thrust, inner

2шт.

9

119338A1

SHAFT

pinion

2шт.

10

119329A1

RING, SNAP

RING SNAP retaining

1шт.

11

119341A1

PIN

12шт.

12

121398A1

SCREW

Housing cover

12шт.

13

177734A1

COVER

used with P/N 308662A1

1шт.

13a

384278A1

COVER

used with P/N 293099A1

1шт.

14

177715A1

SEAL

SEAL, not illustrated, used with P/N 308662A1

6шт.

15

193152A1

BOLT

special, not illustrated, used with P/N 308662A1

6шт.
