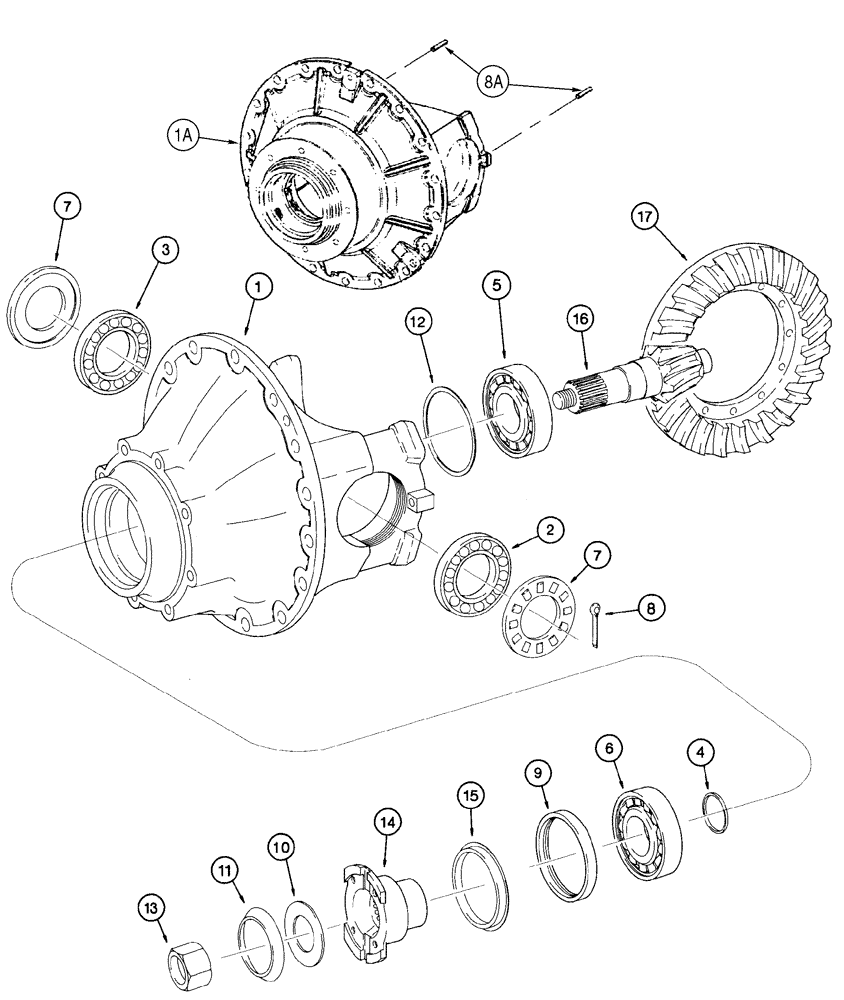

Запчасти Case 621C (06-086) - AXLE, REAR DIFFERENTIAL CARRIER (06) - POWER TRAIN

308662A1

REAR AXLE

Consists of: 6-79 - 6-91D, if used to SN JEE0123545

1шт.

293099A1

AXLE

rear, Consists of: 6-79 - 6-91D, if used SN, Start Serial: JEE0123546

1шт.

336578A1

DIFFERENTIAL

ASSY., Includes: Refs. 1-17, includes limited slip differential, See figure 6-87 - 6-87D, used with P/N 308662A1

1шт.

384373A1

AXLE DIFFERENTIAL

ASSY., Includes: Refs. 1-17, includes limited slip differential, See figures 6-87 - 6-87D, used with P/N 293099A1

1шт.

384373A1R

REMAN-AXLE DIFFERENT

REMANUFACTURED AXLE DIFFERENTIAL - NA Only

1шт.

384373A1C

CORE-AXLE DIFF w/LTD

CORE-AXLE DIFF, w/LTD SLIP Return Number, AXLE DIFFERENTIAL - NA Only

1шт.

1

121323A1

HOUSING

used with P/N 308662A1

1шт.

1a

384262A1

HOUSING

used with P/N 293099A1

1шт.

2

121340A1

ROLLER BEARING

roller, right hand

1шт.

3

100188A1

ROLLER BEARING,65mm ID x 110mm OD x 28mm

roller, left hand

1шт.

4

119296A1

BLOCK

SPACER, 8.8 mm

1шт.

4

898117H1

RING, SNAP

RING SNAP SPACER, 8.7 mm

1шт.

4

898456H1

RING, SNAP

RING SNAP SPACER, 8.6 mm

1шт.

4

898451H1

SNAP RING

SPACER, 8.5 mm

1шт.

4

898446H1

RING, SNAP

RING SNAP SPACER, 8.4 mm

1шт.

4

898441H1

RING, SNAP

RING SNAP SPACER, 8.3 mm

1шт.

4

119301A1

BLOCK

SPACER, 8.9 mm

1шт.

4

119305A1

BLOCK

SPACER, 9.1 mm

1шт.

4

119309A1

BLOCK

SPACER, 9.2 mm

1шт.

4

119310A1

BLOCK

SPACER, 9.3 mm

1шт.

4

119311A1

BLOCK

SPACER, 9.4 mm

1шт.

5

121324A1

ROLLER BEARING

roller, front

1шт.

6

121325A1

ROLLER BEARING

roller, rear

1шт.

7

121343A1

NUT

2шт.

8

119318A1

SPLIT PIN/SAFETY PIN

8 x 45 mm, used with P/N 308662A1

2шт.

8a

838-5636

LOCK PIN,M6 x 36, Slotted

Used with P/N 293099A1

2шт.

9

119315A2

SEAL

Replaces: P/N 119315A1

1шт.

10

119316A1

WASHER

1шт.

11

119323A1

WASHER

used with P/N 308662A1

1шт.

12

121328A1

WASHER

SHIM, 0.7 mm

1шт.

12

121329A1

WASHER

SHIM, 0.8 mm

1шт.

12

121331A1

WASHER

SHIM, 0.9 mm

1шт.

12

121334A1

WASHER

SHIM, 1.0 mm

1шт.

12

3217664R1

SHIM

1.2 mm

1шт.

12

3217663R1

DISC

SHIM, 1.3 mm

1шт.

12

3217662R1

DISC

SHIM, 1.4 mm

1шт.

12

3217661R1

SHIM

1.5 mm

1шт.

12

3217660R1

SHIM

1.6 mm

1шт.

12

3217659R1

SHIM

1.7 mm

1шт.

12

3217658R1

SHIM

1.8 mm

1шт.

12

3217657R1

SHIM

1.9 mm

1шт.

12

3217656R1

SHIM

2.0 mm

1шт.

12

121342A1

WASHER

SHIM, 1.1 mm, used with P/N 308662A1

1шт.

13

121345A1

NUT

used with P/N 308662A1

1шт.

13

119317A1

NUT

used with P/N 293099A1

1шт.

14

121346A1

COUPLING FLANGE

input

1шт.

15

119322A1

PROTECTOR

SPACER, used with P/N 308662A1

1шт.

15

384273A1

SHIELD

GUARD, used with P/N 293099A1

1шт.

336584A1

SET

GEAR ASSY., Includes: Refs. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR

1шт.
