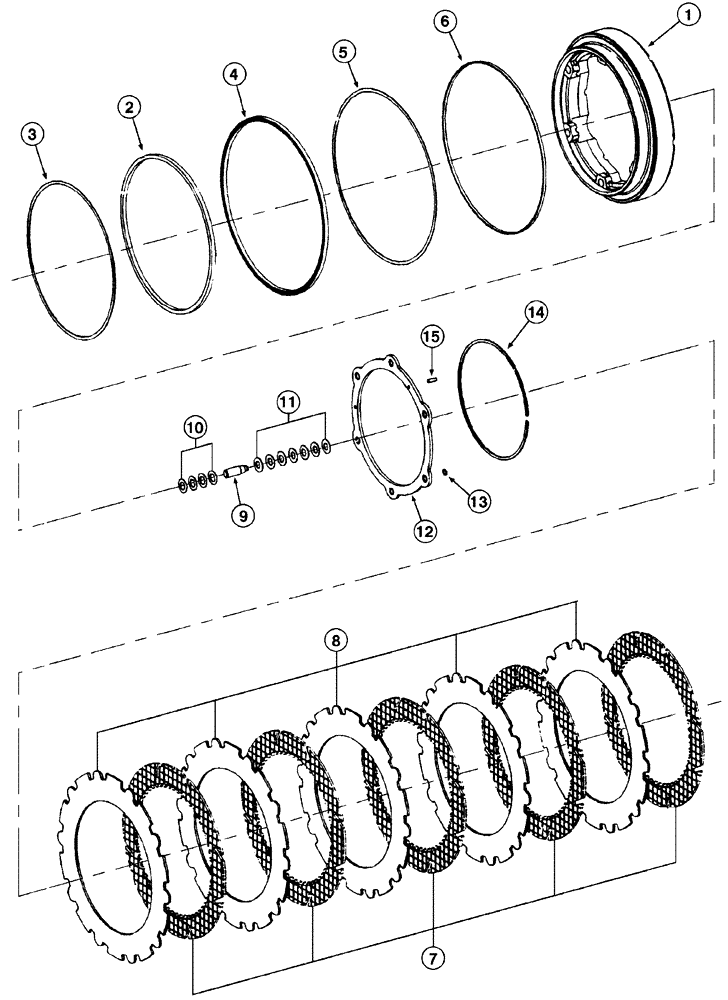

Запчасти Case 621C (06-085C) - AXLE, REAR HUB, DISC BRAKES ASN JEE0123546 (06) - POWER TRAIN

293099A1

AXLE

Consists of: Fig. 6-79 - 6-91D, if used, See Fig. 6-81 - 6-85

1шт.

437381A1R

REMAN-AXLE

KIT, North America only

1шт.

437381A1C

CORE-AXLE

return number

1шт.

437381A1

AXLE

KIT, Consists of: Fig. 6-85B, 1 - 23, 6-85D, 1 - 15

1шт.

1

384314A1

PISTON

brake

2шт.

2

384315A1

SEAL

2шт.

3

384317A1

RING

2шт.

4

384318A1

SEAL

2шт.

5

384319A1

RING

2шт.

6

384321A1

RING

2шт.

7

384322A1

BRAKE DISC

DISC, BRAKE inner

8шт.

8

384323A1

BRAKE PLATE

clutch, outer

8шт.

9

384324A1

PIN

12шт.

10

384325A1

RING

48шт.

11

384326A1

BELLEVILLE WASHER

84шт.

12

384327A1

SHIM

2шт.

13

P0436202H

RETAINER

12шт.

14

384328A1

RING, SNAP

RING SNAP

2шт.

15

932430R1

RIVET

PIN

6шт.
