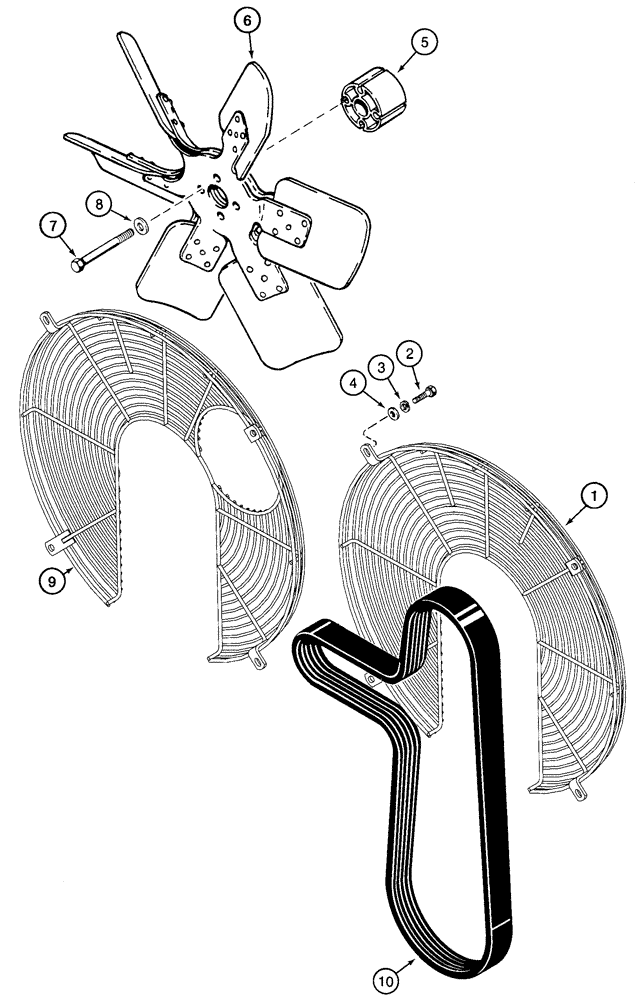

Запчасти Case 621C (02-004) - FAN FAN BELT (02) - ENGINE

1

255748A1

GUARD

without air conditioning, North America only

1шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

3

892-11008

LOCK WASHER,8mm ID

4шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

5

A184524

SPACER

1шт.

6

A189402

FAN

1шт.

7

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

4шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

9

255749A1

GUARD

with air conditioning, North America only

1шт.

10

J911566

V-BELT,27.92mm W x 1612.9mm L, 8 Ribs

North America Only

1шт.

10

J911577

V-BELT,27.92mm W x 1651mm L, 8 Ribs

Europe Only

1шт.
