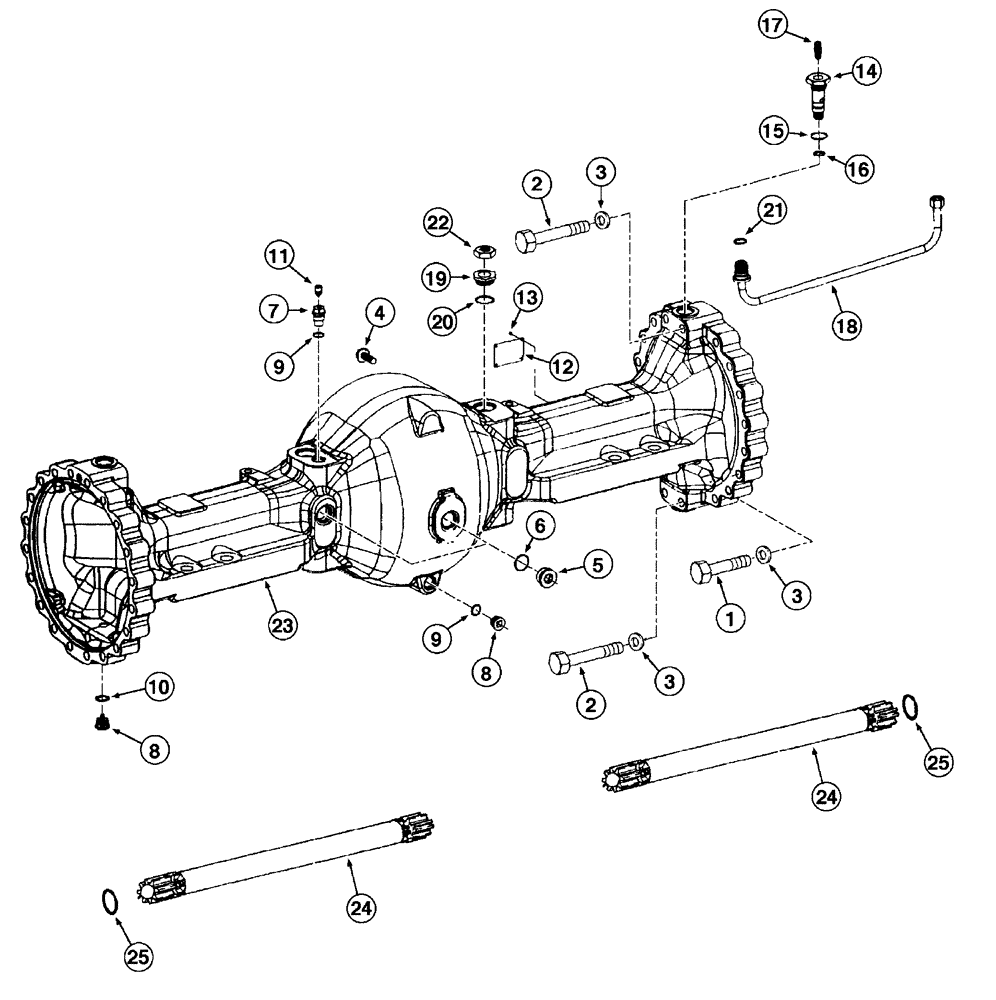

Запчасти Case 621C (06-079A) - AXLE, REAR HOUSING ASN JEE0123546 (06) - POWER TRAIN

293099A1

AXLE

Consists of: Fig. 6-79B - 6-91D, if used, See Fig. 6-79

1шт.

1

514-1107

BOLT,Hex, M18 x 1.5 x 85mm, Cl 10.9

28шт.

2

934957R1

BOLT

M18 x 105

4шт.

3

A48928

WASHER

32шт.

4

A52094

FLANGE BOLT

differential to axle housing

12шт.

5

384280A1

PLUG

3шт.

6

81284C1

O-RING,2.2mm Thk x 33mm ID

3шт.

7

8603256

PLUG

1шт.

8

384281A1

PLUG

3шт.

9

A52097

O-RING,2mm Thk x 21mm ID

2шт.

10

A48812

SEALING RING,M24 x 29 x 1.5

2шт.

11

A48855

VALVE

breather

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE

1шт.

13

932658R1

GROOVED PIN,Rd Hd, M3 x 5

RIVET

4шт.

14

384282A1

FITTING

2шт.

15

81284C1

O-RING,2.2mm Thk x 33mm ID

2шт.

16

384283A1

FITTING

RING

2шт.

17

3222214R1

VALVE

breather

2шт.

18

384284A1

TUBE ASSY.

no longer used; replaced by P/N 87436841

2шт.

18a

87436841

TUBE

Replaces: P/N 384284A1

2шт.

19

384285A1

UNION

FITTING

2шт.

20

A52096

O-RING,2.5mm Thk x 38mm ID

2шт.

21

716582R1

O-RING

2шт.

22

384286A1

NUT

2шт.

23

384287A1

AXLE

HOUSING

1шт.

24

384289A1

AXLE SHAFT

2шт.

25

384290A1

SHIM

2шт.
