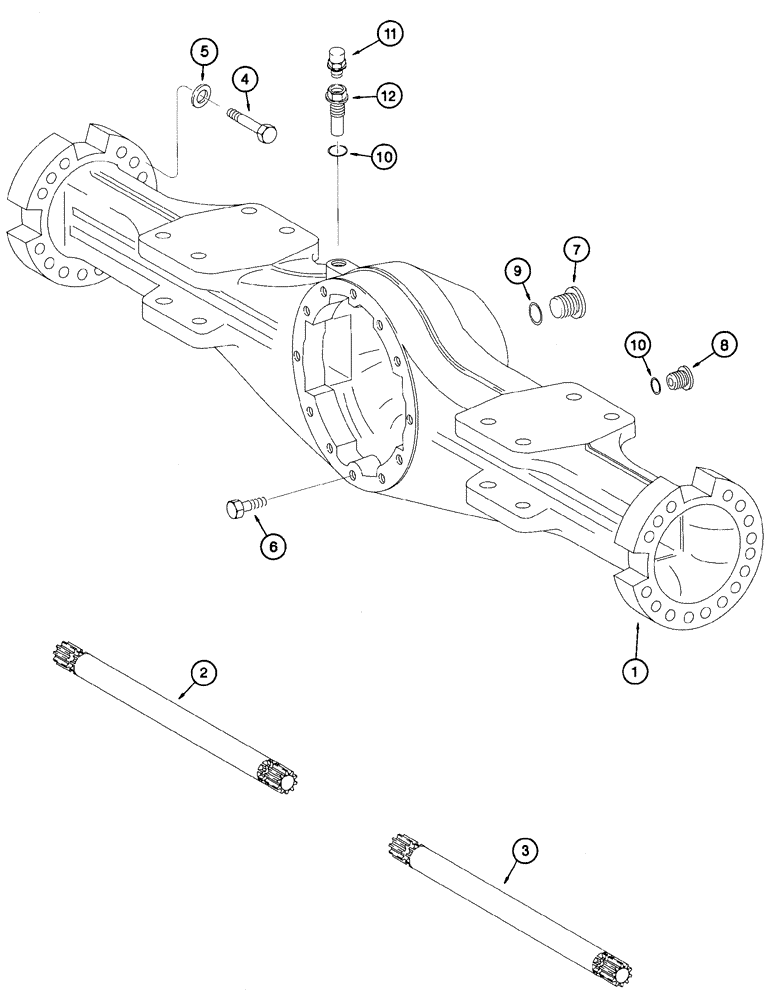

Запчасти Case 621C (06-078) - AXLE, REAR HOUSING BSN JEE0123545 (06) - POWER TRAIN

308662A1

REAR AXLE

Consists of: Fig. 6-79 - 6-91D, if used, See Fig. 6-79B

1шт.

1

308828A1

HOUSING

1шт.

2

121400A1

SHAFT

1006 mm

1шт.

3

121401A1

SHAFT

980 mm

1шт.

4

308829A1

BOLT,Hex, M20 x 1.5 x 75mm, Grade 10.9

special, M20 x 75; 10.9

32шт.

5

119381A1

BEARING WASHER

32шт.

6

A52094

FLANGE BOLT

differential to axle housing

8шт.

6

3404789R1

SCREW

differential to axle housing

4шт.

7

A48791

PLUG

42 mm

1шт.

8

119349A1

PLUG

1шт.

9

A52372

O-RING,2.5mm Thk x 38mm ID

large

1шт.

10

A52097

O-RING,2mm Thk x 21mm ID

small

2шт.

11

8603256

PLUG

special

1шт.

12

A48855

VALVE

breather

1шт.
