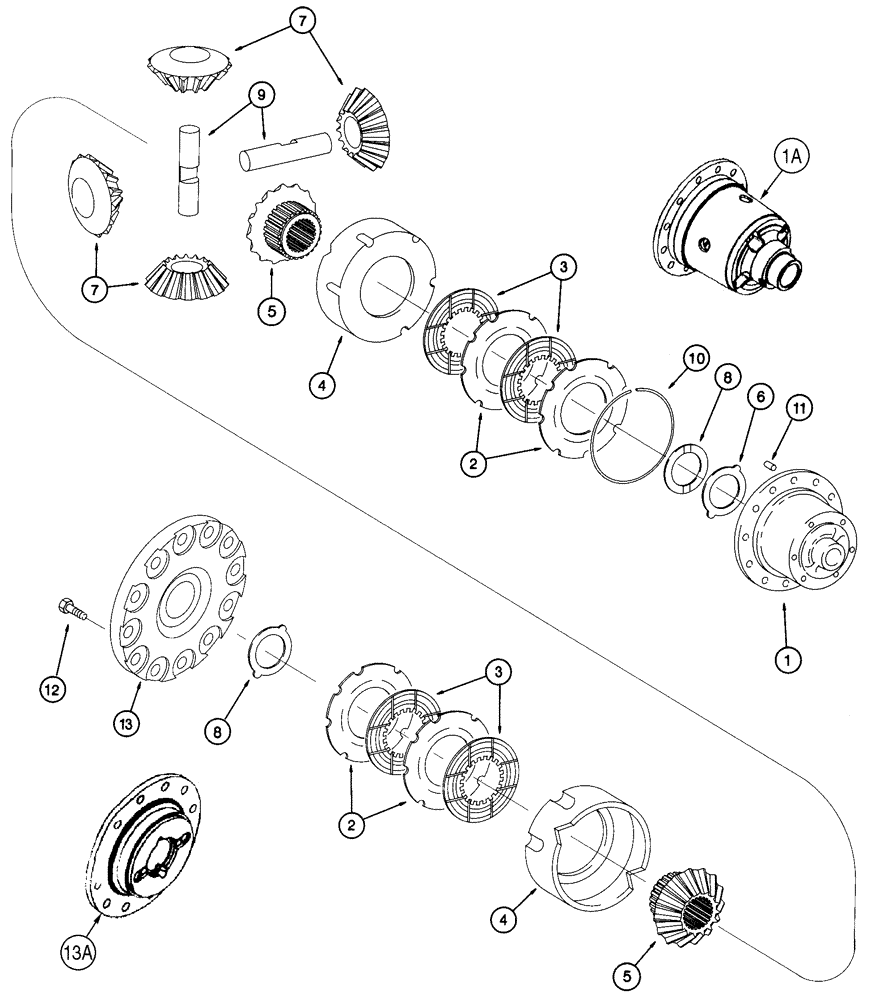

Запчасти Case 621C (06-076) - AXLE, FRONT DIFFERENTIAL (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
308661A1
AXLE HOUSING
front, Consists of: Fig. 6-65 - 6-77, if used, Serial Range: -JEE0123545
1шт.
293098A1
4WD AXLE ASSY
front, Consists of: Fig. 6-65 - 6-77D, if used, Start Serial: JEE0123546
1шт.
336576A1
DIFFERENTIAL
ASSY., Consists of: Fig. 6-73 - 6-77, used with P/N 308661A1
1шт.
384254A1
AXLE DIFFERENTIAL
CARRIER ASSY., Consists of: Fig. 6-73 - 6-77D, used with P/N 293098A1
1шт.
384254A1R
REMAN-AXLE DIFFERENT
REMANUFACTURED CARRIER/AXLE - NA Only
1шт.
384254A1C
CORE-AXLE DIFF w/LTD
CORE-AXLE DIFF, w/LTD SLIP Return Number, CARRIER/AXLE - NA Only
1шт.
177713A1
BODY
DIFFERENTIAL ASSY., Includes: Refs. 1-15, limited slip, used with P/N 308661A1
1шт.
384275A1
AXLE DIFFERENTIAL
DIFFERENTIAL ASSY., Includes: Refs. 1A-13A, limited slip, used with P/N 293098A1
1шт.
1
177714A1
HOUSING
used with P/N 308661A1
1шт.
1a
384274A1
HOUSING
used with P/N 293098A1
1шт.
2
230548A1
THRUST WASHER
WASHER thrust, outer
1шт.
2
230549A1
DISC
PLATE clutch, 2.3 mm, outer
1шт.
2
230550A1
DISC
PLATE clutch, 2.4 mm, outer
1шт.
2
230551A1
DISC
PLATE clutch, 2.5 mm, outer
1шт.
2
384276A1
CLUTCH DISC
CLUTCH DISK PLATE, outer, used with P/N 293098A1
1шт.
3
177732A1
DISC
PLATE clutch, inner
4шт.
4
119337A1
RING, SNAP
RING SNAP
2шт.
5
121395A1
PINION
GEAR, 16T, side
2шт.
6
177717A1
THRUST WASHER
thrust, outer, used with P/N 308661A1
1шт.
6
242180A1
THRUST WASHER
special, outer, used with P/N 293098A1
1шт.
7
119340A1
PINION
GEAR, 11T
4шт.
8
119330A1
THRUST WASHER
thrust, inner
2шт.
9
119338A1
SHAFT
pinion
2шт.
10
119329A1
RING, SNAP
RING SNAP retaining
1шт.
11
119341A1
PIN
12шт.
12
121398A1
SCREW
Housing cover
12шт.
13
177734A1
COVER
used with P/N 308661A1
1шт.
13a
384278A1
COVER
used with P/N 293098A1
1шт.
14
177715A1
SEAL
SEAL, not illustrated, used with P/N 308661A1
6шт.
15
193152A1
BOLT
special, not illustrated, used with P/N 308661A1
6шт.
Выбрано товаров: 30
