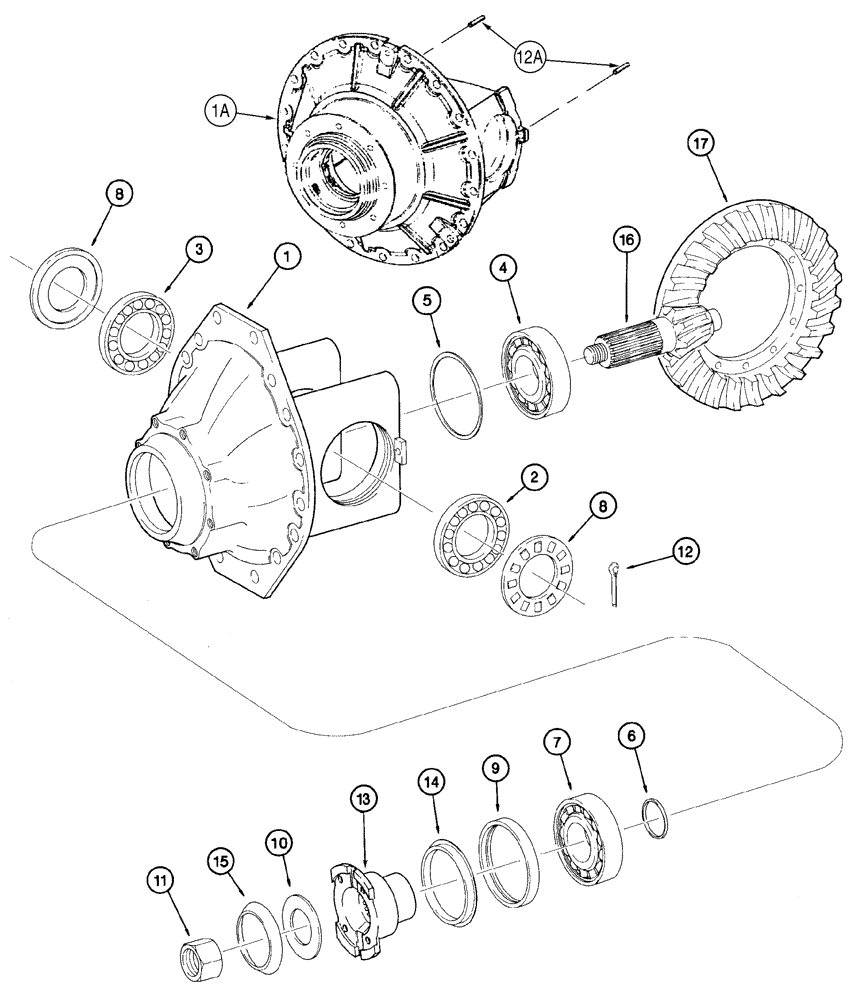

Запчасти Case 621C (06-072) - AXLE, FRONT DIFFERENTIAL CARRIER (06) - POWER TRAIN

308661A1

AXLE HOUSING

front, Consists of: 6-65 - 6-77, if used to Up to S/N JEE0123545

1шт.

293098A1

4WD AXLE ASSY

front, Consists of: 6-65 - 6-77D, if used S/N JEE0123546 &, Start Serial: up

1шт.

336576A1

DIFFERENTIAL

ASSY., Includes: Refs. 1-17, includes limited slip differential, See figures 6-77 - 6-77D, used with 308661A1

1шт.

384254A1

AXLE DIFFERENTIAL

CARRIER ASSY., Includes: Refs. 1-17, includes limited slip differential, See figures 6-77 - 6-77D, used with 293098A1n

1шт.

384254A1R

REMAN-AXLE DIFFERENT

REMANUFACTURED CARRIER ASSY/AXLE - NA Only

1шт.

384254A1C

CORE-AXLE DIFF w/LTD

CORE-AXLE DIFF, w/LTD SLIP Return Number, CARRIER ASSY/AXLE - NA Only

1шт.

1

121323A1

HOUSING

used with P/N 308661A1

1шт.

1a

384262A1

HOUSING

used with P/N 293098A1

1шт.

2

121340A1

ROLLER BEARING

right hand

1шт.

3

100188A1

ROLLER BEARING,65mm ID x 110mm OD x 28mm

left hand

1шт.

4

121324A1

ROLLER BEARING

front

1шт.

5

121328A1

WASHER

SHIM, 0.7 mm

1шт.

5

121329A1

WASHER

SHIM, 0.8 mm

1шт.

5

121331A1

WASHER

SHIM, 0.9 mm

1шт.

5

121334A1

WASHER

SHIM, 1.0 mm

1шт.

5

121342A1

WASHER

SHIM, 1.1 mm, used with P/N 308661A1

1шт.

5

3217664R1

SHIM

1.2 mm

1шт.

5

3217663R1

DISC

SHIM, 1.3 mm

1шт.

5

3217662R1

DISC

SHIM, 1.4 mm

1шт.

5

3217661R1

SHIM

1.5 mm

1шт.

5

3217660R1

SHIM

1.6 mm

1шт.

5

3217659R1

SHIM

1.7 mm

1шт.

5

3217658R1

SHIM

1.8 mm

1шт.

5

3217657R1

SHIM

1.9 mm

1шт.

5

3217656R1

SHIM

2.0 mm

1шт.

6

119296A1

BLOCK

SPACER, 8.8 mm

1шт.

6

898117H1

RING, SNAP

RING SNAP SPACER, 8.7 mm

1шт.

6

898456H1

RING, SNAP

RING SNAP SPACER, 8.6 mm

1шт.

6

898451H1

SNAP RING

SPACER, 8.5 mm

1шт.

6

898446H1

RING, SNAP

RING SNAP SPACER, 8.4 mm

1шт.

6

898441H1

RING, SNAP

RING SNAP SPACER, 8.3 mm

1шт.

6

119301A1

BLOCK

SPACER, 8.9 mm

1шт.

6

119305A1

BLOCK

SPACER, 9.1 mm

1шт.

6

119309A1

BLOCK

SPACER, 9.2 mm

1шт.

6

119310A1

BLOCK

SPACER, 9.3 mm

1шт.

6

119311A1

BLOCK

SPACER, 9.4 mm

1шт.

7

121325A1

ROLLER BEARING

rear

1шт.

8

121343A1

NUT

2шт.

9

119315A2

SEAL

Replaces: P/N 119315A1

1шт.

10

119316A1

WASHER

1шт.

11

119317A1

NUT

Replaces: P/N 121345A1

1шт.

12

119318A1

SPLIT PIN/SAFETY PIN

8 x 45 mm, used with P/N 308661A1

2шт.

12a

838-5636

LOCK PIN,M6 x 36, Slotted

Used with P/N 293098A1

2шт.

13

121346A1

COUPLING FLANGE

input

1шт.

14

119322A1

PROTECTOR

used with P/N 308661A1

1шт.

14

384273A1

SHIELD

used with P/N 293098A1

1шт.

15

119323A1

WASHER

used with P/N 308661A1

1шт.

336581A1

GEAR, BEVEL

BEVEL GEAR Includes: Refs.16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR

1шт.
