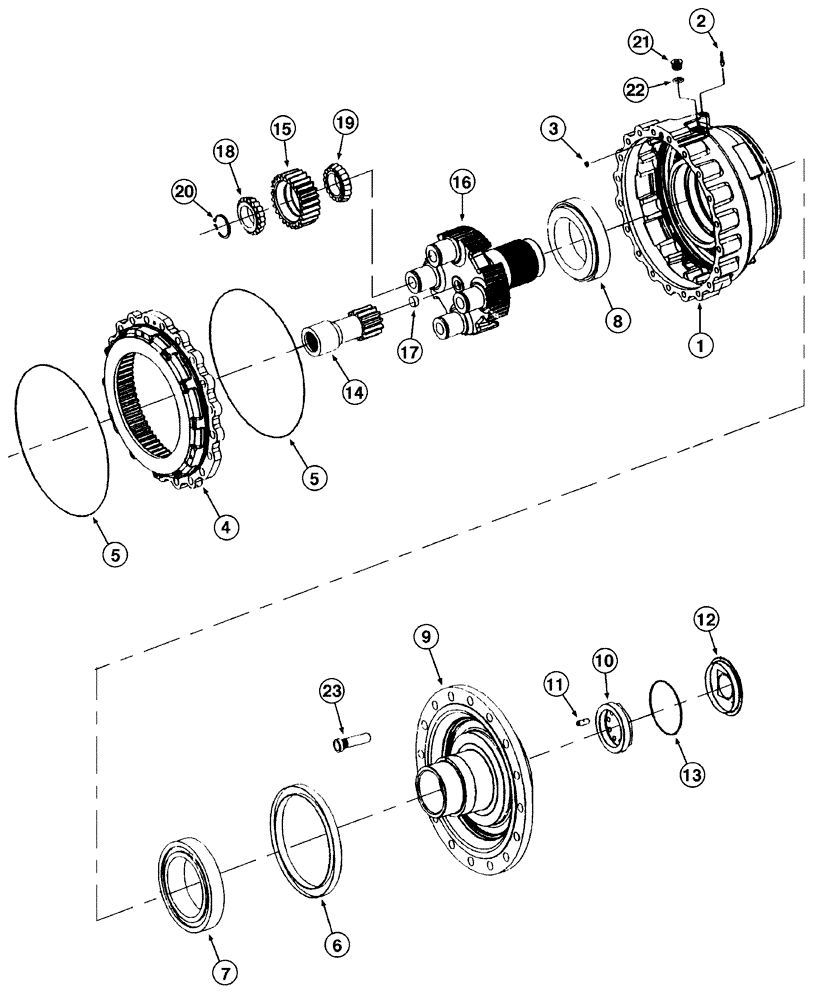

Запчасти Case 621C (06-071A) - AXLE, FRONT HUB, PLANETARY ASN JEE0123546 (06) - POWER TRAIN

293098A1

4WD AXLE ASSY

front, Consists of: Fig. 6-65 - 6-77D, if used, See Fig. 6-67 - 6-71

1шт.

437381A1R

REMAN-AXLE

KIT, North America only

1шт.

437381A1C

CORE-AXLE

return number

1шт.

437381A1

AXLE

Consists of: Fig. 6-71B, 1 - 23, 6-71D, 1 - 15

1шт.

1

384292A1

HOUSING

2шт.

2

384293A1

PLUG

2шт.

3

384294A1

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

4шт.

4

384295A1

GEAR

2шт.

5

384296A1

O-RING

4шт.

6

384297A1

SEAL

2шт.

7

384298A1

TAPERED BEARING

2шт.

8

384299A1

BEARING, ROLLER

2шт.

9

384300A1

FLANGE

SHAFT output

2шт.

10

384301A1

NUT

2шт.

11

384302A1

PIN

2шт.

12

384303A1

COVER

2шт.

13

331982A1

O-RING

2шт.

14

384304A1

GEAR

shaft

2шт.

15

384306A1

GEAR

planetary

8шт.

16

384308A1

CARRIER

planetary

2шт.

17

384309A1

BOLT

STOP

2шт.

18

384310A1

ROLLER BEARING

inner

8шт.

19

384311A1

ROLLER BEARING

inner

8шт.

20

384312A1

RETAINER

RING

8шт.

21

384313A1

PLUG

2шт.

22

A52097

O-RING,2mm Thk x 21mm ID

2шт.

23

123776A1

WHEEL BOLT

24шт.
