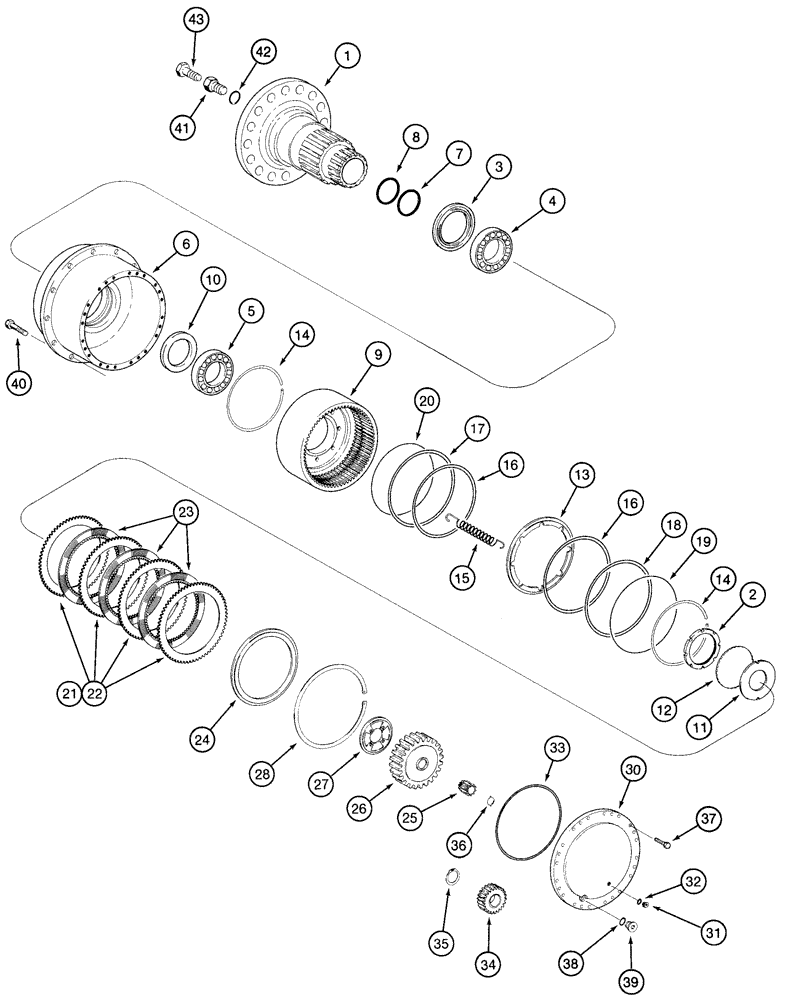

Запчасти Case 621C (06-066) - AXLE, FRONT HUB, DISC BRAKES AND PLANETARY BSN JEE0123545 (06) - POWER TRAIN

308661A1

AXLE HOUSING

Consists of: Fig. 6-65 - 6-77, if used, See Fig. 6-71B - 6-71D

1шт.

242194A1

HUB

SPINDLE ASSY., Includes: Refs.1 and 2, Replaces: P/N 308500A1

2шт.

1

NSS

NOT SOLD SEPARAT

SPINDLE

1шт.

2

119386A1

SLOTTED NUT

Slotted

1шт.

2

242216A1

WASHER

Retaining Ring

1шт.

3

1964236C1

SEAL,136.8mm ID x 141.3mm OD x 13mm Thk

2шт.

4

119390A1

ROLLER BEARING,105mm ID x 160mm OD x 35mm W

roller, inner

2шт.

5

119388A1

ROLLER BEARING,130mm ID x 230mm OD x 43.75mm W

roller, outer

2шт.

6

124229A1

HUB

2шт.

7

119392A1

O-RING,94.4mm ID x 3.1mm Width

spindle, outer

2шт.

8

119393A1

O-RING,100mm ID x 4mm Width

spindle, inner

4шт.

9

119394A1

CYLINDER END CAP

planetary

2шт.

10

119401A1

WASHER

4.7 mm

1шт.

10

119403A1

WASHER

5.3 mm

1шт.

10

119404A1

WASHER

5.35 mm

1шт.

10

119405A1

WASHER

5.4 mm

1шт.

10

119406A1

WASHER

5.45 mm

1шт.

10

119407A1

WASHER

5.5 mm

1шт.

10

119408A1

WASHER

5.55 mm

1шт.

10

119410A1

WASHER

5.6 mm

1шт.

10

119412A1

WASHER

5.65 mm

1шт.

10

119413A1

WASHER

5.7 mm

1шт.

10

119414A1

WASHER

5.75 mm

1шт.

10

119415A1

WASHER

5.8 mm

1шт.

10

119417A1

WASHER

6.06 mm

1шт.

11

119418A1

THRUST WASHER

thrust

2шт.

12

119419A1

WASHER

1шт.

13

119421A1

PISTON

2шт.

14

119422A1

CIRCLIP

retaining

4шт.

15

123735A1

TENSION SPRING

16шт.

16

119425A1

WIPER SEAL

4шт.

17

119426A1

BACK-UP RING

inner

2шт.

18

119427A1

BACK-UP RING

outer

2шт.

19

119428A1

GUIDE RING

outer

2шт.

20

119429A1

GUIDE RING

inner

2шт.

21

119430A1

NOTCHED DISK

PLATE, 4.5 mm, outer clutch

6шт.

22

119431A1

NOTCHED DISK

4.0 mm, wavy

4шт.

22

119430A1

NOTCHED DISK

PLATE, 4.5 mm, outer clutch

4шт.

23

119433A1

DISC

PLATE flat, inner clutch

6шт.

24

119434A1

BLOCK

SHIM

2шт.

25

124194A1

SHAFT

34T

2шт.

26

281725A1

GEAR

CARRIER disc

2шт.

27

242222A1

RING

PLATE

2шт.

28

119438A1

CIRCLIP

2шт.

30

124198A1

CYLINDER END CAP

2шт.

31

119559A1

PLUG

16 x 1.5 mm

2шт.

32

123549A1

O-RING,2mm Thk x 12mm ID, 70 Duro

2шт.

33

119443A1

O-RING,312mm ID x 2.5mm Width

SEAL

2шт.

34

123775A1

PINION

GEAR

6шт.

35

A52147

RING

6шт.

36

119453A1

THRUST WASHER

thrust, 5.0 mm

1шт.

36

119456A1

THRUST WASHER

thrust, 6.0 mm

1шт.

36

119459A1

THRUST WASHER

thrust, 6.3 mm

1шт.

36

119461A1

THRUST WASHER

thrust, 6.5 mm

1шт.

36

119463A1

THRUST WASHER

thrust, 3.3 mm

1шт.

36

119464A1

THRUST WASHER

thrust, 2.9 mm

1шт.

36

119465A1

THRUST WASHER

thrust, 3.5 mm

1шт.

36

119467A1

THRUST WASHER

thrust, 3.7 mm

1шт.

36

119468A1

THRUST WASHER

thrust, 3.9 mm

1шт.

36

119470A1

THRUST WASHER

thrust, 4.1 mm

1шт.

37

A52314

BOLT

14 x 40 mm

48шт.

38

A52372

O-RING,2.5mm Thk x 38mm ID

2шт.

39

119471A1

PLUG

2шт.

40

123776A1

WHEEL BOLT

24шт.

41

123622A1

ADAPTER

2шт.

42

123549A1

O-RING,2mm Thk x 12mm ID, 70 Duro

2шт.

43

3222214R1

VALVE

BREATHER

2шт.
