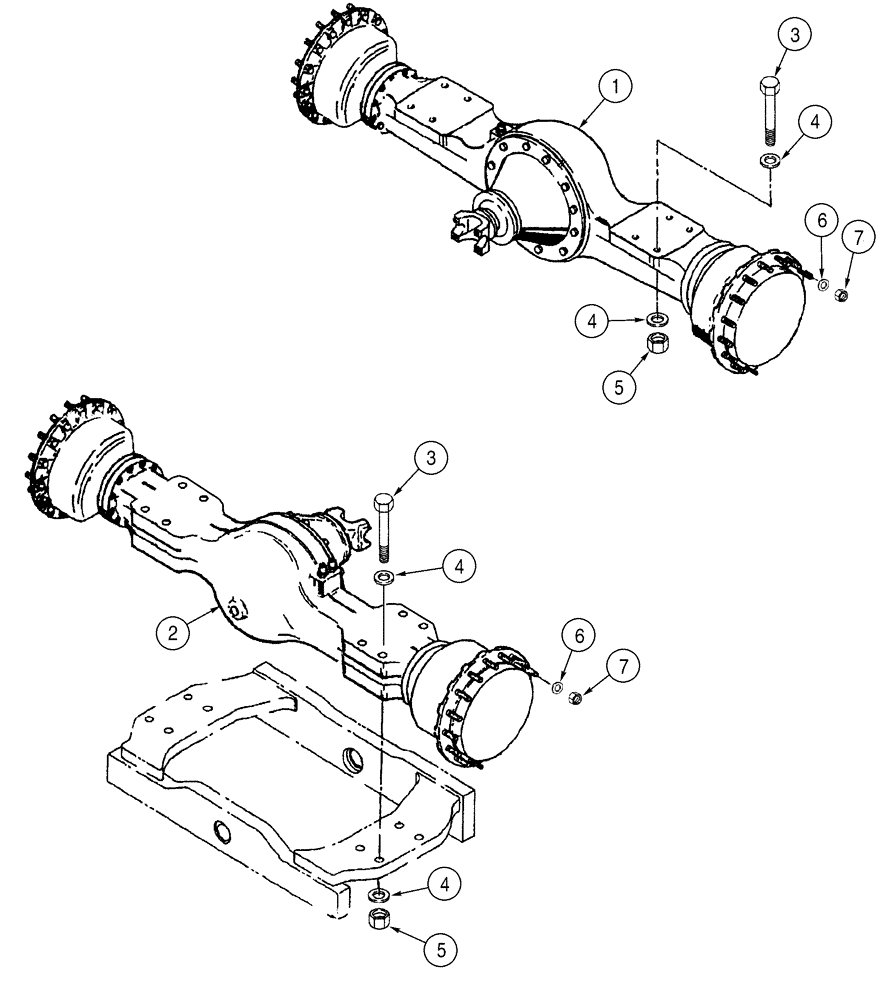

Запчасти Case 621C (06-063) - AXLE MOUNTING ASN JEE0123546 (06) - POWER TRAIN

1

293098A1

4WD AXLE ASSY

Front; See Figures 6-65 - 6-76; If Used

1шт.

2

293099A1

AXLE

Rear; See Figures 6-79 - 6-90; If Used

1шт.

3

328-16160

BOLT,Hex, 1" - 14 x 10", Gr 8

16шт.

4

496-21106

WASHER,1 1/16" x 2" x .209", HDN

32шт.

5

232-24416

NUT,1"-14, GC

16шт.

6

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

48шт.

7

429-1712

NUT,3/4"-16, G8, Hvy

48шт.
