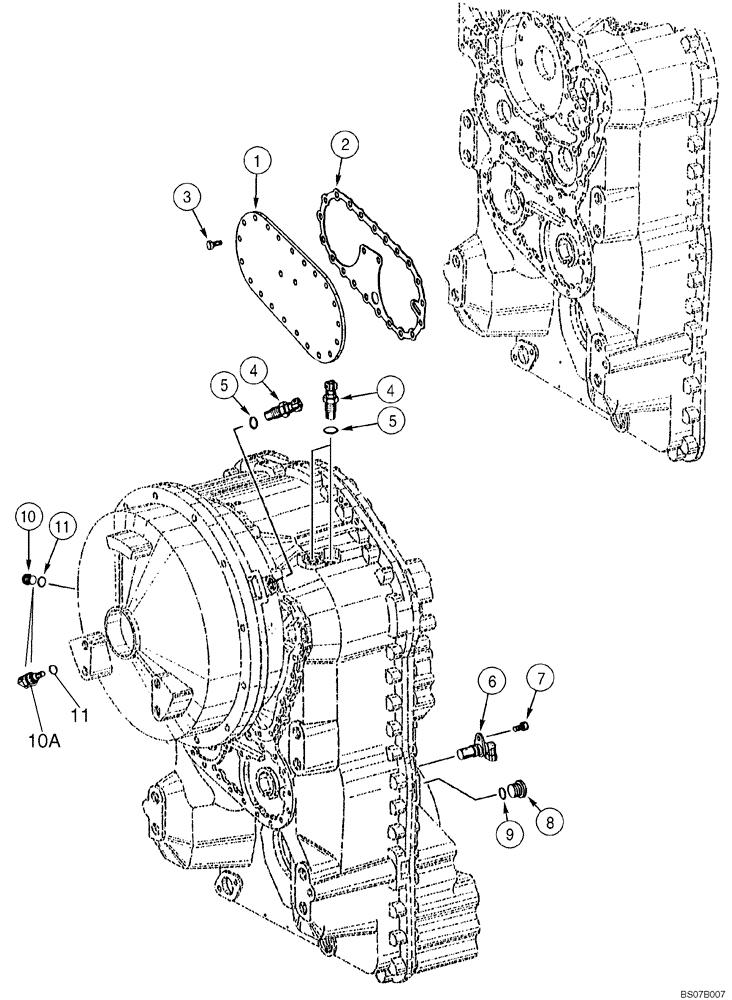

Запчасти Case 621C (06-058) - TRANSMISSION SENSOR, SPEED AND PUMP COVER (06) - POWER TRAIN

196172A1

TRANSMISSION

ASSY., Consists of: Fig. 6-15 - 6-61, 7-3

1шт.

196172A1R

REMAN-TRANSMISSION

621C CASE WHEEL LOADER, ASSY (1/99-)

1шт.

196172A1C

CORE-TRANSMISSION

Return Number

1шт.

318999A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

318999A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

331307A1

COVER

steering pump

1шт.

2

331308A1

GASKET

cover

1шт.

3

331309A1

CAPSCREW,M8 x 18mm

M8 x 18

23шт.

4

331324A1

SENSOR

3шт.

5

S300495

O-RING,2mm Thk x 15mm ID

3шт.

6

331325A1

SENSOR

speed

1шт.

7

331326A1

CAPSCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

1шт.

8

331328A1

PLUG

Includes: Ref. 9

1шт.

9

331329A1

O-RING,2mm Thk x 23mm ID

1шт.

10

331331A1

PLUG

Includes: Ref. 11, If Used

1шт.

10a

387101A1

TEMPERATURE SENDER

Includes: Ref. 11, If Used

1шт.

11

331332A1

O-RING

1шт.
