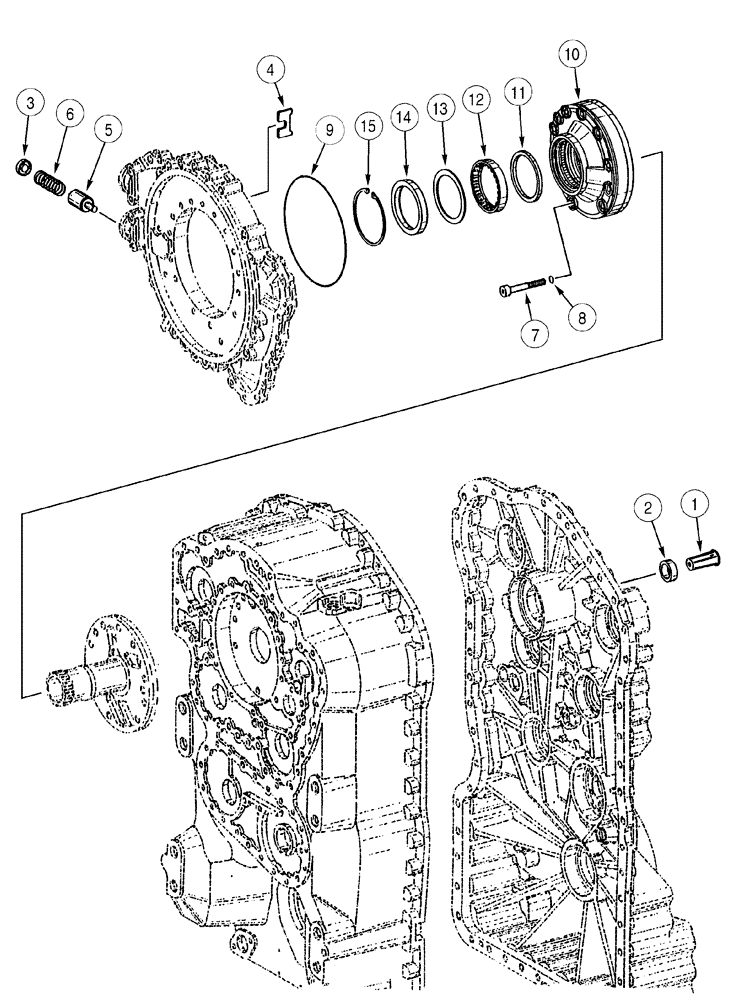

Запчасти Case 621C (06-056) - TRANSMISSION VALVE, REGULATOR AND OIL PUMP (06) - POWER TRAIN

196172A1

TRANSMISSION

ASSY., Consists of: Fig. 6-15 - 6-61, 7-3

1шт.

196172A1R

REMAN-TRANSMISSION

621C CASE WHEEL LOADER, ASSY (1/99-)

1шт.

196172A1C

CORE-TRANSMISSION

Return Number

1шт.

318999A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

318999A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

331017A1

VALVE

regulator

1шт.

2

331018A1

BUSHING

1шт.

3

331019A1

CUP ASSY.

pressure

1шт.

4

331020A1

WASHER

1шт.

5

331021A1

SPOOL

1шт.

6

331022A1

COMPRESSION SPRING

1шт.

7

331294A1

CAPSCREW,Flg, 5/16" - 18 x 2", Gr 8

Includes: Ref. 8

10шт.

8

331295A1

O-RING

10шт.

9

331296A1

O-RING

1шт.

10

331297A1

PUMP, HYDRAULIC

oil pressure

1шт.

11

331298A1

RING

1шт.

12

331300A1

NEEDLE BEARING

1шт.

13

331299A1

SHIM

1шт.

14

331301A1

SEAL

1шт.

15

331302A1

RING, SNAP

RING SNAP

1шт.
