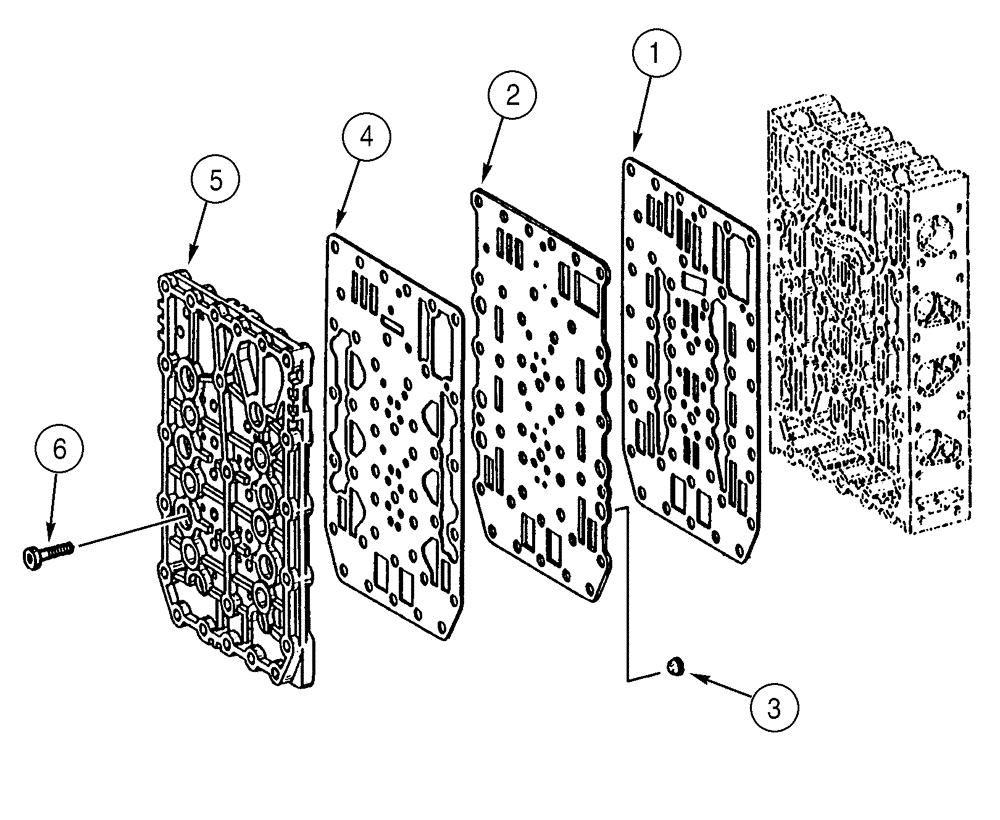

Запчасти Case 621C (06-054) - TRANSMISSION VALVE, CONTROL (06) - POWER TRAIN

196172A1

TRANSMISSION

ASSY., Consists of: Fig. 6-15 - 6-61, 7-3

1шт.

196172A1R

REMAN-TRANSMISSION

621C CASE WHEEL LOADER, ASSY (1/99-)

1шт.

196172A1C

CORE-TRANSMISSION

Return Number

1шт.

318999A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

318999A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

331759A1

SHIFTING UNIT

Consists of: Refs.1-6, also includes: Fig. 6-51, 6-53

1шт.

1

331013A1

GASKET

housing

1шт.

2

330965A1

LARGE PLATE

PLATE, LARGE valve

1шт.

3

330966A1

SCREEN

FILTER

6шт.

4

330967A1

GASKET

housing

1шт.

5

330968A1

LARGE PLATE

PLATE, LARGE distribution

1шт.

6

330969A1

SCREW

18шт.
