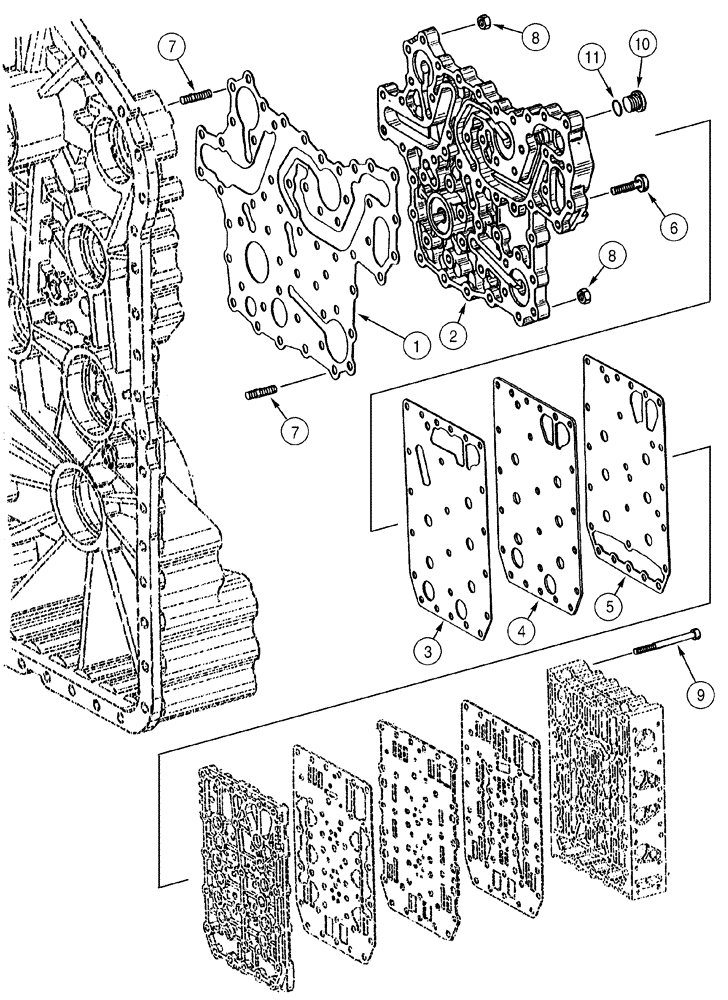

Запчасти Case 621C (06-048) - TRANSMISSION VALVE PLATES (06) - POWER TRAIN

196172A1

TRANSMISSION

ASSY., Consists of: Fig. 6-15 - 6-61, 7-3

1шт.

196172A1R

REMAN-TRANSMISSION

621C CASE WHEEL LOADER, ASSY (1/99-)

1шт.

196172A1C

CORE-TRANSMISSION

Return Number

1шт.

318999A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

318999A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

330922A1

GASKET

1шт.

2

330923A1

LARGE PLATE

PLATE, LARGE if used

1шт.

2

8605663

LARGE PLATE

PLATE, LARGE if used

1шт.

3

330924A1

GASKET

1шт.

4

331987A1

LARGE PLATE

PLATE, LARGE

1шт.

5

331988A1

GASKET

1шт.

6

330808A1

CAPSCREW,Flg, 5/16" - 18 x 5", Gr 8

39шт.

7

330814A1

STUD

M8 x 25

15шт.

8

330816A1

NUT

M8

15шт.

9

330927A1

SCREW

23шт.

10

330928A1

PLUG

Includes: Ref. 11

1шт.

11

330929A1

O-RING,2mm Thk x 13mm ID

1шт.
