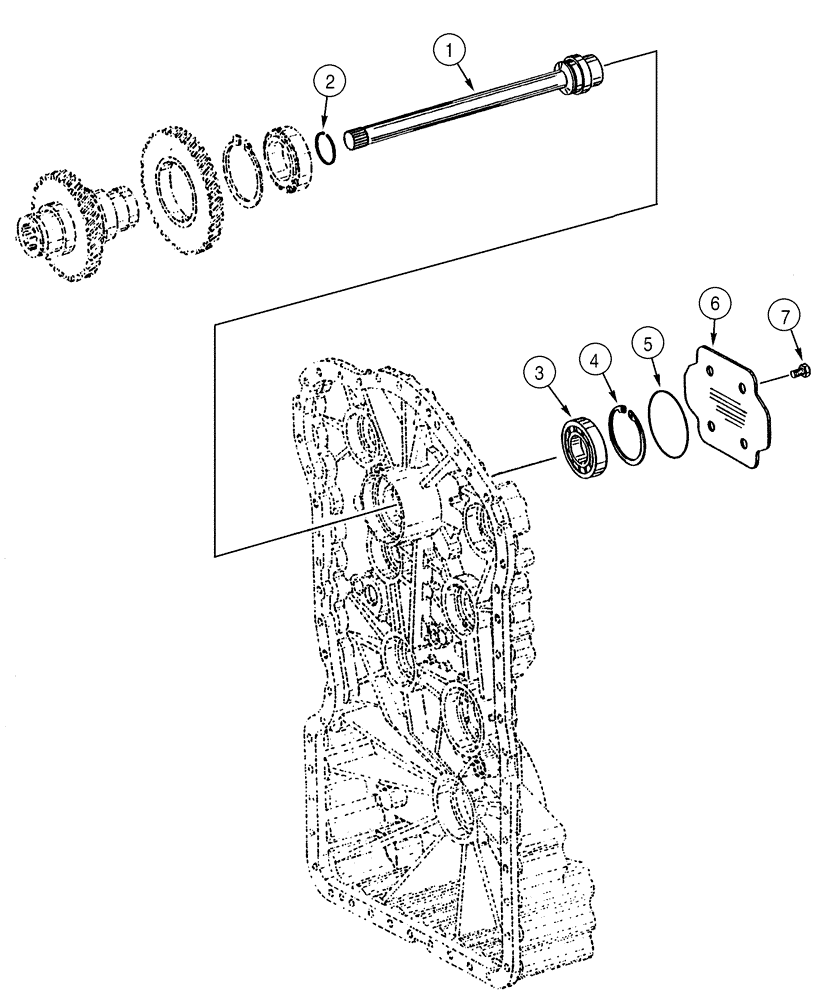

Запчасти Case 621C (06-046) - TRANSMISSION POWER TAKE OFF (06) - POWER TRAIN

196172A1

TRANSMISSION

ASSY., Consists of: Fig. 6-15 - 6-61, 7-3

1шт.

196172A1R

REMAN-TRANSMISSION

621C CASE WHEEL LOADER, ASSY (1/99-)

1шт.

196172A1C

CORE-TRANSMISSION

Return Number

1шт.

318999A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

318999A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

330914A1

SHAFT

PUMP

1шт.

2

330915A1

RING, SNAP

RING SNAP

1шт.

3

330916A1

BEARING, BALL

1шт.

4

330917A1

RING, SNAP

RING SNAP

1шт.

5

330918A1

O-RING,3mm Thk x 104mm ID

1шт.

6

330919A1

COVER

1шт.

7

330788A1

SCREW

M12 x 18

4шт.
