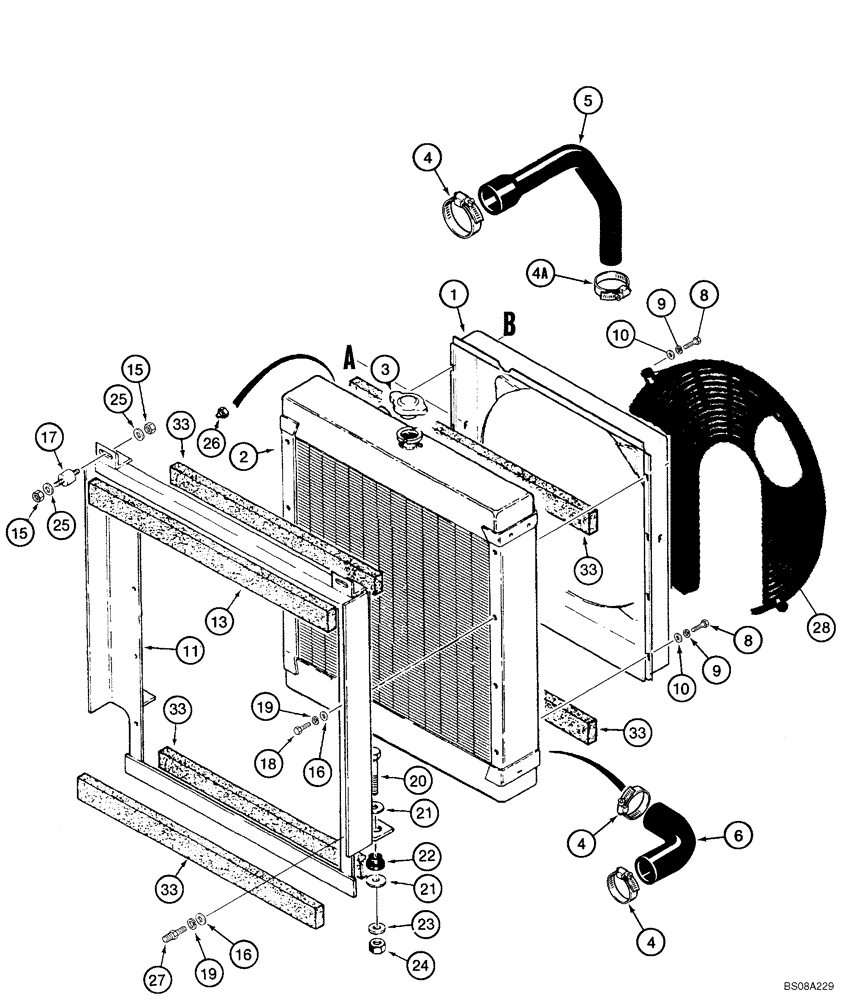

Запчасти Case 621C (02-002A) - RADIATOR MOUNTING, NORTH AMERICA ONLY - LOW NOISE UNITS (02) - ENGINE

1

176020A2

DEFLECTOR

no longer used, Order: P/N 176020A3

1шт.

1

176020A3

DEFLECTOR

Replaces: P/N 176020A2

1шт.

2

300305A1

RADIATOR

no longer used, Order: P/N 346101A1

1шт.

2

346101A1

RADIATOR

Includes Transmisson Cooler,Replaces: P/N 300305A1

1шт.

3

A170241

RADIATOR CAP

15 psi

1шт.

4

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

3шт.

4a

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

1шт.

5

283108A1

RADIATOR HOSE,57.20 mm ID x 400.00 mm, SAE 20R4 CLASS C or D1

1шт.

6

L127973

RADIATOR HOSE,56.80 mm ID x 180.00 mm, SAE 20R4 Class C or D-1

No longer used, Order: P/N 379749A1

1шт.

6

379749A1

RADIATOR HOSE,57.60 mm ID x 398.00 mm, SAE 20R4, CLASS C OR D1, SAE J20

Replaces: P/N L127973

1шт.

8

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

9

892-11008

LOCK WASHER,8mm ID

12шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

No longer used, Order P/N 495-21038

12шт.

10

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32"), Replaces P/N 895-15008

12шт.

11

136386A1

SUPPORT

1шт.

13

L128306

SEALING STRIP,50mm W x 765mm L x 38mm Thk

30-1/8 in, (765 mm)

1шт.

15

131-206

NUT,3/8"-16

4шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

17

L127163

BOLT

2шт.

18

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

7шт.

19

892-11008

LOCK WASHER,8mm ID

8шт.

20

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

21

495-81239

WASHER,17/32" x 2 1/4" x .180"

4шт.

22

L46821

SHOCK ABSORBER

2шт.

23

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

25

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

26

217-86

PLUG,Hex Hd, 1/4"-18, Brass

PT

1шт.

27

292523A1

SPECIAL BOLT

ground

1шт.

28

355346A1

GUARD

FAN, Low Noise Units

1шт.
