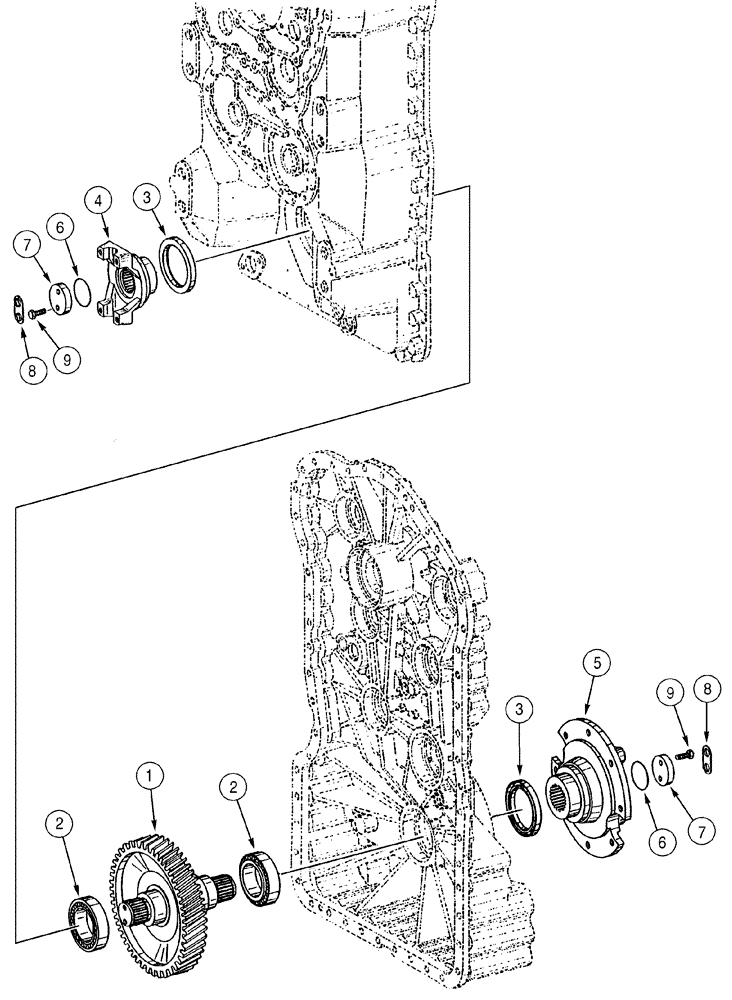

Запчасти Case 621C (06-044) - TRANSMISSION SHAFT, OUTPUT (06) - POWER TRAIN

196172A1

TRANSMISSION

ASSY., Consists of: Fig. 6-15 - 6-61, 7-3

1шт.

196172A1R

REMAN-TRANSMISSION

621C CASE WHEEL LOADER, ASSY (1/99-)

1шт.

196172A1C

CORE-TRANSMISSION

Return Number, Start Serial: `

1шт.

318999A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

318999A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

330855A1

SHAFT

1шт.

2

330796A1

BEARING, ROLLER

2шт.

3

103607A1

SEAL

2шт.

4

330857A1

FLANGE

output, rear

1шт.

5

330868A1

FLANGE

output, for parking brake assembly, See Fig. 7-3

1шт.

6

S301574

O-RING,4mm Thk x 38mm ID

2шт.

7

S301575

STOP

2шт.

8

S301576

LARGE PLATE

PLATE, LARGE

2шт.

9

330856A1

CAPSCREW,Hex, M8 x 25mm

M8 x 25, Replaces: P/N 626-8025

4шт.
