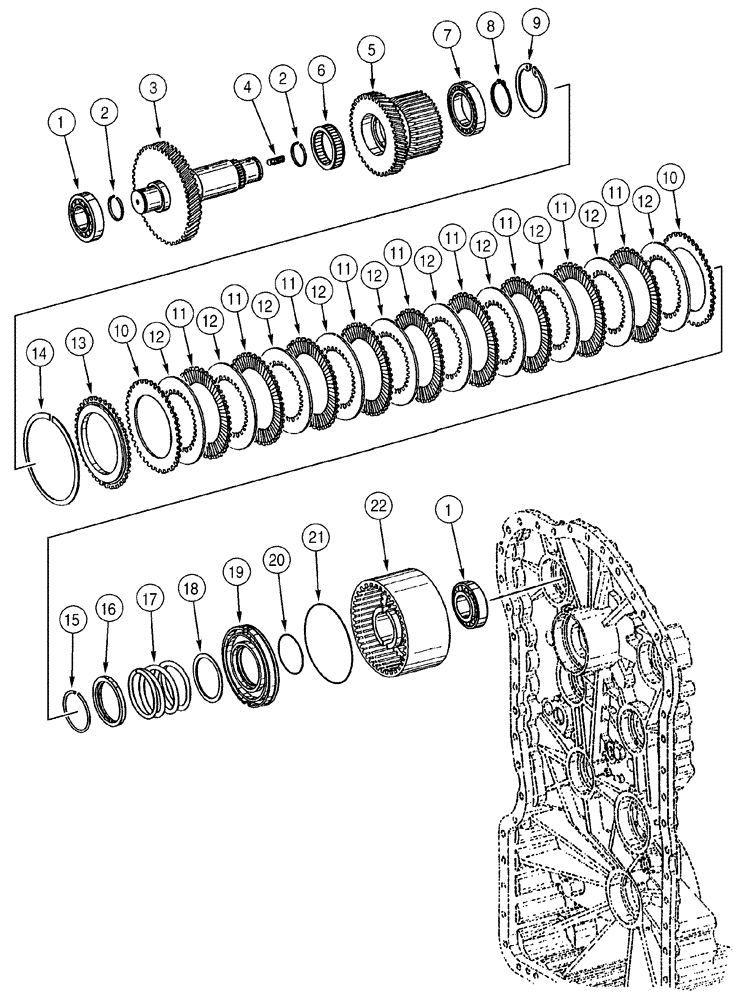

Запчасти Case 621C (06-040) - TRANSMISSION CLUTCH ASSEMBLY, REVERSE (06) - POWER TRAIN

196172A1

TRANSMISSION

ASSY., Consists of: Fig. 6-15 - 6-61, 7-3

1шт.

196172A1R

REMAN-TRANSMISSION

621C CASE WHEEL LOADER, ASSY (1/99-)

1шт.

196172A1C

CORE-TRANSMISSION

Return Number

1шт.

318999A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

318999A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

331411A1

BEARING, ROLLER

2шт.

2

331412A1

RING, SNAP

RING SNAP

2шт.

3

331501A1

SHAFT

1шт.

4

331379A1

STUD

M10 x 16

1шт.

5

331477A1

GEAR, IDLER

GEAR,IDLE

1шт.

6

331478A1

BEARING, ROLLER

1шт.

7

331479A1

BEARING, BALL

1шт.

8

331480A1

RETAINER

1шт.

9

800-2190

SNAP RING,M90, Int

1шт.

10

331386A1

CLUTCH DISC

CLUTCH DISK outer

2шт.

11

331387A1

CLUTCH DISC

CLUTCH DISK outer

9шт.

12

331388A1

CLUTCH DISC

CLUTCH DISK inner

10шт.

13

331389A1

DISC

1шт.

14

331390A1

RING, SNAP

RING SNAP 2.1 mm thick, optional

1шт.

14

331391A1

RING, SNAP

RING SNAP 2.25 mm thick, optional

1шт.

14

331392A1

RING, SNAP

RING SNAP 2.4 mm thick, optional

1шт.

14

331393A1

RING, SNAP

RING SNAP 2.55 mm thick, optional

1шт.

14

331394A1

RING, SNAP

RING SNAP 2.7 mm thick, optional

1шт.

14

331395A1

RING, SNAP

RING SNAP 2.85 mm thick, optional

1шт.

196172A1

TRANSMISSION

ASSY., Consists of: Fig. 6-15 - 6-61, 7-3

1шт.

14

331396A1

RING, SNAP

RING SNAP 3.0 mm thick, optional

1шт.

14

331397A1

RING, SNAP

RING SNAP 3.15 mm thick, optional

1шт.

14

331398A1

RING, SNAP

RING SNAP 3.3 mm thick, optional

1шт.

14

331399A1

RING, SNAP

RING SNAP 3.45 mm thick, optional

1шт.

14

331400A1

RING, SNAP

RING SNAP 3.6 mm thick, optional

1шт.

14

331401A1

RING, SNAP

RING SNAP 3.75 mm thick, optional

1шт.

14

331402A1

RING, SNAP

RING SNAP 3.90 mm thick, optional

1шт.

14

331403A1

RING, SNAP

RING SNAP 4.05 mm thick, optional

1шт.

14

331404A1

RING, SNAP

RING SNAP 4.20 mm thick, optional

1шт.

15

331487A1

RING, SNAP

RING SNAP

1шт.

16

331485A1

RETAINER

1шт.

17

331484A1

COMPRESSION SPRING

1шт.

18

331483A1

WASHER

1шт.

19

331381A1

JACK PISTON

1шт.

20

331382A1

O-RING

1шт.

21

331383A1

O-RING,3.1mm Thk x 144.4mm ID, 75 Duro

1шт.

22

331482A1

HUB

CARRIER disc

1шт.
