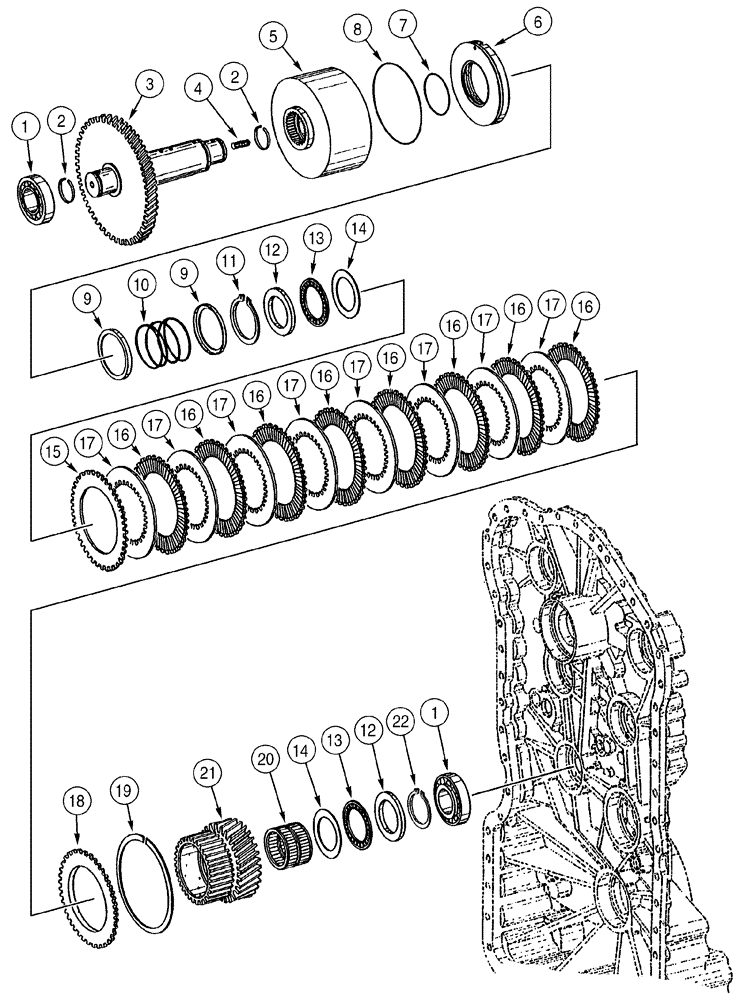

Запчасти Case 621C (06-020) - TRANSMISSION CLUTCH ASSEMBLY, FIRST (06) - POWER TRAIN

196172A1

TRANSMISSION

ASSY., Consists of: Fig. 6-15 - 6-61, 7-3

1шт.

196172A1R

REMAN-TRANSMISSION

621C CASE WHEEL LOADER, ASSY (1/99-)

1шт.

196172A1C

CORE-TRANSMISSION

Return Number

1шт.

318999A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

318999A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

331411A1

BEARING, ROLLER

2шт.

2

331412A1

RING, SNAP

RING SNAP

2шт.

3

331378A1

SHAFT

1шт.

4

331379A1

STUD

M10 x 16

1шт.

5

331380A1

HUB

1шт.

6

331381A1

JACK PISTON

1шт.

7

331382A1

O-RING

1шт.

8

331383A1

O-RING,3.1mm Thk x 144.4mm ID, 75 Duro

1шт.

9

331384A1

GUIDE RING

2шт.

10

331385A1

COMPRESSION SPRING

1шт.

11

933568R1

SNAP RING,M70, Ext

1шт.

12

331405A1

RING, SNAP

RING SNAP

2шт.

13

331406A1

NEEDLE BEARING CAGE

2шт.

14

331407A1

WASHER

2шт.

15

331386A1

CLUTCH DISC

CLUTCH DISK outer

1шт.

16

331387A1

CLUTCH DISC

CLUTCH DISK outer

8шт.

17

331388A1

CLUTCH DISC

CLUTCH DISK inner

8шт.

18

331389A1

DISC

1шт.

19

331390A1

RING, SNAP

RING SNAP 2.1 mm thick, optional

1шт.

19

331391A1

RING, SNAP

RING SNAP 2.25 mm thick, optional

1шт.

19

331392A1

RING, SNAP

RING SNAP 2.4 mm thick, optional

1шт.

196172A1

TRANSMISSION

Consists of: Fig. 6-15 - 6-61, 7-3

1шт.

19

331393A1

RING, SNAP

RING SNAP 2.55 mm thick, optional

1шт.

19

331394A1

RING, SNAP

RING SNAP 2.7 mm thick, optional

1шт.

19

331395A1

RING, SNAP

RING SNAP 2.85 mm thick, optional

1шт.

19

331396A1

RING, SNAP

RING SNAP 3.0 mm thick, optional

1шт.

19

331397A1

RING, SNAP

RING SNAP 3.15 mm thick, optional

1шт.

19

331398A1

RING, SNAP

RING SNAP 3.3 mm thick, optional

1шт.

19

331399A1

RING, SNAP

RING SNAP 3.45 mm thick, optional

1шт.

19

331400A1

RING, SNAP

RING SNAP 3.6 mm thick, optional

1шт.

19

331401A1

RING, SNAP

RING SNAP 3.75 mm thick, optional

1шт.

19

331402A1

RING, SNAP

RING SNAP 3.90 mm thick, optional

1шт.

19

331403A1

RING, SNAP

RING SNAP 4.05 mm thick, optional

1шт.

19

331404A1

RING, SNAP

RING SNAP 4.20 mm thick, optional

1шт.

20

331408A1

NEEDLE BEARING CAGE

1шт.

21

331409A1

GEAR, IDLER

GEAR,IDLE

1шт.

22

331410A1

RETAINER

RING snap

1шт.
