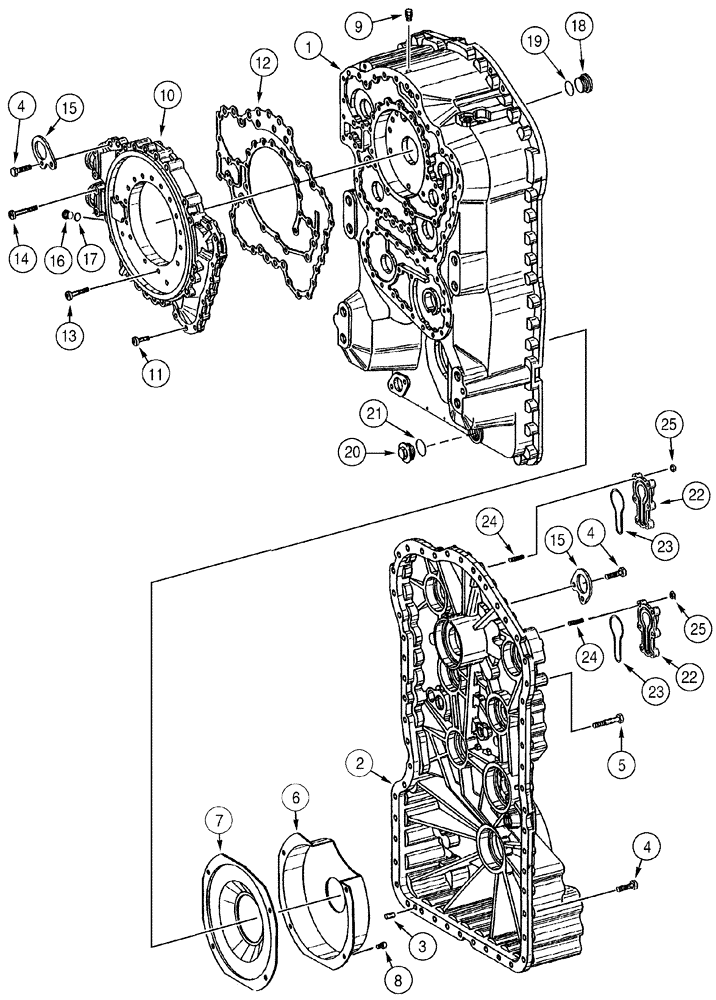

Запчасти Case 621C (06-016) - TRANSMISSION ASSEMBLY HOUSING (06) - POWER TRAIN

196172A1

TRANSMISSION

ASSY., Consists of: Fig. 6-15 - 6-61, 7-3

1шт.

196172A1R

REMAN-TRANSMISSION

621C CASE WHEEL LOADER, ASSY (1/99-)

1шт.

196172A1C

CORE-TRANSMISSION

Return Number

1шт.

318999A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

318999A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

330800A1

HOUSING

rear

1шт.

2

330801A1

HOUSING

front

1шт.

3

932659R1

DOWEL,M10 x 20

2шт.

4

330802A1

CAPSCREW,Hex, M10 x 40mm

M10 x 40, no longer available, Order: P/N 331689A1

46шт.

4

331689A1

CAPSCREW,M10 x 40mm

M10 x 65, Replaces: P/N 330802A1

46шт.

5

330803A1

CAPSCREW,Hex, M10 x 65mm

M10 x 65

7шт.

6

330804A1

SCREEN

COVER gear

1шт.

7

330805A1

SCREEN

PLATE

1шт.

8

330806A1

CAPSCREW,M8 x 12mm

4шт.

9

N14704

BREATHER

1шт.

10

330807A1

HOUSING

oil supply

1шт.

11

330808A1

CAPSCREW,Flg, 5/16" - 18 x 5", Gr 8

15шт.

12

330809A1

GASKET

SEAL

1шт.

13

330810A1

CAPSCREW,M8 x 14mm

21шт.

14

330811A1

CAPSCREW,Flg, 5/16" - 18 x 5 1/2", Gr 8

4шт.

15

330817A1

LARGE PLATE

PLATE, LARGE

2шт.

16

E135075

PLUG

Includes: Ref. 17

1шт.

17

1968430C1

O-RING

1шт.

18

330818A1

PLUG

Includes: Ref. 19

1шт.

19

330819A1

O-RING

1шт.

20

330820A1

PLUG

Includes: Ref. 21

1шт.

21

330819A1

O-RING

1шт.

22

330812A1

COVER

Includes: Ref. 23

2шт.

23

330813A1

O-RING

2шт.

24

330814A1

STUD

M8 x 25

12шт.

25

330816A1

NUT

M8

12шт.
