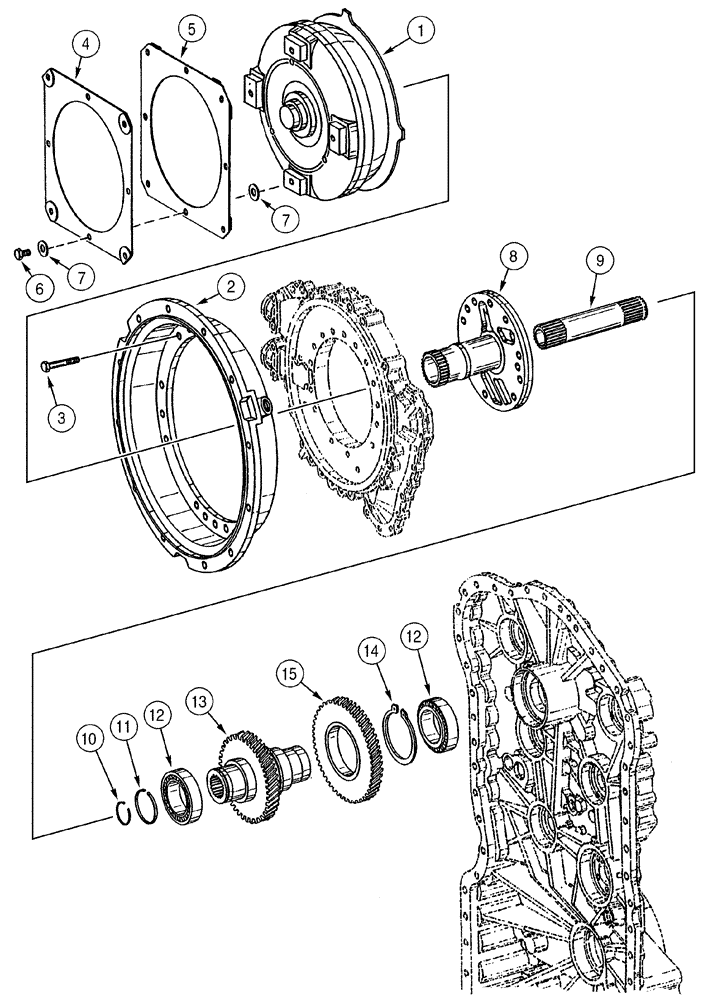

Запчасти Case 621C (06-014) - TRANSMISSION CONVERTER, COVER AND INPUT SHAFT (06) - POWER TRAIN

196172A1

TRANSMISSION

ASSY., Consists of: Fig. 6-15 - 6-61, 7-3

1шт.

196172A1R

REMAN-TRANSMISSION

621C CASE WHEEL LOADER, ASSY (1/99-)

1шт.

196172A1C

CORE-TRANSMISSION

Return Number

1шт.

318999A1R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

318999A1C

CORE-TRANSMISSION

Return number

1шт.

1

330790A1

CONVERTER

1шт.

1

87708770R

REMAN-TORQUE CONVERT

ER Remanufactured

1шт.

1

87708770C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number

1шт.

2

330783A1

CONVERTER

HOUSING

1шт.

3

330784A1

CAPSCREW,Hex, M10 x 65mm

M10 x 65

18шт.

4

330785A1

DIAPHRAGM

PLATE

1шт.

5

330786A1

DIAPHRAGM

PLATE

1шт.

6

330788A1

SCREW

M12 x 18

4шт.

7

330789A1

WASHER

8шт.

8

330799A1

SHAFT

1шт.

9

330792A1

SHAFT

1шт.

10

330793A1

SNAP RING

1шт.

11

330798A1

RING

retaining

1шт.

12

330796A1

BEARING, ROLLER

2шт.

13

330791A1

SHAFT

input

1шт.

14

330795A1

RING

snap

1шт.

15

330794A1

GEAR

input

1шт.
