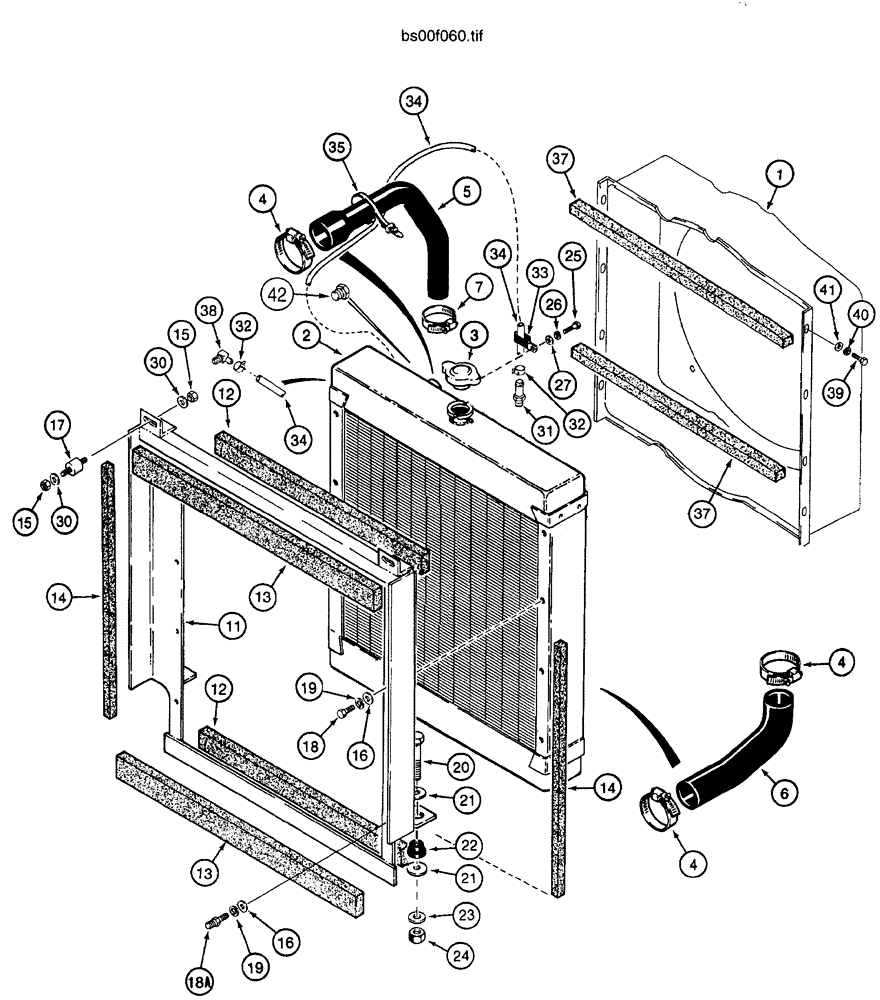

Запчасти Case 621C (02-002) - RADIATOR MOUNTING, NORTH AMERICA ONLY (02) - ENGINE

1

255544A1

DEFLECTOR

1шт.

2

292369A1

RADIATOR

5 row, standard

1шт.

2

253146A1

RADIATOR

4 row, armor core, optional, no longer used

1шт.

3

A170241

RADIATOR CAP

15 psi

1шт.

4

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

3шт.

5

L119052

RADIATOR HOSE

1-3/4 in, (45 mm), ID

1шт.

6

L119053

RADIATOR HOSE,57.20 mm ID x 345.00 mm, SAE 20R4 Class C or D-1

1шт.

7

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

1шт.

11

110920A1

SUPPORT

1шт.

12

L127665

SEAL

upper and lower support, 26-5/8 in, (676 mm)

2шт.

13

L128306

SEALING STRIP,50mm W x 765mm L x 38mm Thk

upper and lower support, 30-1/8 in, (765 mm)

2шт.

14

L127666

SEALING STRIP,25mm W x 787mm L x 25mm Thk

side support, 31 in, (787 mm)

2шт.

15

131-206

NUT,3/8"-16

4шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

17

L127163

BOLT

MOUNTING radiator support

2шт.

18

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

7шт.

18a

292523A1

SPECIAL BOLT

ground

1шт.

19

892-11008

LOCK WASHER,8mm ID

8шт.

20

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

21

495-81239

WASHER,17/32" x 2 1/4" x .180"

4шт.

22

L46821

SHOCK ABSORBER

BUSHING

2шт.

23

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

26

892-11008

LOCK WASHER,8mm ID

2шт.

27

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If used

2шт.

30

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

31

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

If used

1шт.

32

1954736C1

HOSE CLAMP,#24

If used

2шт.

33

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

Attaches to fan guard, if used

2шт.

34

31-1293

HOSE,0.63" ID x 55.00"

5/8 ID x 57 in, cut from P/N 97252CX, if used

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, retaining, if used

1шт.

37

120112A1

INSULATOR,30mm W x 725mm L x 10mm Thk

2шт.

38

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

39

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Shroud to Radiator

8шт.

40

892-11008

LOCK WASHER,8mm ID

8шт.

41

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

No longer used, Order P/N 495-21038

8шт.

41

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32"), Replaces P/N 895-15008

8шт.

42

217-86

PLUG,Hex Hd, 1/4"-18, Brass

PT, if used

1шт.
